Faculty of Chemical and Materials Engineering, Shahrood University of Technology, Shahrood, Iran.
Sci Rep. 2022 Oct 21;12(1):17681. doi: 10.1038/s41598-022-22518-0.

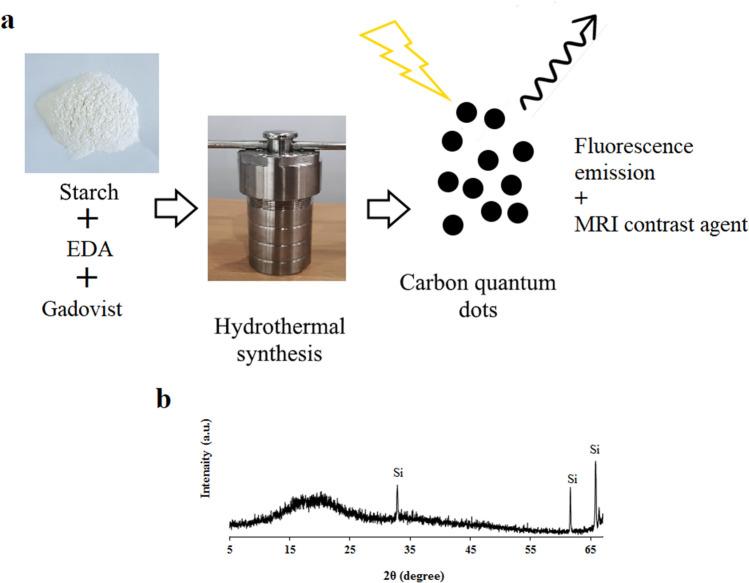

In this research passivated gadolinium-doped carbon quantum dots (Gd-doped CQDs) were synthesized from starch by a hydrothermal method. The X-ray diffraction (XRD) pattern of the Gd-doped CQDs showed the formation of highly amorphous carbon. The Fourier transform infrared spectroscopy (FTIR) results suggested that the CQDs are functionalized with C-N and N-H bonds. The synthesized CQDs with a size distribution of 2-8 nm have an absorption peak at 271 nm in UV-Visible spectroscopy (UV-Vis). The photoluminescence (PL) in CQDs was dependent on the excitation wavelength. The QY of the synthesized CQDs was calculated to be 13.2%. The Gd-doped CQDs exhibited sustained PL in ionic solutions with different ionic strengths and different temperatures up to 65 °C. Fluorescence imaging on mouse C/connective tissue-L929 cells confirmed that Gd-doped CQDs could be well distributed over the cytoplasm. The magnetic resonance imaging (MRI) showed that the Gd-doped CQDs have extremely high longitudinal and transverse relaxivity values of as high as 218.28 mM s and 364.68 mM s. The synthesized Gd-doped CQDs are promising candidates as multifunctional imaging probes and MRI contrast agents in biomedical diagnosis and brain mapping applications.
在这项研究中,通过水热法从淀粉中合成了钝化的掺钆碳量子点(Gd 掺杂 CQDs)。Gd 掺杂 CQDs 的 X 射线衍射(XRD)图谱表明形成了高度非晶态碳。傅里叶变换红外光谱(FTIR)结果表明,CQDs 具有 C-N 和 N-H 键官能化。合成的 CQDs 具有 2-8nm 的尺寸分布,在紫外可见光谱(UV-Vis)中在 271nm 处具有吸收峰。CQDs 的光致发光(PL)取决于激发波长。合成的 CQDs 的 QY 计算为 13.2%。Gd 掺杂 CQDs 在不同离子强度和不同温度的离子溶液中表现出持续的 PL,最高可达 65°C。对小鼠 C/结缔组织-L929 细胞的荧光成像证实,Gd 掺杂 CQDs 可以很好地分布在细胞质中。磁共振成像(MRI)表明,Gd 掺杂 CQDs 的纵向和横向弛豫率值极高,分别高达 218.28mM·s 和 364.68mM·s。合成的 Gd 掺杂 CQDs 有望成为多功能成像探针和 MRI 造影剂,用于生物医学诊断和脑图谱应用。
