College of Biotechnology & Food Science, Tianjin University of Commerce, Tianjin 300134, China.
Tianjin Key Laboratory of Food Biotechnology, Tianjin 300134, China.
Biosensors (Basel). 2022 Oct 17;12(10):888. doi: 10.3390/bios12100888.

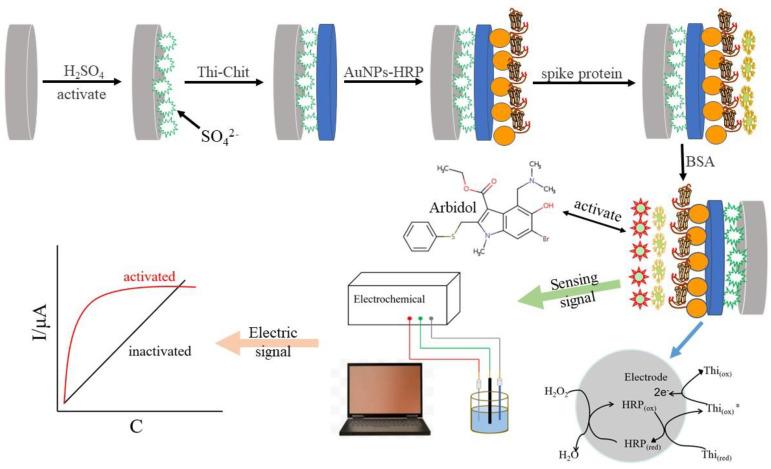

In March 2020, the World Health Organization (WHO) declared COVID-19 a pandemic, and the spike protein has been reported to be an important drug target for anti-COVID-19 treatment. As such, in this study, we successfully developed a novel electrochemical receptor biosensor by immobilizing the SARS-CoV-2 spike protein and using AuNPs-HRP as an electrochemical signal amplification system. Moreover, the time-current method was used to quantify seven antiviral drug compounds, such as arbidol and chloroquine diphosphate. The results show that the spike protein and the drugs are linearly correlated within a certain concentration range and that the detection sensitivity of the sensor is extremely high. In the low concentration range of linear response, the kinetics of receptor-ligand interactions are similar to that of an enzymatic reaction. Among the investigated drug molecules, bromhexine exhibits the smallest Ka value, and thus, is most sensitively detected by the sensor. Hydroxychloroquine exhibits the largest Ka value. Molecular docking simulations of the spike protein with six small-molecule drugs show that residues of this protein, such as Asp, Trp, Asn, and Gln, form hydrogen bonds with the -OH or -NH groups on the branched chains of small-molecule drugs. The electrochemical receptor biosensor can directly quantify the interaction between the spike protein and drugs such as abidor and hydroxychloroquine and perform kinetic studies with a limit of detection 3.3 × 10 mol/L, which provides a new research method and idea for receptor-ligand interactions and pharmacodynamic evaluation.
2020 年 3 月,世界卫生组织(WHO)宣布 COVID-19 为大流行疾病,刺突蛋白已被报道为抗 COVID-19 治疗的重要药物靶点。因此,在这项研究中,我们通过固定 SARS-CoV-2 刺突蛋白并使用 AuNPs-HRP 作为电化学信号放大系统,成功开发了一种新型电化学受体生物传感器。此外,我们还使用时间-电流法来定量七种抗病毒药物化合物,如阿比多尔和磷酸氯喹。结果表明,刺突蛋白和药物在一定浓度范围内呈线性相关,并且传感器的检测灵敏度极高。在线性响应的低浓度范围内,受体-配体相互作用的动力学类似于酶反应。在所研究的药物分子中,溴己新表现出最小的 Ka 值,因此被传感器检测到的灵敏度最高。羟氯喹表现出最大的 Ka 值。对刺突蛋白与六种小分子药物的分子对接模拟表明,该蛋白的残基,如 Asp、Trp、Asn 和 Gln,与小分子药物支链上的-OH 或-NH 基团形成氢键。电化学受体生物传感器可以直接定量刺突蛋白与阿比多尔和羟氯喹等药物的相互作用,并进行动力学研究,检测限为 3.3×10^-9 mol/L,为受体-配体相互作用和药效评估提供了新的研究方法和思路。
