Department of Gastroenterology, Changhai Hospital, Shanghai 200433, China.
Qingdao Medcare Digital Engineering Co. Ltd., Qingdao Medcare Digital Engineering Co. Ltd., Qingdao 26600, Shandong Province, China.
World J Gastroenterol. 2022 Oct 7;28(37):5483-5493. doi: 10.3748/wjg.v28.i37.5483.
Upper gastrointestinal endoscopy is critical for esophageal squamous cell carcinoma (ESCC) detection; however, endoscopists require long-term training to avoid missing superficial lesions.
To develop a deep learning computer-assisted diagnosis (CAD) system for endoscopic detection of superficial ESCC and investigate its application value.

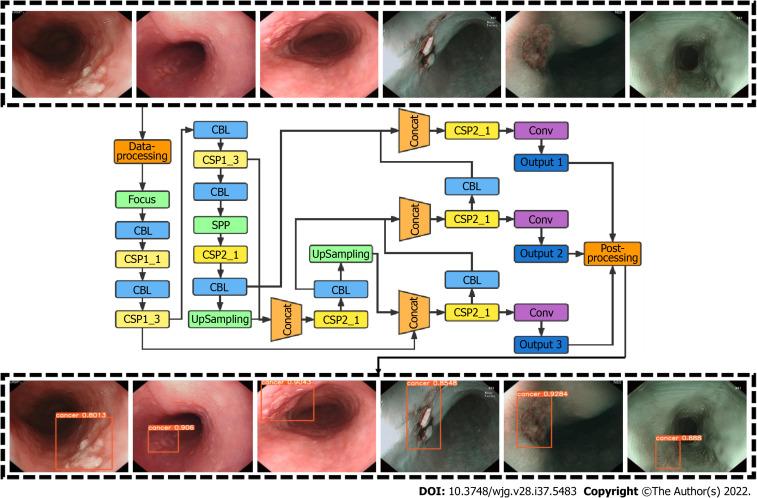

We configured the CAD system for white-light and narrow-band imaging modes based on the YOLO v5 algorithm. A total of 4447 images from 837 patients and 1695 images from 323 patients were included in the training and testing datasets, respectively. Two experts and two non-expert endoscopists reviewed the testing dataset independently and with computer assistance. The diagnostic performance was evaluated in terms of the area under the receiver operating characteristic curve, accuracy, sensitivity, and specificity.

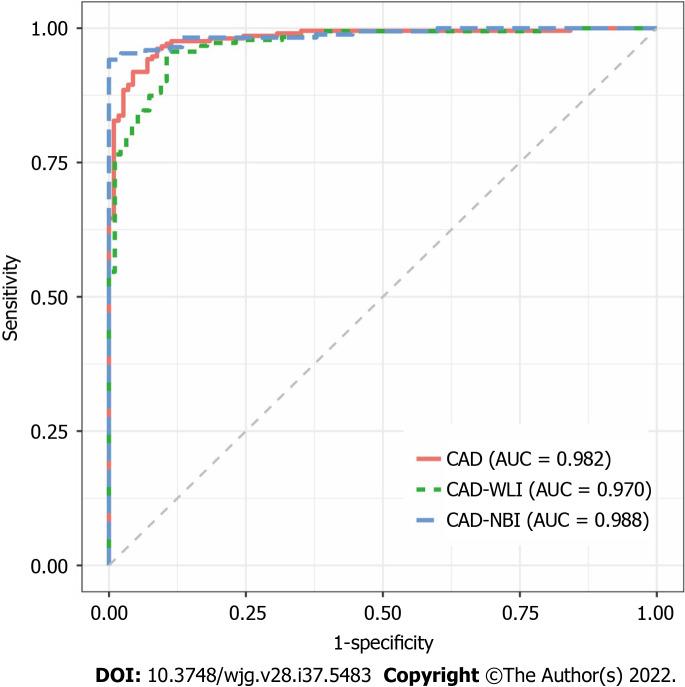

The area under the receiver operating characteristics curve, accuracy, sensitivity, and specificity of the CAD system were 0.982 [95% confidence interval (CI): 0.969-0.994], 92.9% (95%CI: 89.5%-95.2%), 91.9% (95%CI: 87.4%-94.9%), and 94.7% (95%CI: 89.0%-97.6%), respectively. The accuracy of CAD was significantly higher than that of non-expert endoscopists (78.3%, < 0.001 compared with CAD) and comparable to that of expert endoscopists (91.0%, = 0.129 compared with CAD). After referring to the CAD results, the accuracy of the non-expert endoscopists significantly improved (88.2% 78.3%, < 0.001). Lesions with Paris classification type 0-IIb were more likely to be inaccurately identified by the CAD system.
The diagnostic performance of the CAD system is promising and may assist in improving detectability, particularly for inexperienced endoscopists.
上消化道内镜检查对于食管鳞状细胞癌(ESCC)的检测至关重要;然而,内镜医师需要经过长期培训才能避免遗漏浅表病变。
开发一种用于内镜检测浅表 ESCC 的深度学习计算机辅助诊断(CAD)系统,并探讨其应用价值。
我们基于 YOLO v5 算法为白光和窄带成像模式配置了 CAD 系统。训练数据集和测试数据集分别纳入了 837 例患者的 4447 张图像和 323 例患者的 1695 张图像。两名专家和两名非专家内镜医师分别独立和借助计算机辅助对测试数据集进行了审查。通过受试者工作特征曲线下面积、准确性、敏感度和特异度评估诊断性能。
CAD 系统的受试者工作特征曲线下面积、准确性、敏感度和特异度分别为 0.982(95%置信区间:0.969-0.994)、92.9%(95%置信区间:89.5%-95.2%)、91.9%(95%置信区间:87.4%-94.9%)和 94.7%(95%置信区间:89.0%-97.6%)。CAD 的准确性明显高于非专家内镜医师(78.3%,<0.001 与 CAD 相比),与专家内镜医师相当(91.0%,=0.129 与 CAD 相比)。参考 CAD 结果后,非专家内镜医师的准确性明显提高(88.2%,78.3%,<0.001)。CAD 系统更有可能错误识别巴黎分类 0-IIb 型病变。
CAD 系统的诊断性能很有前景,可能有助于提高检测能力,特别是对经验不足的内镜医师。
