The Number and Structure of Muscle Synergies Depend on the Number of Recorded Muscles: A Pilot Simulation Study with OpenSim.

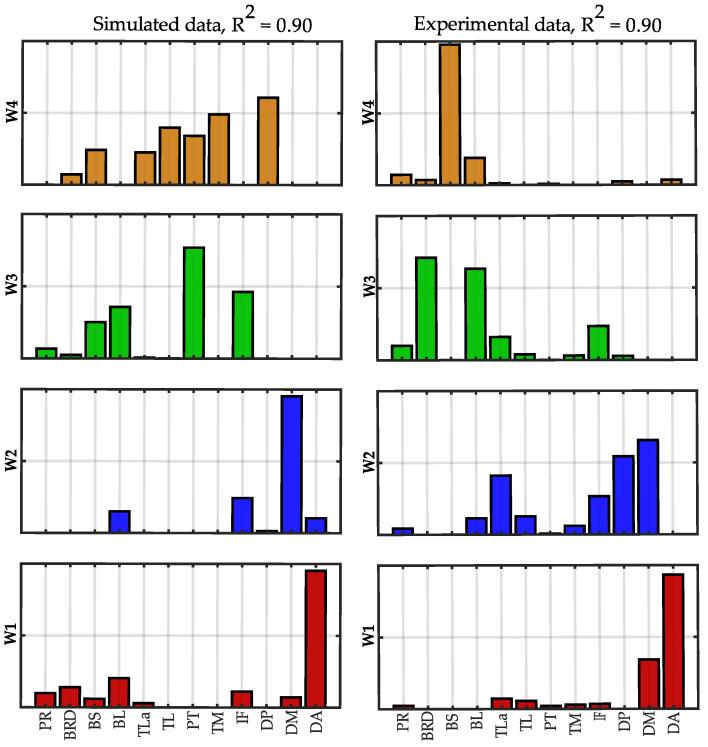

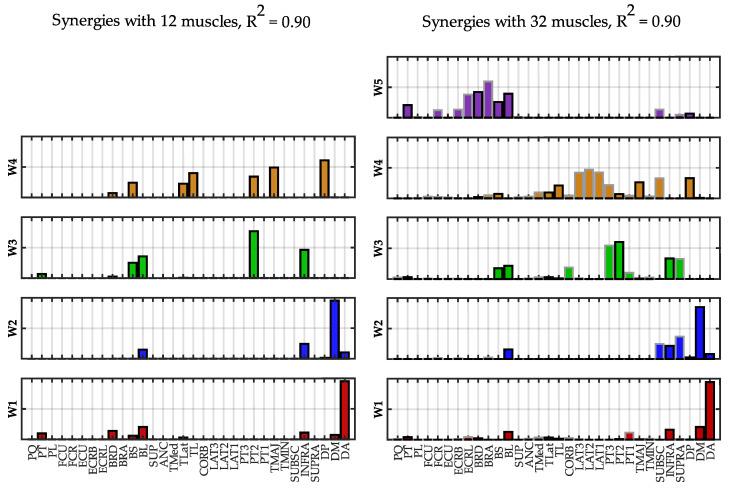

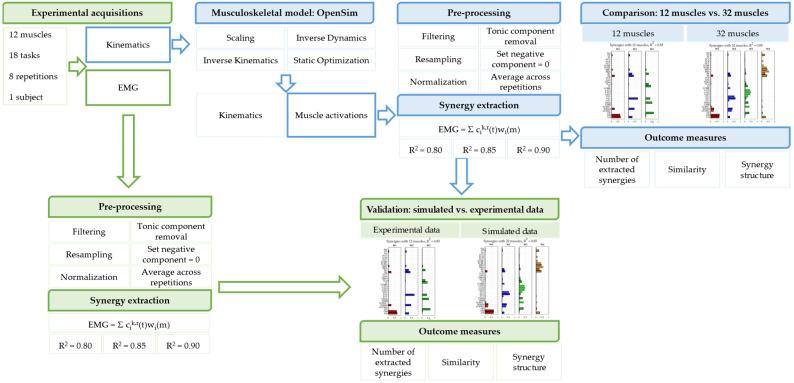

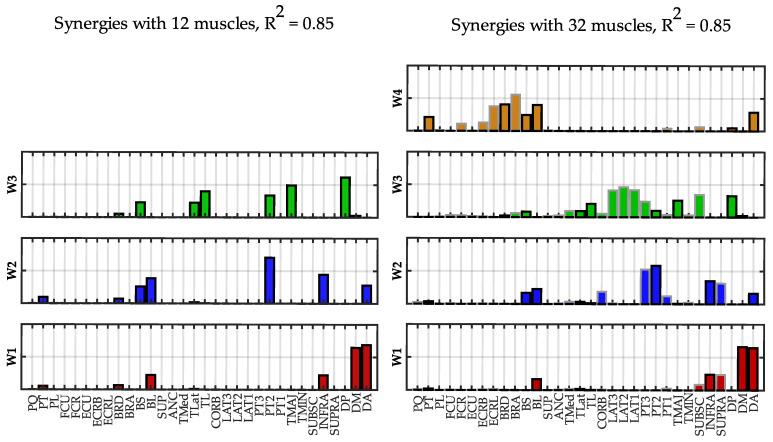

The muscle synergy approach is used to evaluate motor control and to quantitatively determine the number and structure of the modules underlying movement. In experimental studies regarding the upper limb, typically 8 to 16 EMG probes are used depending on the application, although the number of muscles involved in motor generation is higher. Therefore, the number of motor modules may be underestimated and the structure altered with the standard spatial synergy model based on the non-negative matrix factorization (NMF). In this study, we compared the number and structure of muscle synergies when considering 12 muscles (an "average" condition that represents previous studies) and 32 muscles of the upper limb, also including multiple muscle heads and deep muscles. First, we estimated the muscle activations with an upper-limb model in OpenSim using data from multi-directional reaching movements acquired in experimental sessions; then, spatial synergies were extracted from EMG activations from 12 muscles and from 32 muscles and their structures were compared. Finally, we compared muscle synergies obtained from OpenSim and from real experimental EMG signals to assess the reliability of the results. Interestingly, we found that on average, an additional synergy is needed to reconstruct the same level with 32 muscles with respect to 12 muscles; synergies have a very similar structure, although muscles with comparable physiological functions were added to the synergies extracted with 12 muscles. The additional synergies, instead, captured patterns that could not be identified with only 12 muscles. We concluded that current studies may slightly underestimate the number of controlled synergies, even though the main structure of synergies is not modified when adding more muscles. We also show that EMG activations estimated with OpenSim are in partial (but not complete) agreement with experimental recordings. These findings may have significative implications for motor control and clinical studies.
