Polymer Biointerface Centre, School of Chemical Sciences, The University of Auckland, Auckland 1010, New Zealand.
The MacDiarmid Institute of Advanced Materials and Nanotechnology, Wellington 6140, New Zealand.
Biosensors (Basel). 2022 Dec 7;12(12):1143. doi: 10.3390/bios12121143.

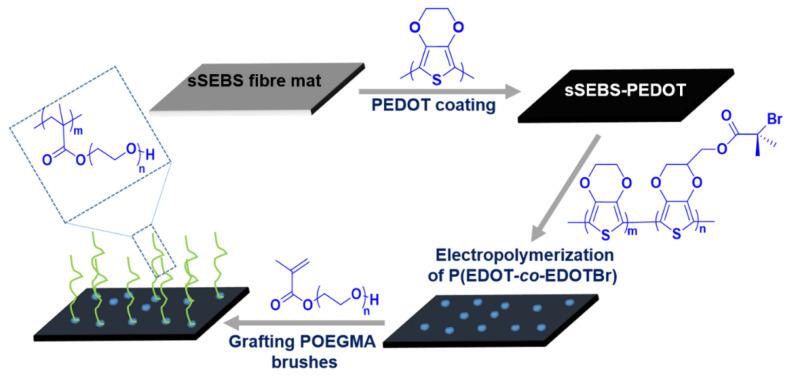

Biofouling on surfaces, caused by the assimilation of proteins, peptides, lipids and microorganisms, leads to contamination, deterioration and failure of biomedical devices and causes implants rejection. To address these issues, various antifouling strategies have been extensively studied, including polyethylene glycol-based polymer brushes. Conducting polymers-based biointerfaces have emerged as advanced surfaces for interfacing biological tissues and organs with electronics. Antifouling of such biointerfaces is a challenge. In this study, we fabricated electrospun fibre mats from sulphonated polystyrene-block-poly(ethylene-ran-butylene)-block-polystyrene (sSEBS), infused with conducting polymer poly(3,4-ethylenedioxythiophene) (PEDOT) (sSEBS-PEDOT), to produce a conductive (2.06 ± 0.1 S/cm), highly porous, fibre mat that can be used as a biointerface in bioelectronic applications. To afford antifouling, here the poly(oligo (ethylene glycol) methyl ether methacrylate) (POEGMA) brushes were grafted onto the sSEBS-PEDOT conducting fibre mats via surface-initiated atom transfer radical polymerization technique (SI-ATRP). For that, a copolymer of EDOT and an EDOT derivative with SI-ATRP initiating sites, 3,4-ethylenedioxythiophene) methyl 2-bromopropanoate (EDOTBr), was firstly electropolymerized on the sSEBS-PEDOT fibre mat to provide sSEBS-PEDOT/P(EDOT-co-EDOTBr). The POEGMA brushes were grafted from the sSEBS-PEDOT/P(EDOT-co-EDOTBr) and the polymerization kinetics confirmed the successful growth of the brushes. Fibre mats with 10-mers and 30-mers POEGMA brushes were studied for antifouling using a BCA protein assay. The mats with 30-mers grafted brushes exhibited excellent antifouling efficiency, ~82% of proteins repelled, compared to the pristine sSEBS-PEDOT fibre mat. The grafted fibre mats exhibited cell viability >80%, comparable to the standard cell culture plate controls. Such conducting, porous biointerfaces with POEGMA grafted brushes are suitable for applications in various biomedical devices, including biosensors, liquid biopsy, wound healing substrates and drug delivery systems.
生物污染表面,由蛋白质、肽、脂质和微生物的同化引起,导致生物医学设备的污染、恶化和故障,并导致植入物的排斥。为了解决这些问题,已经广泛研究了各种抗污染策略,包括基于聚乙二醇的聚合物刷。基于导电聚合物的生物界面已成为生物组织和器官与电子设备接口的先进表面。这种生物界面的抗污染是一个挑战。在这项研究中,我们制备了磺化聚苯乙烯嵌段-聚(乙烯-ran-丁烯)嵌段-聚苯乙烯(sSEBS)的电纺纤维垫,并注入了导电聚合物聚(3,4-亚乙基二氧噻吩)(PEDOT)(sSEBS-PEDOT),以产生一种导电(2.06 ± 0.1 S/cm)、高度多孔的纤维垫,可作为生物电子应用中的生物界面。为了提供抗污染性,这里通过表面引发原子转移自由基聚合技术(SI-ATRP)将聚(聚乙二醇甲基醚甲基丙烯酸酯)(POEGMA)刷接枝到 sSEBS-PEDOT 导电纤维垫上。为此,首先将具有 SI-ATRP 引发点的 EDOT 和 EDOT 衍生物的共聚物,3,4-亚乙基二氧噻吩)甲基 2-溴丙酸盐(EDOTBr),电聚合到 sSEBS-PEDOT 纤维垫上,以提供 sSEBS-PEDOT/P(EDOT-co-EDOTBr)。从 sSEBS-PEDOT/P(EDOT-co-EDOTBr)接枝 POEGMA 刷,聚合动力学证实了刷的成功生长。使用 BCA 蛋白质测定法研究了具有 10 个单体和 30 个单体 POEGMA 刷的抗污染纤维垫。与原始的 sSEBS-PEDOT 纤维垫相比,接枝 30 个单体刷的纤维垫表现出优异的抗污染效率,排斥了约 82%的蛋白质。接枝纤维垫表现出 >80%的细胞活力,与标准细胞培养板对照相当。具有接枝刷的导电多孔生物界面适用于各种生物医学设备的应用,包括生物传感器、液体活检、伤口愈合基板和药物输送系统。
