Regioselective Cycloaddition of Nitrile Imines to 5-Methylidene-3-phenyl-hydantoin: Synthesis and DFT Calculations.

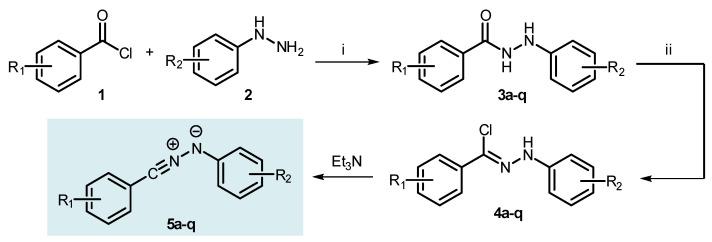

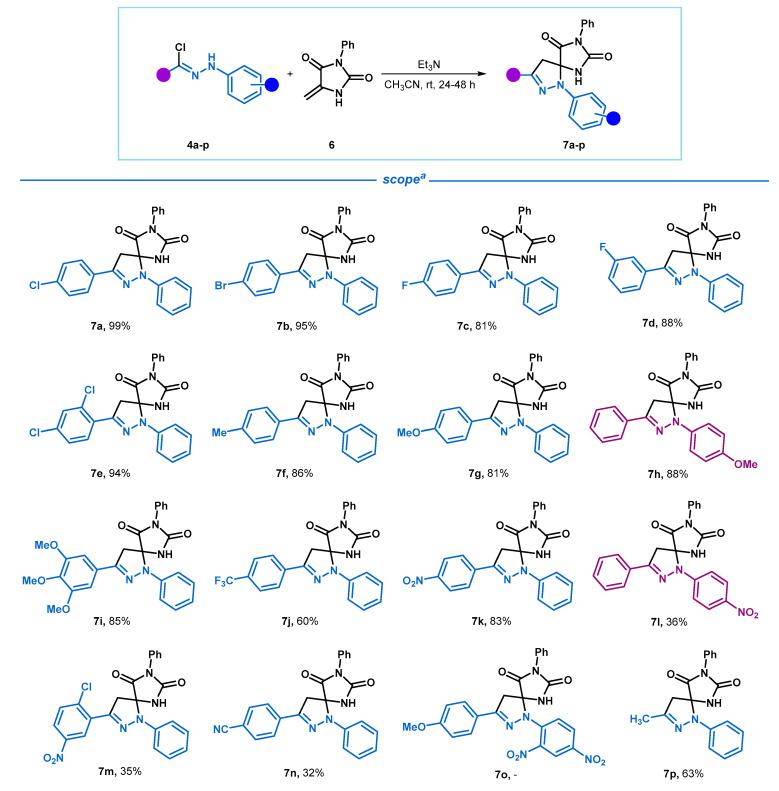

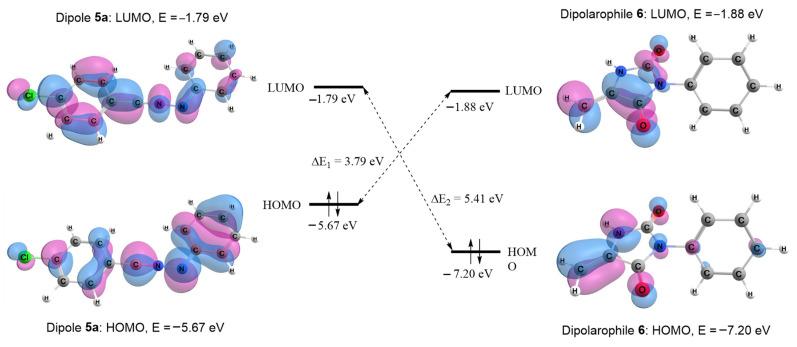

Nitrile imine cycloaddition to hydantoins containing an exocyclic C=C double bond has been previously described in a very limited number of examples. In this work, regioselective synthesis of spiro-pyrazoline-imidazolidine-2,4-diones based on a 1,3-dipolar cycloaddition reaction of nitrile imines to 5-methylidene-3-phenyl-hydantoin have been proposed. It was found that, regardless of the nature of the aryl substituents at the terminal C and N atoms of the C-N-N fragment of nitrile imine (electron donor or electron acceptor), cycloaddition to the 5-methylidenhydantoin exocyclic C=C bond proceeds regioselectively, and the terminal nitrogen atom of the nitrile imine connects to the more sterically hindered carbon atom of the double bond, which leads to the formation of a 5-disubstituted pyrazoline ring. The observed cycloaddition regioselectivity was rationalized using DFT calculations of frontier molecular orbital interactions, global CDFT reactivity indices, and minimum energy paths.
