Brimmer Sunita, Ji Pengfei, Birla Aditya K, Keswani Sundeep G, Caldarone Christopher A, Birla Ravi K
Laboratory for Regenerative Tissue Repair, Texas Children's Hospital, Houston, TX, United States.
Center for Congenital Cardiac Research, Texas Children's Hospital, Houston, TX, United States.
Front Bioeng Biotechnol. 2023 Jan 20;11:1061622. doi: 10.3389/fbioe.2023.1061622. eCollection 2023.

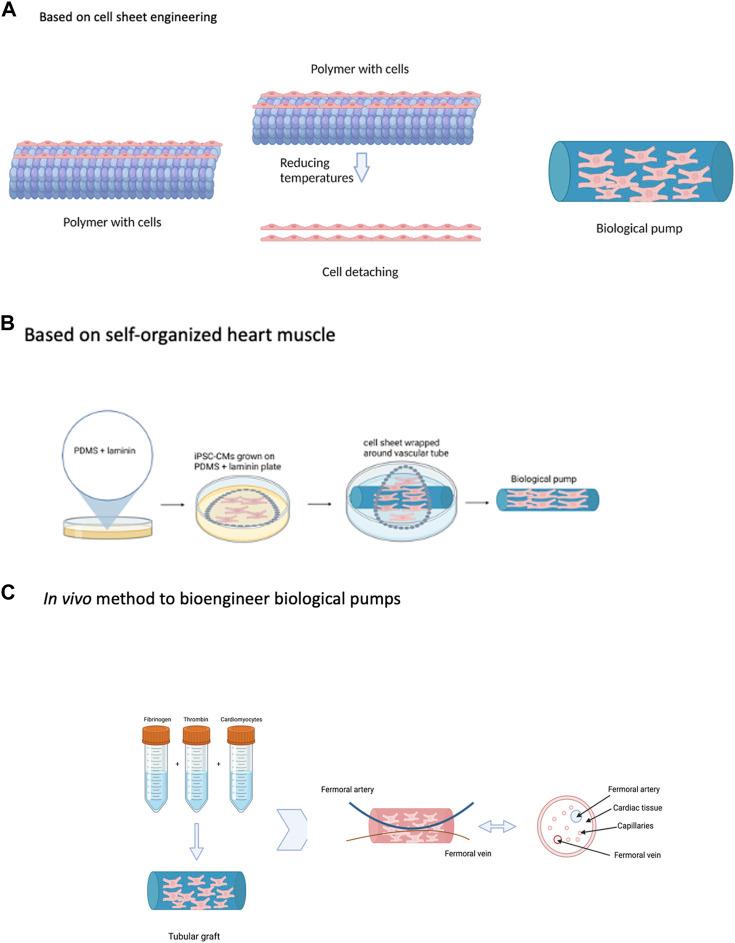

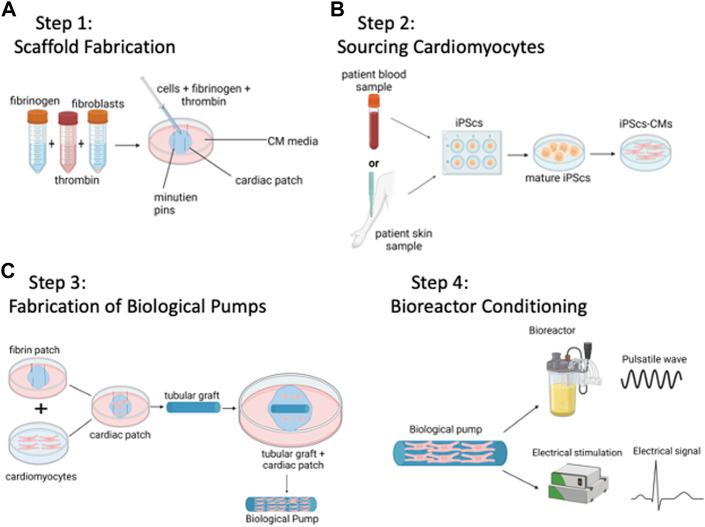

The field of biological pumps is a subset of cardiac tissue engineering and focused on the development of tubular grafts that are designed generate intraluminal pressure. In the simplest embodiment, biological pumps are tubular grafts with contractile cardiomyocytes on the external surface. The rationale for biological pumps is a transition from planar 3D cardiac patches to functional biological pumps, on the way to complete bioartificial hearts. Biological pumps also have applications as a standalone device, for example, to support the Fontan circulation in pediatric patients. In recent years, there has been a lot of progress in the field of biological pumps, with innovative fabrication technologies. Examples include the use of cell sheet engineering, self-organized heart muscle, bioprinting and bio chambers for vascularization. Several materials have been tested for biological pumps and included resected aortic segments from rodents, type I collagen, and fibrin hydrogel, to name a few. Multiple bioreactors have been tested to condition biological pumps and replicate the complex environment during controlled culture. The purpose of this article is to provide an overview of the field of the biological pumps, outlining progress in the field over the past several years. In particular, different fabrication methods, biomaterial platforms for tubular grafts and examples of bioreactors will be presented. In addition, we present an overview of some of the challenges that need to be overcome for the field of biological pumps to move forward.
生物泵领域是心脏组织工程的一个子集,专注于开发旨在产生腔内压力的管状移植物。在最简单的实施方案中,生物泵是外表面带有收缩性心肌细胞的管状移植物。生物泵的基本原理是从平面三维心脏贴片向功能性生物泵转变,朝着完整的生物人工心脏迈进。生物泵还可作为独立装置应用,例如用于支持儿科患者的Fontan循环。近年来,随着创新制造技术的出现,生物泵领域取得了很大进展。示例包括使用细胞片工程、自组织心肌、生物打印和用于血管化的生物腔室。已经对几种材料进行了生物泵测试,包括啮齿动物切除的主动脉段、I型胶原蛋白和纤维蛋白水凝胶等。已经测试了多种生物反应器来调节生物泵并在受控培养期间复制复杂环境。本文的目的是概述生物泵领域,概述过去几年该领域的进展。特别是,将介绍不同的制造方法、用于管状移植物的生物材料平台和生物反应器示例。此外,我们概述了生物泵领域向前发展需要克服的一些挑战。
