Zhang Di, Lu Hongfei, Lyu Nawei, Jiang Xin, Zhang Zili, Jin Yang
Research Center of Grid Energy Storage and Battery Application, School of Electrical Engineering, Zhengzhou University Zhengzhou 450001 Henan China
Nanoscale Adv. 2023 Jan 7;5(3):934-942. doi: 10.1039/d2na00682k. eCollection 2023 Jan 31.

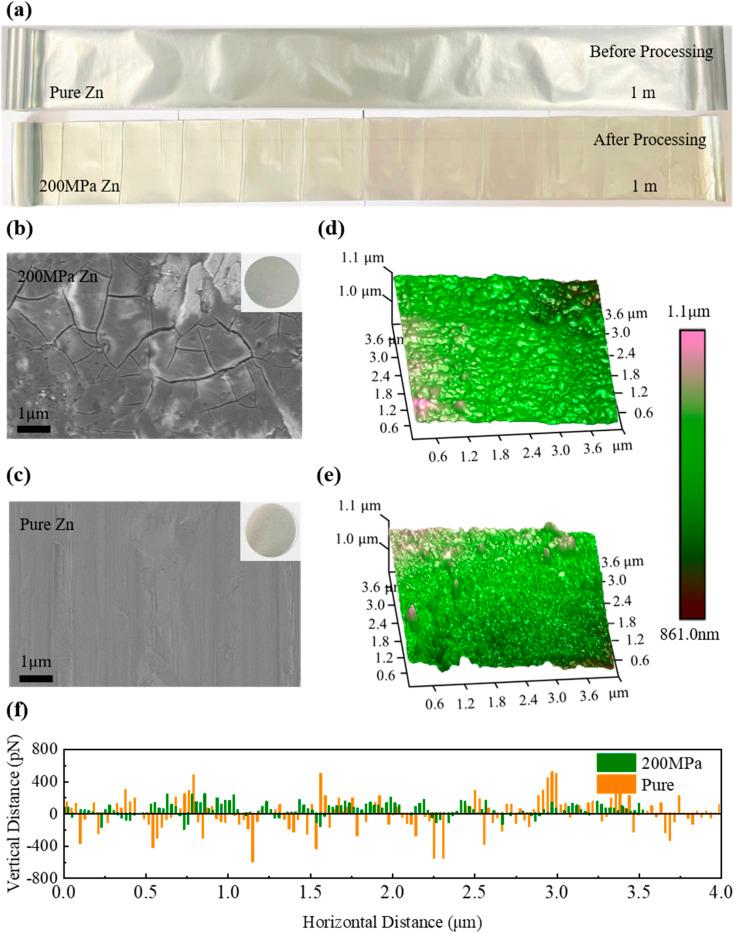

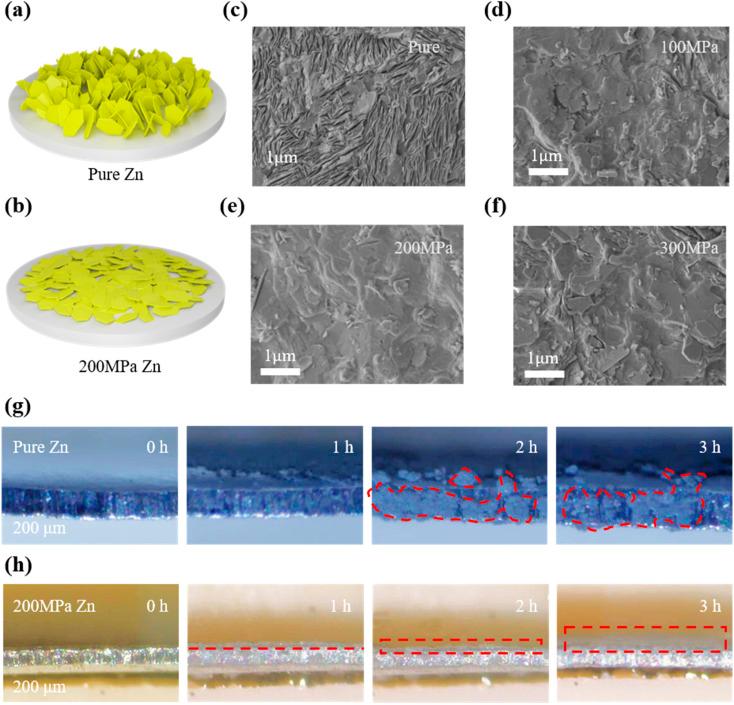

The Zn anode suffers from severe dendrite growth and side reactions, which restrict its development in the realm of large-scale energy storage. Herein, in this study, we propose a method to create surface-microcracks in a Zn foil by 200 MPa cold isostatic pressing. The proposed pressing method can avoid the surface tip effect of Zn, and creates a subtly surface-microcracked zinc structure, providing more zinc ion transport channels, thereby effectively alleviating the dendrite growth and side reactions during the repeated Zn plating and stripping. Benefiting from these advantages, the 200 MPa Zn‖Zn symmetric cell can achieve a long cycle life (1525 h) of 1 mA h cm at 2 mA cm. The 200 MPa Zn‖VO full cell can still maintain a capacity of 110 mA h g after 1000 cycles at 0.1 A g. In addition, assembled pouch cells also show excellent cycling stability. The proposed cold isostatic pressing method is compatible with large-scale production applications and provides an effective strategy for realizing high-performance zinc anodes for zinc-ion batteries.
锌阳极存在严重的枝晶生长和副反应问题,这限制了其在大规模储能领域的发展。在此,在本研究中,我们提出了一种通过200兆帕冷等静压在锌箔中制造表面微裂纹的方法。所提出的压制方法可以避免锌的表面尖端效应,并形成一种微妙的表面微裂纹锌结构,提供更多的锌离子传输通道,从而有效缓解重复镀锌和剥锌过程中的枝晶生长和副反应。受益于这些优点,200兆帕的锌‖锌对称电池在2毫安/平方厘米的电流密度下,在1毫安时/平方厘米的电流密度下可实现1525小时的长循环寿命。200兆帕的锌‖钒全电池在0.1安/克的电流密度下经过1000次循环后仍能保持110毫安时/克的容量。此外,组装的软包电池也表现出优异的循环稳定性。所提出的冷等静压方法与大规模生产应用兼容,并为实现高性能锌离子电池的锌阳极提供了一种有效策略。
