基于超声的影像组学机器学习模型对狼疮性肾炎活动度的无创评估

Noninvasive Evaluation of Lupus Nephritis Activity Using a Radiomics Machine Learning Model Based on Ultrasound.

作者信息

Qin Xiachuan, Xia Linlin, Zhu Chao, Hu Xiaomin, Xiao Weihan, Xie Xisheng, Zhang Chaoxue

机构信息

Department of Ultrasound, The First Affiliated Hospital of Anhui Medical University, Hefei, Anhui, People's Republic of China.

Department of Ultrasound, Nanchong Central Hospital, The Second Clinical Medical College, North Sichuan Medical College (University), Nan Chong, Sichuan, People's Republic of China.

出版信息

J Inflamm Res. 2023 Feb 3;16:433-441. doi: 10.2147/JIR.S398399. eCollection 2023.


DOI:10.2147/JIR.S398399
PMID:36761904
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC9904229/
Abstract

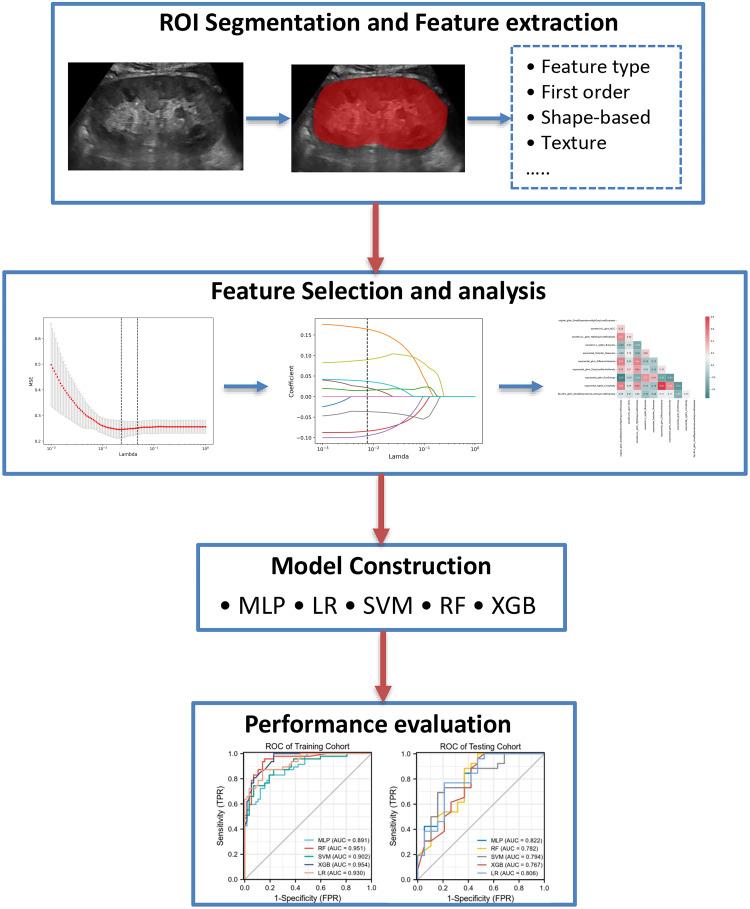

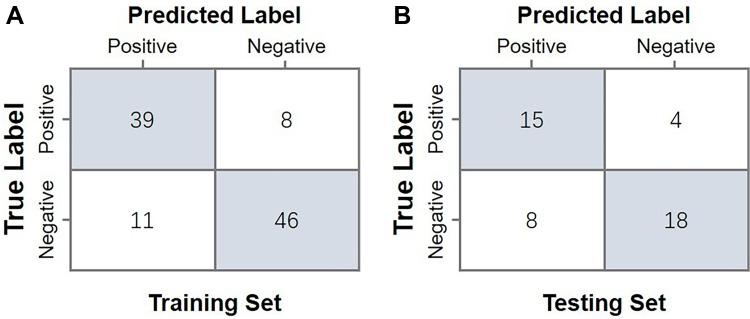

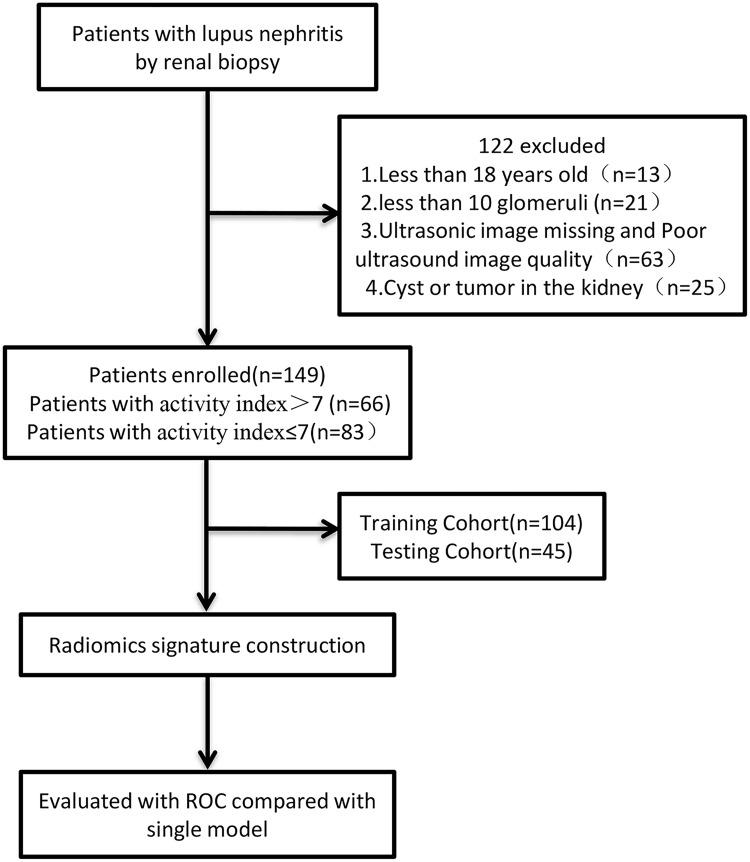

INTRODUCTION: To explore whether ultrasonic radiomics extracted by machine learning method can noninvasively evaluate lupus nephritis (LN) activity. MATERIALS AND METHODS: This retrospective study included 149 patients with LN diagnosed by renal biopsy. They were divided into a training cohort (n=104) and a test cohort (n=45). Ultrasonic radiomics features were extracted from the ultrasound images, and the radiomics features were constructed. Furthermore, five machine learning algorithms were compared to evaluate LN activity. The performance of the binary classification model was evaluated by the area under the receiver operating characteristic curve (AUC), accuracy, sensitivity, specificity, positive predictive value (PPV), and negative predictive value (NPV). RESULTS: The average AUC of the five machine learning models was 79.4, of which the MLP model was the best. The AUC of the training group was 89.1, with an accuracy of 81.7%, a sensitivity of 83%, a specificity of 80.7%, a negative predictive value of 85.2%, and a positive predictive value of 78%. The AUC of the test group was 82.2, the accuracy was 73.3%, the sensitivity was 78.9%, the specificity was 69.2%, the negative predictive value was 81.8%, and the positive predictive value was 65.2%. CONCLUSION: Machine learning classifier based on ultrasonic radiomics has high accuracy for LN activity. The model can be used to noninvasively detect the activity of LN and can be an effective tool to assist the clinical decision-making process.

摘要

引言:探讨通过机器学习方法提取的超声影像组学能否无创评估狼疮性肾炎(LN)的活动度。 材料与方法:这项回顾性研究纳入了149例经肾活检确诊为LN的患者。他们被分为训练队列(n = 104)和测试队列(n = 45)。从超声图像中提取超声影像组学特征,并构建影像组学特征。此外,比较了五种机器学习算法以评估LN的活动度。通过受试者操作特征曲线(AUC)下面积、准确性、敏感性、特异性、阳性预测值(PPV)和阴性预测值(NPV)评估二元分类模型的性能。 结果:五种机器学习模型的平均AUC为79.4,其中MLP模型表现最佳。训练组的AUC为89.1,准确性为81.7%,敏感性为83%,特异性为80.7%,阴性预测值为85.2%,阳性预测值为78%。测试组的AUC为82.2,准确性为73.3%,敏感性为78.9%,特异性为69.2%,阴性预测值为81.8%,阳性预测值为65.2%。 结论:基于超声影像组学的机器学习分类器对LN活动度具有较高的准确性。该模型可用于无创检测LN的活动度,并且可以成为协助临床决策过程的有效工具。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b8cb/9904229/fcd52a10b4d0/JIR-16-433-g0005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b8cb/9904229/aa852b702f09/JIR-16-433-g0001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b8cb/9904229/ea15daa33488/JIR-16-433-g0002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b8cb/9904229/8969ce723f7b/JIR-16-433-g0003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b8cb/9904229/0627886ea540/JIR-16-433-g0004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b8cb/9904229/fcd52a10b4d0/JIR-16-433-g0005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b8cb/9904229/aa852b702f09/JIR-16-433-g0001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b8cb/9904229/ea15daa33488/JIR-16-433-g0002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b8cb/9904229/8969ce723f7b/JIR-16-433-g0003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b8cb/9904229/0627886ea540/JIR-16-433-g0004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b8cb/9904229/fcd52a10b4d0/JIR-16-433-g0005.jpg
