Sun Qi, Boddapati Loukya, Wang Linan, Li Junjie, Deepak Francis Leonard
School of Semiconductor Science and Technology, South China Normal University, Foshan 528225, China.
Research Center for Crystal Materials, CAS Key Laboratory of Functional Materials and Devices for Special Environments, Xinjiang Technical Institute of Physics & Chemistry, CAS, Urumqi 830011, China.
Nanomaterials (Basel). 2023 Feb 21;13(5):796. doi: 10.3390/nano13050796.

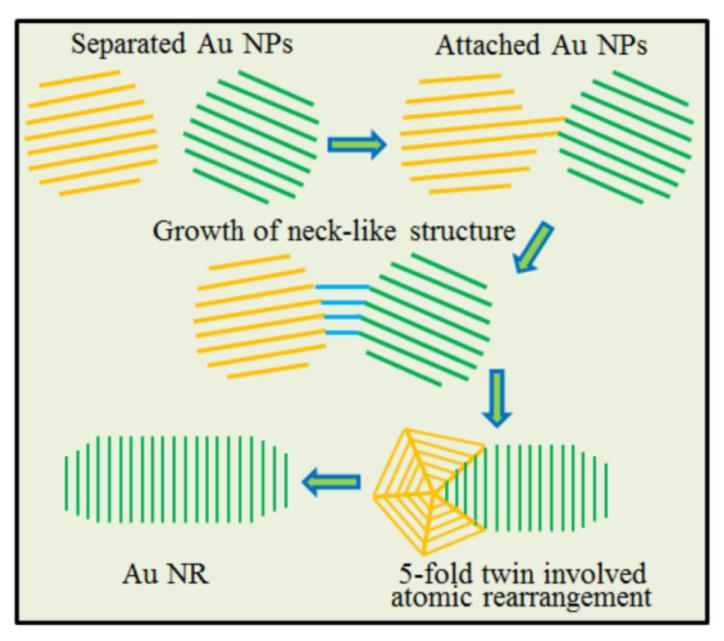

Crystallization plays a critical role in determining crystal size, purity and morphology. Therefore, uncovering the growth dynamics of nanoparticles (NPs) atomically is important for the controllable fabrication of nanocrystals with desired geometry and properties. Herein, we conducted in situ atomic-scale observations on the growth of Au nanorods (NRs) by particle attachment within an aberration-corrected transmission electron microscope (AC-TEM). The results show that the attachment of spherical colloidal Au NPs with a size of about 10 nm involves the formation and growth of neck-like (NL) structures, followed by five-fold twin intermediate states and total atomic rearrangement. The statistical analyses show that the length and diameter of Au NRs can be well regulated by the number of tip-to-tip Au NPs and the size of colloidal Au NPs, respectively. The results highlight five-fold twin-involved particle attachment in spherical Au NPs with a size of 3-14 nm, and provide insights into the fabrication of Au NRs using irradiation chemistry.
结晶在决定晶体大小、纯度和形态方面起着关键作用。因此,从原子层面揭示纳米颗粒(NPs)的生长动力学对于可控制备具有所需几何形状和性质的纳米晶体至关重要。在此,我们在一台像差校正透射电子显微镜(AC-TEM)内通过颗粒附着对金纳米棒(NRs)的生长进行了原位原子尺度观察。结果表明,尺寸约为10 nm的球形胶体金纳米颗粒的附着涉及颈状(NL)结构的形成与生长,随后是五次孪晶中间态和完全原子重排。统计分析表明,金纳米棒的长度和直径可分别通过尖端对尖端金纳米颗粒的数量和胶体金纳米颗粒的尺寸得到很好的调控。这些结果突出了尺寸为3 - 14 nm的球形金纳米颗粒中涉及五次孪晶的颗粒附着,并为利用辐照化学制备金纳米棒提供了见解。
