Almeida Jessica Cecilia, Candemil Amanda Pelegrin, Bertolini Gunther Ricardo, Souza-Gabriel Aline Evangelista, Cruz-Filho Antonio Miranda, Sousa-Neto Manoel Damião, Silva Ricardo Gariba
Department of Restorative Dentistry, School of Dentistry of Ribeirão Preto, University of São Paulo, Ribeirão Preto, SP, Brazil.
Imaging Sci Dent. 2023 Mar;53(1):77-82. doi: 10.5624/isd.20220204. Epub 2023 Feb 1.
This study evaluated anatomical variations in the root canals of the lower premolars and molars in a Brazilian sub-population using cone-beam computed tomography (CBCT).

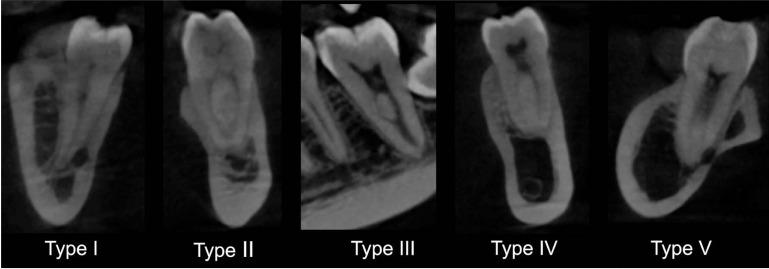

In total, 121 CBCT images of patients were selected from a database. All images contained lower first and second premolars and molars on both sides of the arch, fully developed roots, and no treatment, resorption, or calcifications. In each image, the root canals of the lower premolars and molars were evaluated according to the Vertucci classification in On-Demand 3D software in the multiplanar reconstruction with dynamic navigation. Twenty-five percent of the images were re-assessed to analyze intraobserver confidence with the kappa test. Data were statistically evaluated with linear regression to evaluate the correlations of anatomic variations with age and sex, and the Wilcoxon test to analyze the laterality of variations, with a significance level of 5%.
The intraobserver agreement (0.94) was excellent. In general, the root canals of lower premolars and molars showed a higher prevalence of type I than other Vertucci classification types, followed by type V in premolars and type II in molars. When the molar roots were evaluated separately, type II was more frequent in mesial roots and type I in distal roots. Although age showed no correlations with the results, sex and laterality showed correlations with tooth 45 and the lower second premolars, respectively.
The lower premolars and molars of a Brazilian sub-population showed a wide range of root canal anatomic variations.
本研究使用锥形束计算机断层扫描(CBCT)评估巴西亚人群下颌前磨牙和磨牙根管的解剖变异。
从数据库中总共选取了121例患者的CBCT图像。所有图像均包含牙弓两侧的下颌第一和第二前磨牙及磨牙、完全发育的牙根,且无治疗、吸收或钙化情况。在每张图像中,在下颌前磨牙和磨牙的根管在具有动态导航的多平面重建中的按需3D软件中根据韦尔图奇分类法进行评估。对25%的图像进行重新评估,以通过kappa检验分析观察者内的可信度。数据采用线性回归进行统计学评估,以评估解剖变异与年龄和性别的相关性,并采用威尔科克森检验分析变异的侧别性,显著性水平为5%。
观察者内一致性(0.94)极佳。总体而言,下颌前磨牙和磨牙的根管中I型的患病率高于其他韦尔图奇分类类型,其次是前磨牙中的V型和磨牙中的II型。当分别评估磨牙牙根时,近中根中II型更常见,远中根中I型更常见。虽然年龄与结果无相关性,但性别和侧别性分别与45号牙和下颌第二前磨牙存在相关性。
巴西亚人群的下颌前磨牙和磨牙表现出广泛的根管解剖变异。
