Zhou Ziyou, Hu Zhen, Bao Wei, Yang Ying, Chen Kai
Department of Mechanical Engineering, School of Mechanical Engineering, Hangzhou Dianzi University, No.1158, Xiasha 2nd Street, Jianggan District, Hangzhou, Zhejiang 310018, China.
Department of Neurology, Ruijin Hospital Affiliated to Shanghai Jiao Tong University, Shanghai 200000, China.
Transl Neurosci. 2023 Apr 17;14(1):20220283. doi: 10.1515/tnsci-2022-0283. eCollection 2023 Jan 1.
Stroke patients often show postural instability. The patellar tendon reflex is a basic physical examination for stroke patients. This study aimed to explore the correlation between patellar tendon reflex grade and postural stability among stroke patients.
A total of 37 elderly stroke patients, each with the same quadriceps muscle strength but different patellar tendon reflex levels, were tested on a force platform under eyes-open (EO) and eyes-closed (EC) conditions. Parametric analysis, detrended fluctuation analysis (DFA), and power spectral density (PSD) analysis were used in centre of pressure (COP) signal processing. The correlation between the results of measured data processing and the level of patellar tendon reflex was analysed.

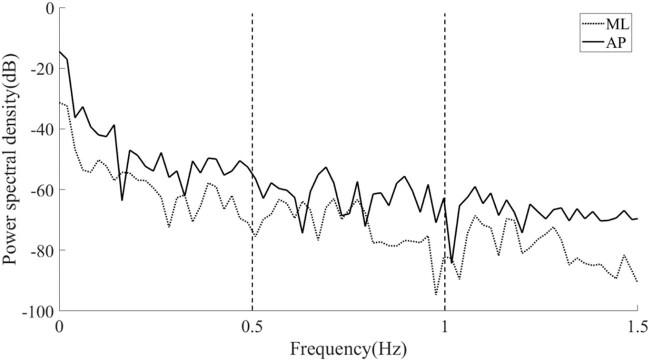

All three parameters of COP (the length of the sway trajectory, the mean range of the sway trajectory in the mediolateral [ML] direction [ ], and the mean range of the sway trajectory in the anterior-posterior [AP] directions [ ]) were negatively correlated with the patient's patellar tendon reflex grade under the EC condition. The DFA results showed that a higher grade of patellar tendon reflex was associated with a smaller value of the crossover point in the AP direction. Only the PSD values of each frequency band in the AP direction were negatively correlated with patellar tendon reflex grade with EO and became negatively correlated in both AP and ML directions with EC. Overall, the results showed a strong correlation between patellar tendon reflex and postural stability in stroke patients when vision was blocked.
The strong correlation with EC may provide insights into clinic evaluation and treatment for rehabilitation or fall risks of stroke patients.
中风患者常表现出姿势不稳。髌腱反射是中风患者的一项基本体格检查。本研究旨在探讨中风患者髌腱反射分级与姿势稳定性之间的相关性。
共有37例老年中风患者,每例患者股四头肌力量相同但髌腱反射水平不同,在睁眼(EO)和闭眼(EC)条件下在测力平台上进行测试。在压力中心(COP)信号处理中使用参数分析、去趋势波动分析(DFA)和功率谱密度(PSD)分析。分析测量数据处理结果与髌腱反射水平之间的相关性。
在EC条件下,COP的所有三个参数(摆动轨迹长度、在内外侧[ML]方向上摆动轨迹的平均范围[ ]以及在前后[AP]方向上摆动轨迹的平均范围[ ])均与患者的髌腱反射分级呈负相关。DFA结果表明,较高等级的髌腱反射与AP方向上交叉点的值较小相关。仅AP方向上各频段的PSD值在EO时与髌腱反射分级呈负相关,在EC时在AP和ML方向上均呈负相关。总体而言,结果表明在视力受阻时,中风患者的髌腱反射与姿势稳定性之间存在很强的相关性。
与EC的强相关性可能为中风患者的康复或跌倒风险的临床评估和治疗提供见解。
