Key Laboratory of Exercise and Health Sciences of Ministry of Education, Shanghai University of Sport, Shanghai 200438, China.
Key Laboratory of Exercise and Health Sciences of Ministry of Education, Shanghai University of Sport, Shanghai 200438, China.
J Sport Health Sci. 2024 Jan;13(1):108-117. doi: 10.1016/j.jshs.2023.05.002. Epub 2023 May 21.
Foot kinematics, such as excessive eversion and malalignment of the hindfoot, are believed to be associated with running-related injuries. The majority of studies to date show that different foot strike patterns influence these specific foot and ankle kinematics. However, technical deficiencies in traditional motion capture approaches limit knowledge of in vivo joint kinematics with respect to rearfoot and forefoot strike patterns (RFS and FFS, respectively). This study uses a high-speed dual fluoroscopic imaging system (DFIS) to determine the effects of different foot strike patterns on 3D in vivo tibiotalar and subtalar joints kinematics.

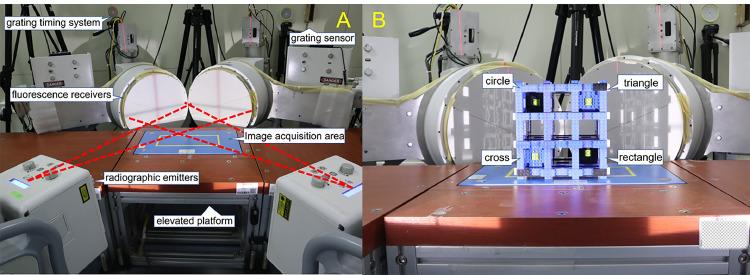

Fifteen healthy male recreational runners underwent foot computed tomography scanning for the construction of 3-dimensional models. A high-speed DFIS (100 Hz) was used to collect 6 degrees of freedom kinematics for participants' tibiotalar and subtalar joints when they adopted RFS and FFS in barefoot condition.

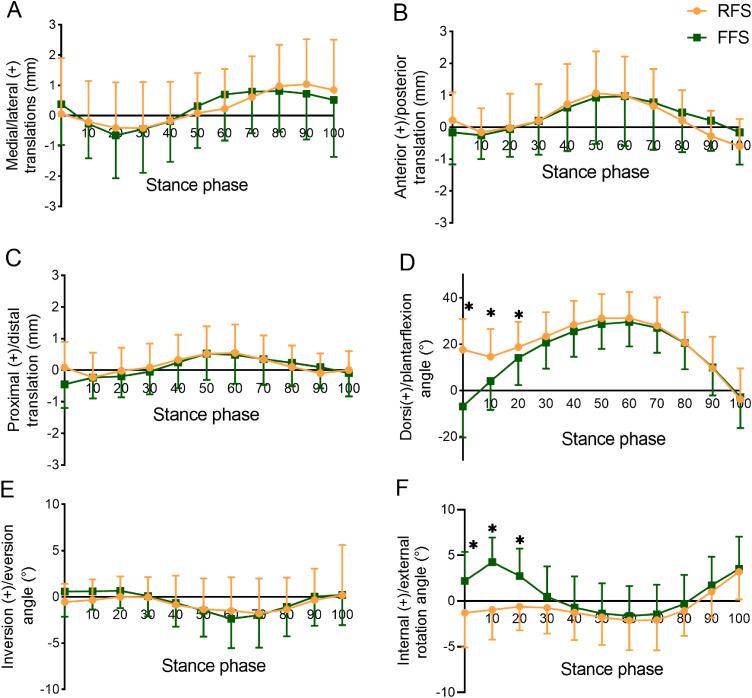

Compared with RFS, FFS exhibited greater internal rotation at 0%-20% of the stance phase in the tibiotalar joint. The peak internal rotation angle of the tibiotalar joint under FFS was greater than under RFS (p < 0.001, Cohen's d = 0.92). RFS showed more dorsiflexion at 0%-20% of the stance phase in the tibiotalar joint than FFS. RFS also presented a larger anterior translation (p < 0.001, Cohen's d = 1.28) in the subtalar joint at initial contact than FFS.
Running with acute barefoot FFS increases the internal rotation of the tibiotalar joint in the early stance. The use of high-speed DFIS to quantify the movement of the tibiotalar and subtalar joint was critical to revealing the effects of RFS and FFS during running.
足部运动学,如过度外旋和后足对线不良,被认为与跑步相关的损伤有关。迄今为止,大多数研究表明,不同的足触地模式会影响这些特定的足部和踝关节运动学。然而,传统运动捕捉方法的技术缺陷限制了对后足和前足触地模式(分别为 RFS 和 FFS)下的活体关节运动学的了解。本研究使用高速双荧光透视成像系统(DFIS)来确定不同足触地模式对 3D 活体距下关节和跟距关节运动学的影响。
15 名健康男性休闲跑者接受足部计算机断层扫描,以构建 3 维模型。使用高速 DFIS(100 Hz)在跑者赤脚时采用 RFS 和 FFS 时,采集距下关节和跟距关节的 6 自由度运动学。
与 RFS 相比,FFS 在距下关节支撑相的 0%-20%时表现出更大的内旋。FFS 下距下关节的最大内旋角度大于 RFS(p<0.001,Cohen's d=0.92)。RFS 在距下关节支撑相的 0%-20%时表现出更大的背屈。FFS 在初始接触时,距下关节的前向位移也更大(p<0.001,Cohen's d=1.28)。
急性赤脚 FFS 跑步增加了距下关节在早期支撑时的内旋。使用高速 DFIS 来量化距下关节和跟距关节的运动对于揭示跑步时 RFS 和 FFS 的影响至关重要。
