The redox mediated - scanning droplet cell system for evaluation of the solid electrolyte interphase in Li-ion batteries.

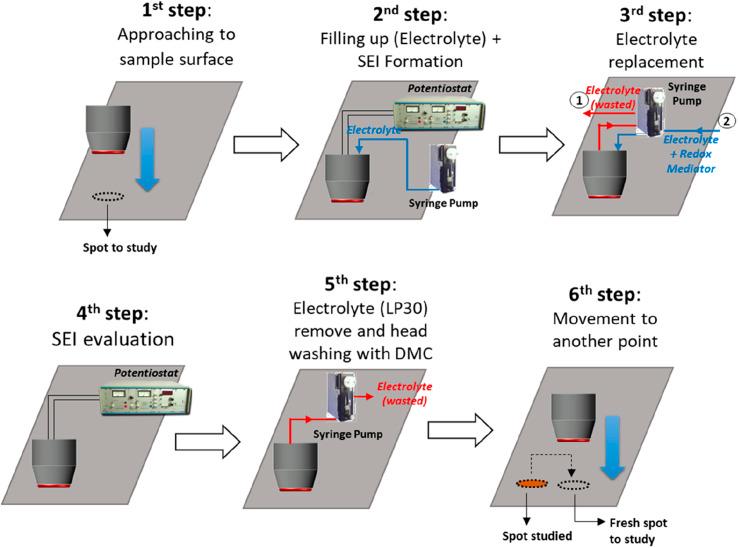

The so-called solid electrolyte interphase (SEI), a nanolayer formed on the negative electrode of lithium-ion batteries during the first cycles, largely influences some key performance indicators such as cycle life and specific power. The reason is due to the fact that the SEI prevents continuous electrolyte decomposition, making this protecting character extremely important. Herein, a specifically designed scanning droplet cell system (SDCS) is developed to study the protecting character of the SEI on lithium-ion battery (LIB) electrode materials. SDCS allows for automatized electrochemical measurements with improved reproducibility and time-saving experimentation. Besides the necessary adaptations for its implementation for non-aqueous batteries, a new operating mode, the so-called redox mediated-scanning droplet cell system (RM-SDCS), is established to investigate the SEI properties. By adding a redox mediator ( a viologen derivative) to the electrolyte, evaluation of the protecting character of the SEI becomes accessible. Validation of the proposed methodology was performed using a model sample (Cu surface). Afterwards, RM-SDCS was employed on Si-graphite electrodes as a case study. On the one hand, the RM-SDCS shed light on the degradation mechanisms providing direct electrochemical evidence of the rupture of the SEI upon lithiation. On the other hand, the RM-SDCS was presented as an accelerated method capable of searching for electrolyte additives. The results indicate an enhancement in the protecting character of the SEI when 4 wt% of both vinyl carbonate and fluoroethylene carbonate were used simultaneously.
