Ji Guanglin, Gao Qian, Zhang Tianwei, Cao Lin, Sun Zhenglong
School of Science and Engineering, The Chinese University of Hong Kong, Shenzhen, China.
Shenzhen Institute of Artificial Intelligence and Robotics for Society, Shenzhen, China.
Cyborg Bionic Syst. 2023 May 11;4:0026. doi: 10.34133/cbsystems.0026. eCollection 2023.

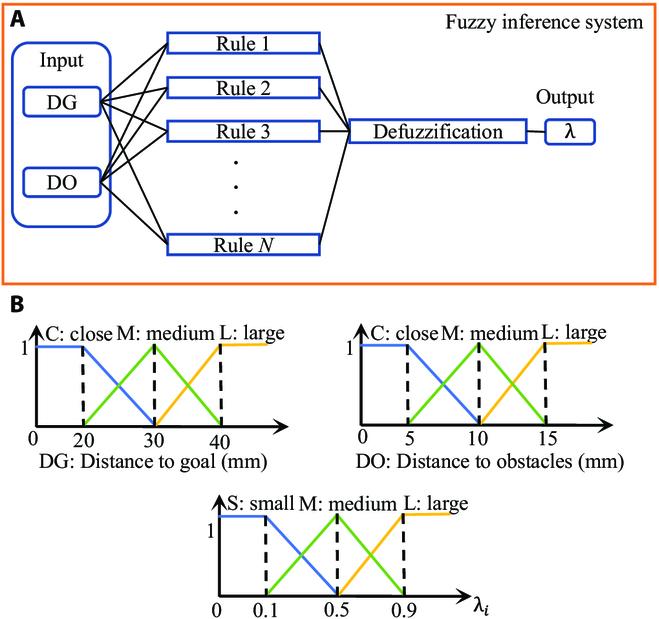

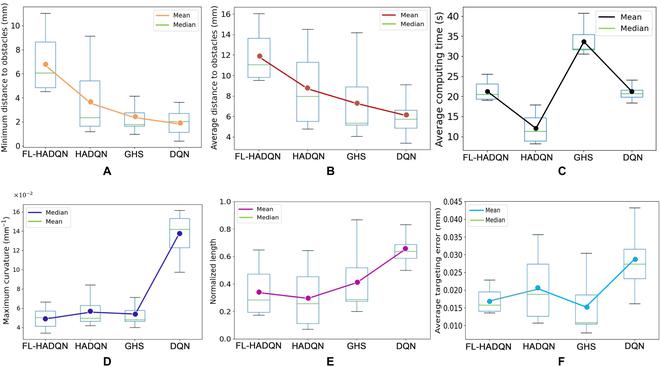

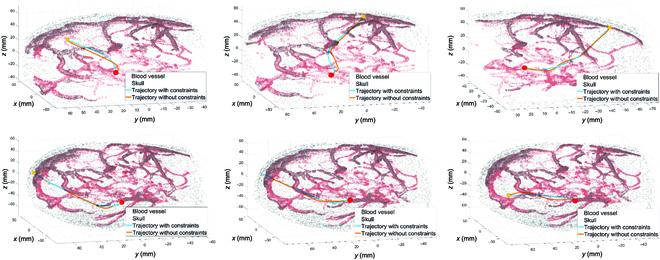

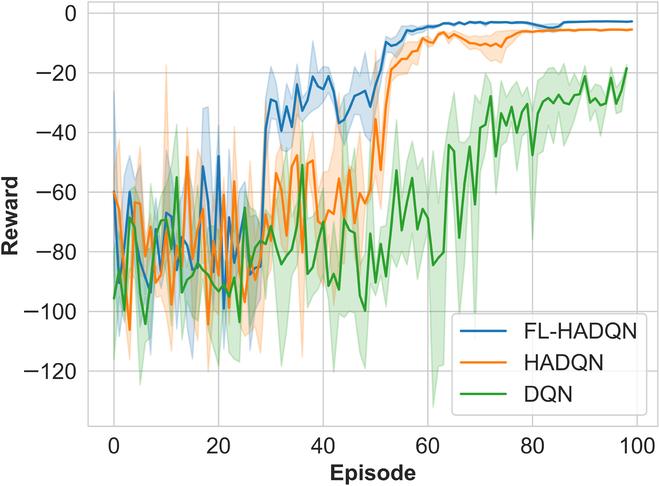

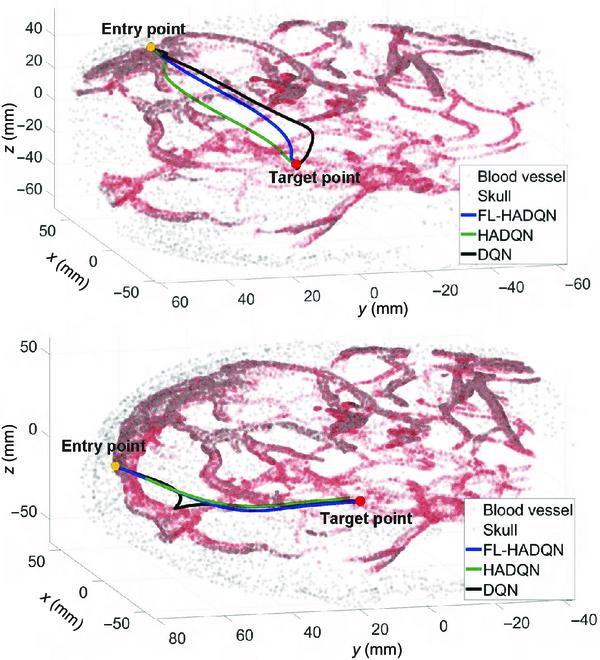

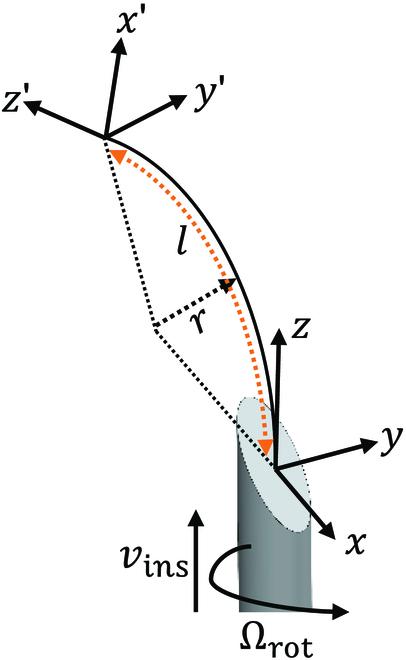

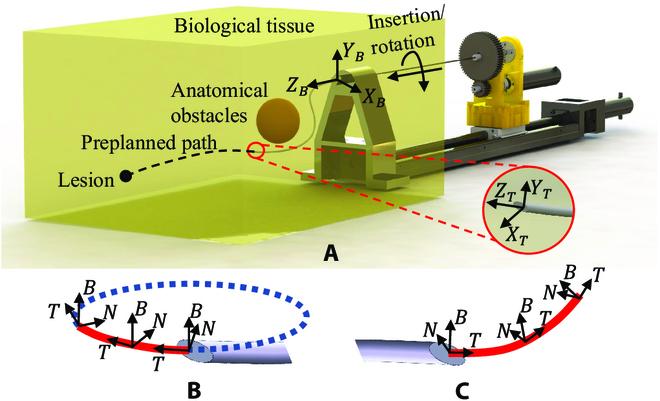

The steerable needle becomes appealing in the neurosurgery intervention procedure because of its flexibility to bypass critical regions inside the brain; with proper path planning, it can also minimize the potential damage by setting constraints and optimizing the insertion path. Recently, reinforcement learning (RL)-based path planning algorithm has shown promising results in neurosurgery, but because of the trial and error mechanism, it can be computationally expensive and insecure with low training efficiency. In this paper, we propose a heuristically accelerated deep Q network (DQN) algorithm to safely preoperatively plan a needle insertion path in a neurosurgical environment. Furthermore, a fuzzy inference system is integrated into the framework as a balance of the heuristic policy and the RL algorithm. Simulations are conducted to test the proposed method in comparison to the traditional greedy heuristic searching algorithm and DQN algorithms. Tests showed promising results of our algorithm in saving over 50 training episodes, calculating path lengths of 0.35 after normalization, which is 0.61 and 0.39 for DQN and traditional greedy heuristic searching algorithm, respectively. Moreover, the maximum curvature during planning is reduced to 0.046 from 0.139 mm using the proposed algorithm compared to DQN.
可操纵针在神经外科手术干预过程中很有吸引力,因为它具有绕过脑内关键区域的灵活性;通过适当的路径规划,它还可以通过设置约束和优化插入路径来最小化潜在损伤。最近,基于强化学习(RL)的路径规划算法在神经外科手术中显示出了有前景的结果,但由于试错机制,它可能计算成本高昂且不安全,训练效率低。在本文中,我们提出了一种启发式加速深度Q网络(DQN)算法,以在神经外科手术环境中安全地术前规划针插入路径。此外,一个模糊推理系统被集成到框架中,作为启发式策略和RL算法的平衡。进行了仿真,以将所提出的方法与传统贪婪启发式搜索算法和DQN算法进行比较测试。测试显示了我们算法的有前景结果,节省了超过50个训练episode,归一化后计算出的路径长度为0.35,而DQN和传统贪婪启发式搜索算法分别为0.61和0.39。此外,与DQN相比,使用所提出的算法在规划过程中的最大曲率从0.139毫米降低到了0.046。
