The Application of 3D Anatomy for Teaching Veterinary Clinical Neurology.

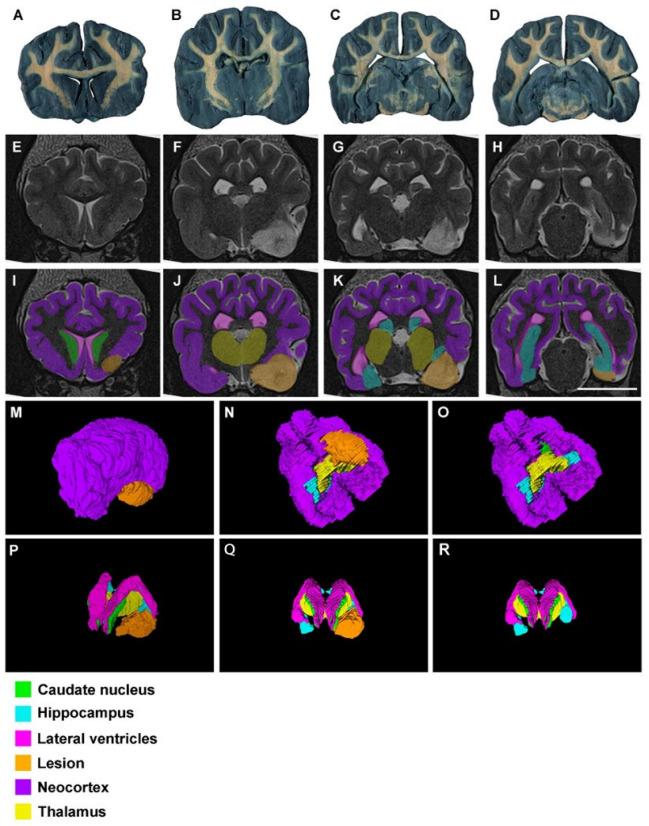

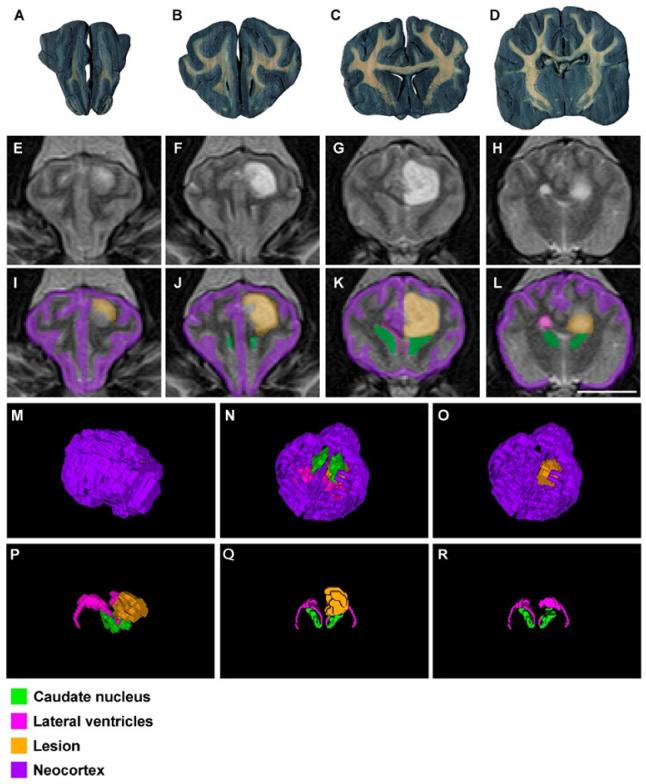

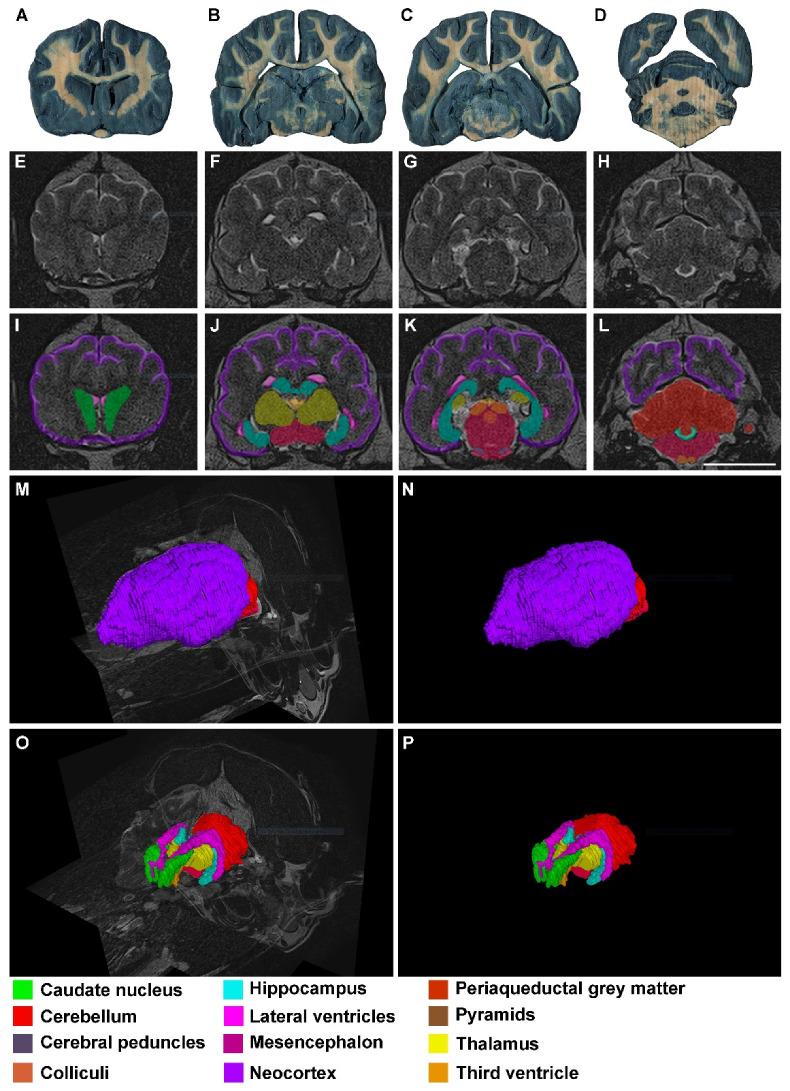

Neuroanatomy is always a challenging topic for veterinary students. It is widely accepted that understanding the anatomy of the central nervous system (CNS) is essential to explain many of the pathological processes that affect the brain. Although its study has varied over time to achieve this goal, in human and veterinary medicine it is difficult to find a teaching method that associates normal anatomy with pathological alterations of the brain. For the first time, we have created an educational tool that combines neuroanatomy and neuropathology, using different magnetic resonance (MR) images as a basis and EspINA software as analyzer, to obtain segmented structures and 3D reconstructions of the dog brain. We demonstrate that this combination is an optimal tool to help anatomists to understand the encephalon, and additionally to help clinicians to recognize illness including a multitude of neurological problems. In addition, we have tried to see whether photogrammetry, which is a common technique in other sciences, for example geology, could be useful to teach veterinary neuroanatomy. Although we still need further investigations, we have been able to generate 3D reconstructions of the whole brain, with very promising results to date.
