Core-Shell Nanostructured Drug Delivery Platform Based on Biocompatible Metal-Organic Framework-Ligated Polyethyleneimine for Targeted Hepatocellular Carcinoma Therapy.

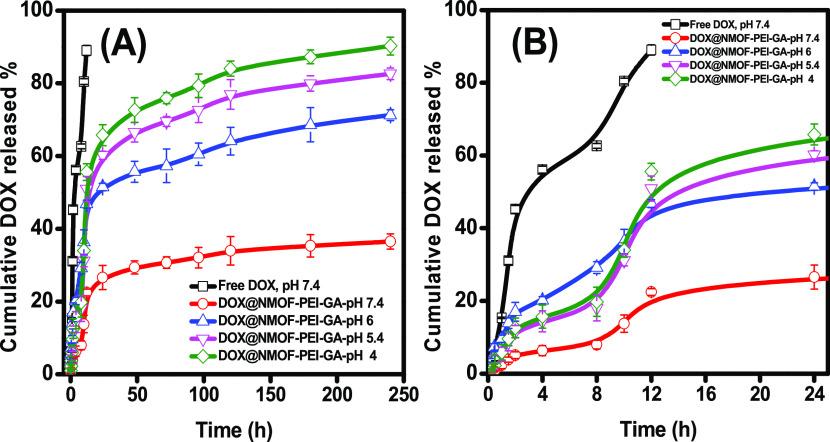

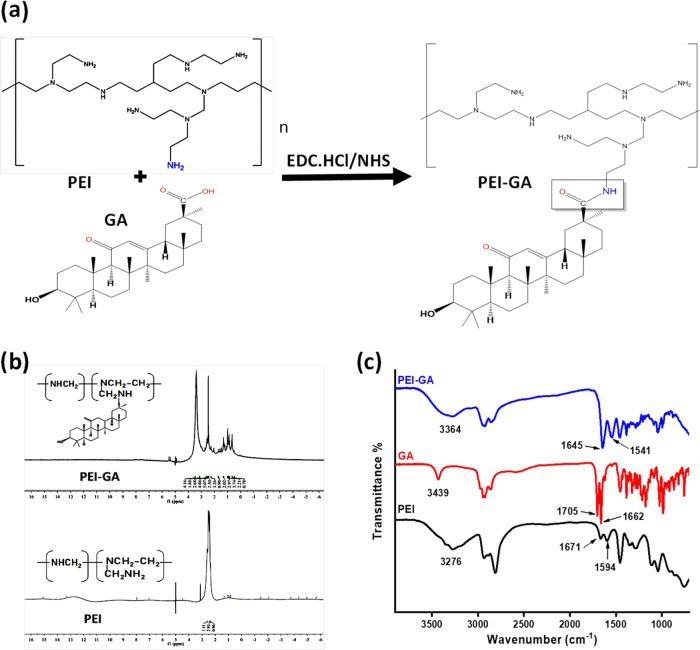

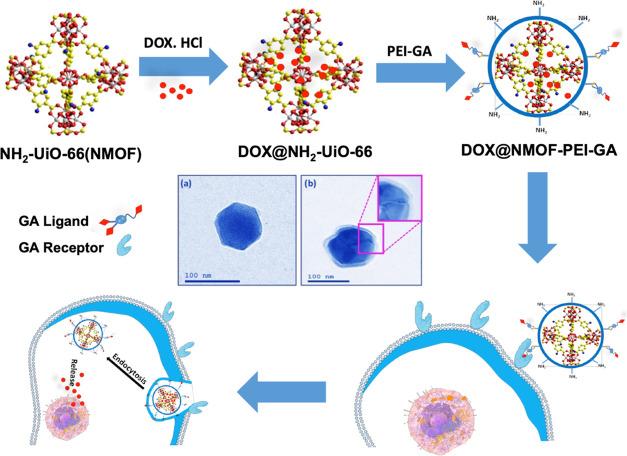

Multifunctional nanosized metal-organic frameworks (NMOFs) have advanced rapidly over the past decade to develop drug delivery systems (DDSs). These material systems still lack precise and selective cellular targeting, as well as the fast release of the quantity of drugs that are simply adsorbed within and on the external surface of nanocarriers, which hinders their application in the drug delivery. Herein, we designed a biocompatible Zr-based NMOF with an engineered core and the hepatic tumor-targeting ligand, glycyrrhetinic acid grafted to polyethyleneimine (PEI) as the shell. The improved core-shell serves as a superior nanoplatform for efficient controlled and active delivery of the anticancer drug doxorubicin (DOX) against hepatic cancer cells (HepG2 cells). In addition to their high loading capacity of 23%, the developed nanostructure DOX@NMOF-PEI-GA showed an acidic pH-stimulated response and extended the drug release time to 9 days as well as enhanced the selectivity toward the tumor cells. Interestingly, the DOX-free nanostructures showed a minimal toxic effect on both normal human skin fibroblast (HSF) and hepatic cancer cell line (HepG2), but the DOX-loaded nanostructures exhibited a superior killing effect toward the hepatic tumor, thus opening the way for the active drug delivery and achieving efficient cancer therapy applications.
