Orbán Gábor, Dohy Zsófia, Suhai Ferenc Imre, Nagy Anikó Ilona, Salló Zoltán, Boga Márton, Kiss Máté, Kunze Karl, Neji Radhouene, Botnar Rene, Prieto Claudia, Gellér László, Merkely Béla, Vágó Hajnalka, Szegedi Nándor
Heart and Vascular Center, Semmelweis University, Budapest, Hungary.
Siemens Healthcare Hungary, Budapest, Hungary.
Front Cardiovasc Med. 2023 Jun 16;10:1177347. doi: 10.3389/fcvm.2023.1177347. eCollection 2023.
Left atrial appendage (LAA) thrombus is the most common source of embolization in atrial fibrillation (AF). Transesophageal echocardiography (TEE) is the gold standard method for LAA thrombus exclusion. Our pilot study aimed to compare the efficacy of a new non-contrast-enhanced cardiac magnetic resonance (CMR) sequence (BOOST) with TEE for the detection of LAA thrombus and to evaluate the usefulness of BOOST images for planning radiofrequency catheter ablation (RFCA) compared with left atrial (LA) contrast-enhanced computed tomography (CT). We also attempted to assess the patients' subjective experiences with TEE and CMR.
Patients with AF undergoing either electrical cardioversion or RFCA were enrolled. Participants underwent pre-procedural TEE and CMR scans to evaluate LAA thrombus status and pulmonary vein anatomy. Patient experiences with TEE and CMR were assessed using a questionnaire developed by our team. Some patients scheduled for RFCA also had pre-procedural LA contrast-enhanced CT. In such cases, the operating physician was asked to subjectively define the quality of the CT and CMR scan on a scale of 1-10 (1 = worst, 10 = best) and comment on CMR's usefulness in RFCA planning.

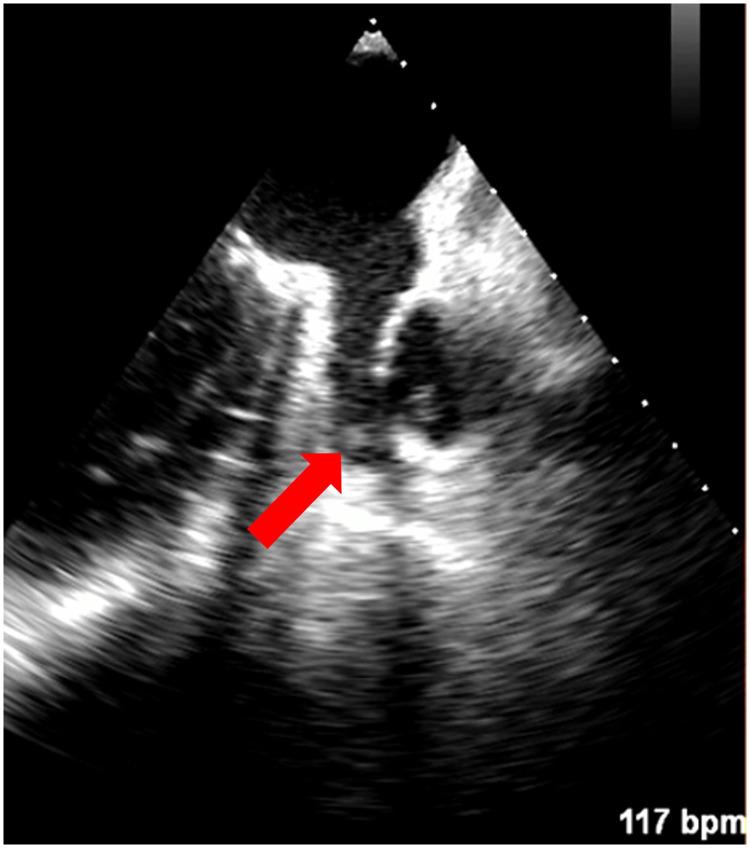

Seventy-one patients were enrolled. In 94.4%, both TEE and CMR excluded, and in 1 patient, both modalities reported the presence of LAA thrombus. In 1 patient, TEE was inconclusive, but CMR excluded LAA thrombus. In 2 patients, CMR could not exclude the presence of thrombus, but in 1 of those cases, TEE was also indecisive. During TEE, 67%, during CMR, only 1.9% of patients reported pain ( < 0.0001), and 89% would prefer CMR in case of a repeat examination. The quality of the left atrial contrast-enhanced CT scans was better compared with the image quality of the CMR BOOST sequence [8 (7-9) vs. 6 (5-7), < 0.0001]. Still, the CMR images were useful for procedural planning in 91% of cases.

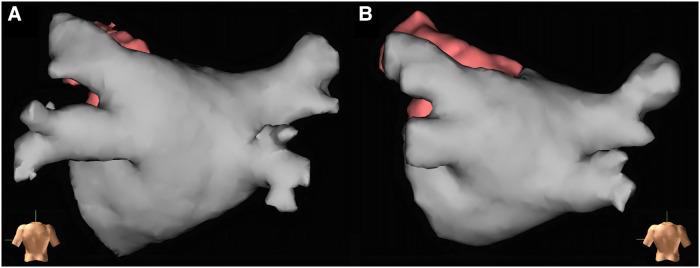

The new CMR BOOST sequence provides appropriate image quality for ablation planning. The sequence might be useful for excluding larger LAA thrombi; however, its accuracy in detecting smaller thrombi is limited. Most patients preferred CMR over TEE in this indication.
左心耳(LAA)血栓是心房颤动(AF)中最常见的栓塞来源。经食管超声心动图(TEE)是排除LAA血栓的金标准方法。我们的初步研究旨在比较一种新的非对比增强心脏磁共振(CMR)序列(BOOST)与TEE在检测LAA血栓方面的疗效,并评估与左心房(LA)对比增强计算机断层扫描(CT)相比,BOOST图像在规划射频导管消融(RFCA)中的实用性。我们还试图评估患者对TEE和CMR的主观体验。
纳入接受电复律或RFCA的AF患者。参与者在术前接受TEE和CMR扫描,以评估LAA血栓状态和肺静脉解剖结构。使用我们团队编制的问卷评估患者对TEE和CMR的体验。一些计划进行RFCA的患者还在术前进行了LA对比增强CT检查。在这种情况下,要求手术医生以1-10分的量表主观定义CT和CMR扫描的质量(1=最差,10=最好),并评论CMR在RFCA规划中的实用性。
共纳入71例患者。94.4%的患者TEE和CMR均排除LAA血栓,1例患者两种检查方式均报告存在LAA血栓。1例患者TEE结果不确定,但CMR排除了LAA血栓。2例患者CMR不能排除血栓存在,但其中1例TEE结果也不明确。在TEE检查期间,67%的患者报告疼痛,而在CMR检查期间,只有1.9%的患者报告疼痛(P<0.0001),89%的患者在重复检查时更倾向于CMR。与CMR BOOST序列的图像质量相比,LA对比增强CT扫描的质量更好[8(7-9)对6(5-7),P<0.0001]。尽管如此,CMR图像在91%的病例中对手术规划有用。
新的CMR BOOST序列为消融规划提供了合适的图像质量。该序列可能有助于排除较大的LAA血栓;然而,其检测较小血栓的准确性有限。在该适应症中,大多数患者更喜欢CMR而非TEE。
