Institute for Tissue Engineering and Regenerative Medicine, Helmholtz Center Munich, Neuherberg, Germany.
Institute for Stroke and Dementia Research, Medical Centre of the University of Munich, Ludwig-Maximilians University of Munich, Munich, Germany.
Nat Biotechnol. 2024 Apr;42(4):617-627. doi: 10.1038/s41587-023-01846-0. Epub 2023 Jul 10.

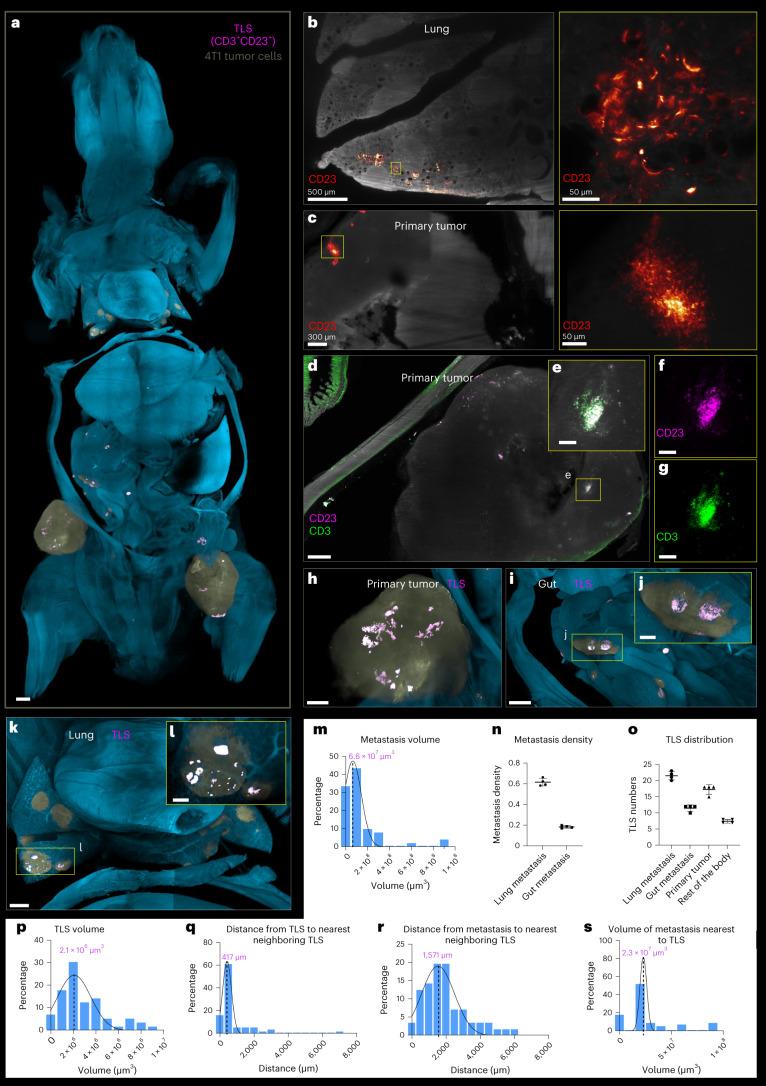

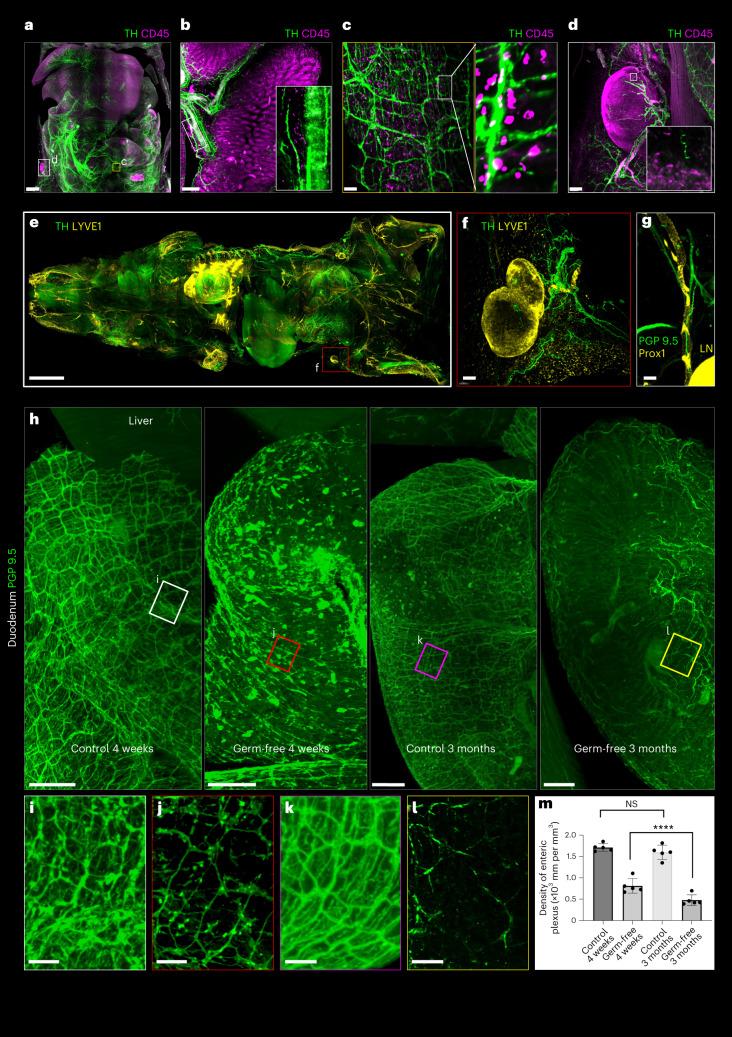

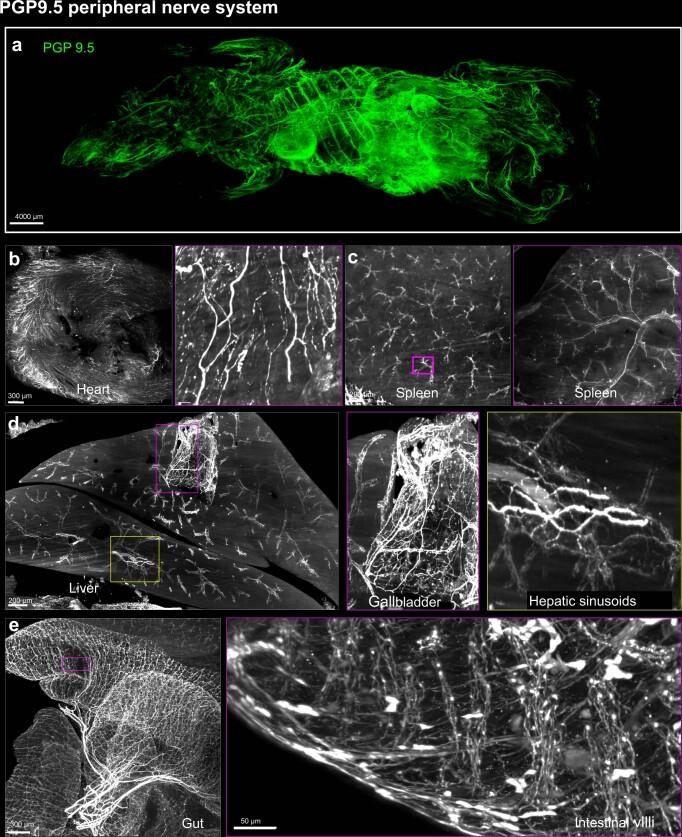

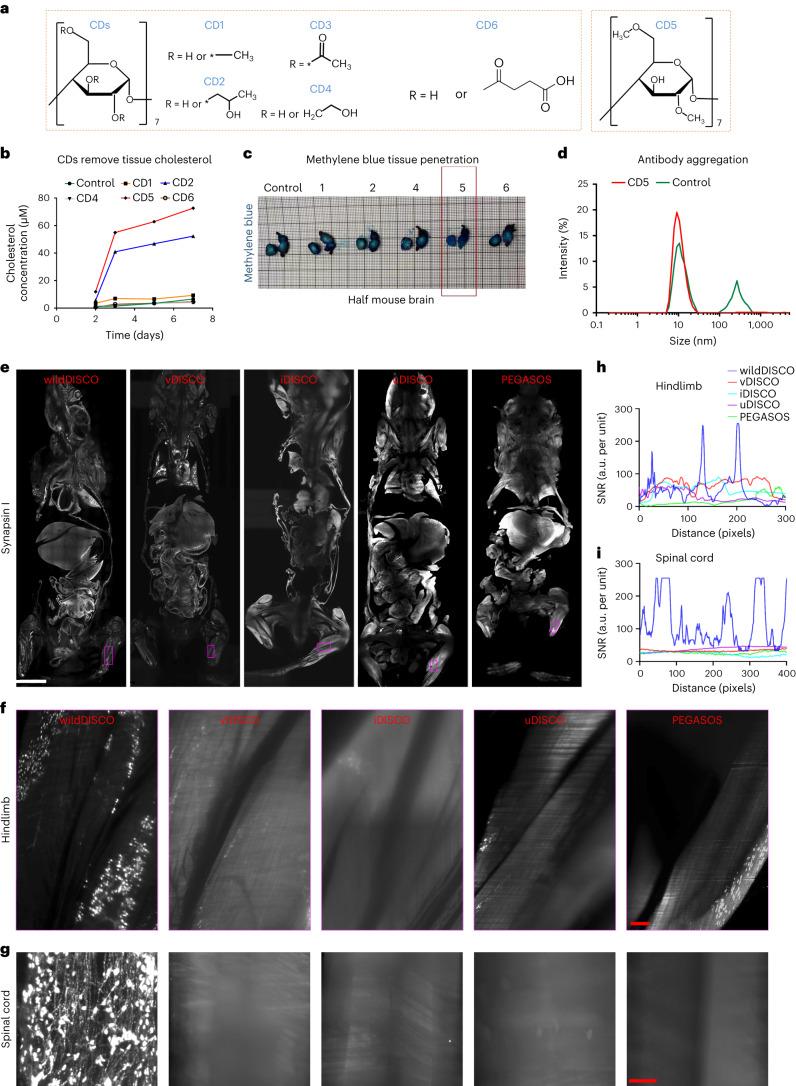

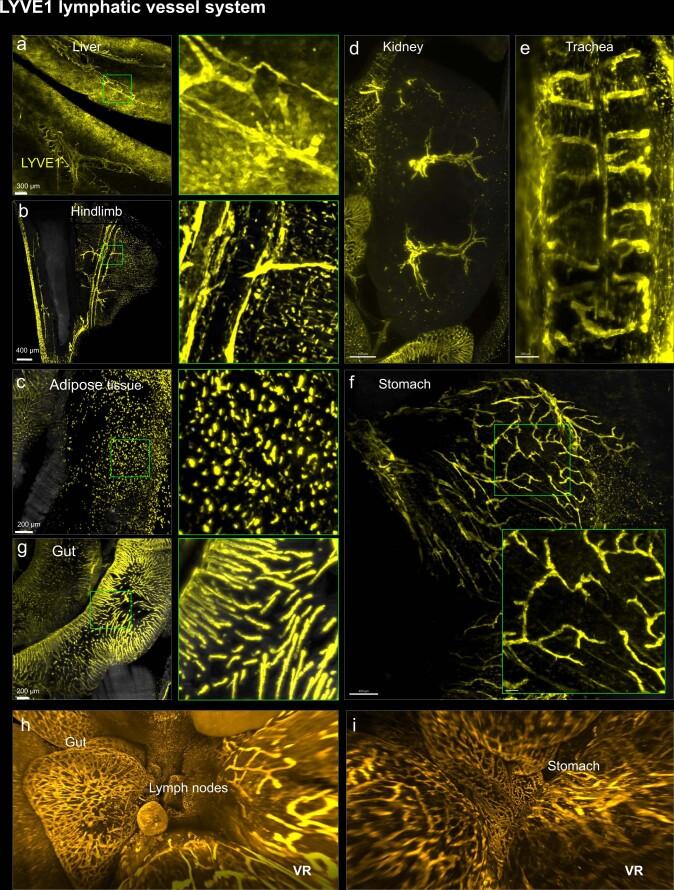

Whole-body imaging techniques play a vital role in exploring the interplay of physiological systems in maintaining health and driving disease. We introduce wildDISCO, a new approach for whole-body immunolabeling, optical clearing and imaging in mice, circumventing the need for transgenic reporter animals or nanobody labeling and so overcoming existing technical limitations. We identified heptakis(2,6-di-O-methyl)-β-cyclodextrin as a potent enhancer of cholesterol extraction and membrane permeabilization, enabling deep, homogeneous penetration of standard antibodies without aggregation. WildDISCO facilitates imaging of peripheral nervous systems, lymphatic vessels and immune cells in whole mice at cellular resolution by labeling diverse endogenous proteins. Additionally, we examined rare proliferating cells and the effects of biological perturbations, as demonstrated in germ-free mice. We applied wildDISCO to map tertiary lymphoid structures in the context of breast cancer, considering both primary tumor and metastases throughout the mouse body. An atlas of high-resolution images showcasing mouse nervous, lymphatic and vascular systems is accessible at http://discotechnologies.org/wildDISCO/atlas/index.php .
全身成像技术在探索生理系统在维持健康和驱动疾病方面的相互作用方面发挥着至关重要的作用。我们介绍了 wildDISCO,这是一种新的用于小鼠全身免疫标记、光学透明化和成像的方法,避免了对转基因报告动物或纳米体标记的需求,从而克服了现有技术的限制。我们确定了 heptakis(2,6-二-O-甲基)-β-环糊精作为胆固醇提取和膜通透性增强剂的潜力,使标准抗体能够均匀深入地渗透,而不会聚集。wildDISCO 通过标记各种内源性蛋白质,能够以细胞分辨率对整个小鼠的外周神经系统、淋巴管和免疫细胞进行成像。此外,我们还研究了稀有增殖细胞和生物干扰的影响,如无菌小鼠中所证明的那样。我们将 wildDISCO 应用于乳腺癌中三级淋巴结构的研究,同时考虑了整个小鼠体内的原发性肿瘤和转移瘤。一个展示小鼠神经、淋巴和血管系统的高分辨率图像图谱可在 http://discotechnologies.org/wildDISCO/atlas/index.php 上获得。
