Compact and Polarization Insensitive Satellite Band Perfect Metamaterial Absorber for Effective Electromagnetic Communication System.

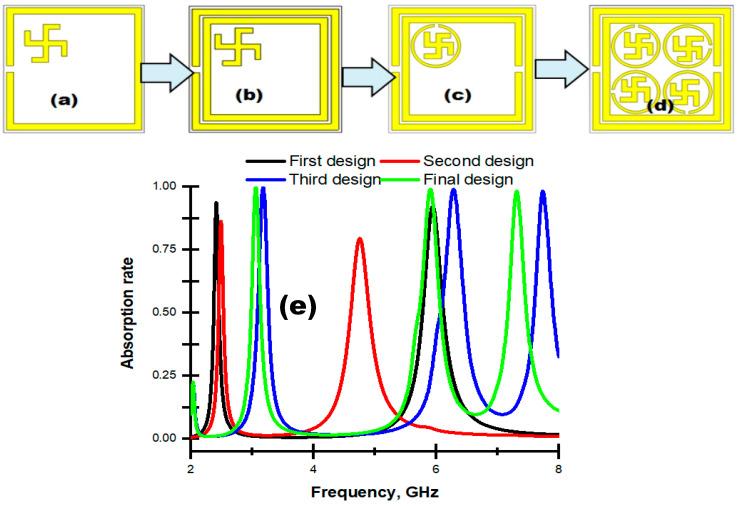

A commercially viable metal-dielectric-metal configured triple-band metamaterial absorber is offered in this paper. It is an aggregation of four compact symmetric circles, with a swastika-shaped metal structure, which are bonded by two split-ring resonators (SRRs). Copper (annealed) of electrical conductivity 5.8 × 10 Sm is used for the ground plate and resonator portion of the top layer and an FR 4 dielectric of permittivity 4.3 is used as a substrate. The structural parameters of the unit cell were determined by a trial and error method. FIT-based 3D simulation software (CST microwave studio, 2019 version was used to characterize the proposed perfect metamaterial absorber (PMA). Three resonance peaks were observed at frequencies 3.03, 5.83 and 7.23 GHz with an absorbance of 99.84%, 99.03% and 98.26%, respectively. The numerical result has been validated by some authentic validation methods. Finally, a microwave network analyzer (PNA) of Agilent N5227 with waveguide ports were deployed for measurement. The simulation and experimental results show better harmony. The proposed PMA has a unique design and a small dimension with higher absorption compared to other contemporary studies. This special type of polarization, insensitive S- and C-band PMA, is designed for a telecommunication system via full-time raw satellite and radar feeds.
