Department of Orthopedics and Trauma Surgery, Faculty of Medicine, Medical Center - University of Freiburg, University of Freiburg, Freiburg, Germany.
Department of Spine Surgery, Loretto Hospital, Freiburg, Germany.
BMC Musculoskelet Disord. 2023 Oct 6;24(1):791. doi: 10.1186/s12891-023-06911-y.

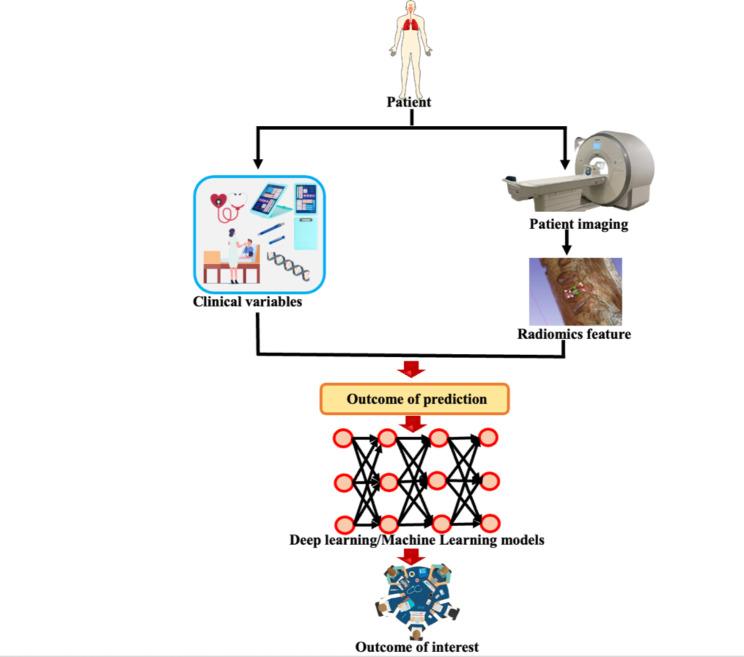

Low back pain is a widely prevalent symptom and the foremost cause of disability on a global scale. Although various degenerative imaging findings observed on magnetic resonance imaging (MRI) have been linked to low back pain and disc herniation, none of them can be considered pathognomonic for this condition, given the high prevalence of abnormal findings in asymptomatic individuals. Nevertheless, there is a lack of knowledge regarding whether radiomics features in MRI images combined with clinical features can be useful for prediction modeling of treatment success. The objective of this study was to explore the potential of radiomics feature analysis combined with clinical features and artificial intelligence-based techniques (machine learning/deep learning) in identifying MRI predictors for the prediction of outcomes after lumbar disc herniation surgery.
We included n = 172 patients who underwent discectomy due to disc herniation with preoperative T2-weighted MRI examinations. Extracted clinical features included sex, age, alcohol and nicotine consumption, insurance type, hospital length of stay (LOS), complications, operation time, ASA score, preoperative CRP, surgical technique (microsurgical versus full-endoscopic), and information regarding the experience of the performing surgeon (years of experience with the surgical technique and the number of surgeries performed at the time of surgery). The present study employed a semiautomatic region-growing volumetric segmentation algorithm to segment herniated discs. In addition, 3D-radiomics features, which characterize phenotypic differences based on intensity, shape, and texture, were extracted from the computed magnetic resonance imaging (MRI) images. Selected features identified by feature importance analyses were utilized for both machine learning and deep learning models (n = 17 models).
The mean accuracy over all models for training and testing in the combined feature set was 93.31 ± 4.96 and 88.17 ± 2.58. The mean accuracy for training and testing in the clinical feature set was 91.28 ± 4.56 and 87.69 ± 3.62.
Our results suggest a minimal but detectable improvement in predictive tasks when radiomics features are included. However, the extent of this advantage should be considered with caution, emphasizing the potential of exploring multimodal data inputs in future predictive modeling.
腰痛是一种广泛存在的症状,也是全球范围内首要的致残原因。尽管磁共振成像(MRI)上观察到的各种退行性影像学发现与腰痛和椎间盘突出有关,但由于无症状个体中异常发现的高发生率,这些发现都不能被认为是这种疾病的特征性表现。然而,对于 MRI 图像中的放射组学特征与临床特征相结合是否可用于治疗成功的预测建模,目前还缺乏相关知识。本研究旨在探讨放射组学特征分析与临床特征和基于人工智能的技术(机器学习/深度学习)相结合,在识别 MRI 预测因子以预测腰椎间盘突出症手术后结果方面的潜力。
我们纳入了 172 例因椎间盘突出症而行椎间盘切除术的患者,这些患者均在术前进行了 T2 加权 MRI 检查。提取的临床特征包括性别、年龄、酒精和尼古丁的使用情况、保险类型、住院时间(LOS)、并发症、手术时间、ASA 评分、术前 CRP、手术技术(显微镜下手术与全内窥镜手术),以及手术医生经验相关信息(手术技术的经验年限和手术时的手术次数)。本研究采用半自动区域生长容积分割算法对突出的椎间盘进行分割。此外,从计算磁共振成像(MRI)图像中提取了 3D 放射组学特征,这些特征基于强度、形状和纹理来描述表型差异。通过特征重要性分析选择的特征被用于机器学习和深度学习模型(n=17 个模型)。
在综合特征集的训练和测试中,所有模型的平均准确率为 93.31±4.96 和 88.17±2.58。在临床特征集的训练和测试中,所有模型的平均准确率为 91.28±4.56 和 87.69±3.62。
我们的研究结果表明,当纳入放射组学特征时,预测任务有微小但可检测的改进。然而,应该谨慎考虑这种优势的程度,强调在未来的预测建模中探索多模态数据输入的潜力。
