Wang Yun
Computer Science and Information Systems, Bradley University, Peoria, IL 61625, USA.
Sensors (Basel). 2023 Nov 9;23(22):9058. doi: 10.3390/s23229058.

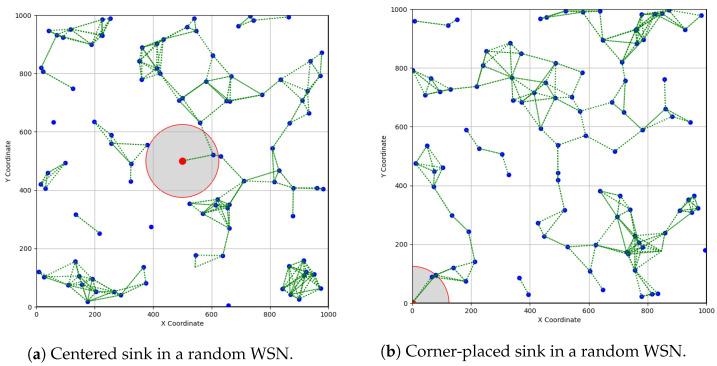

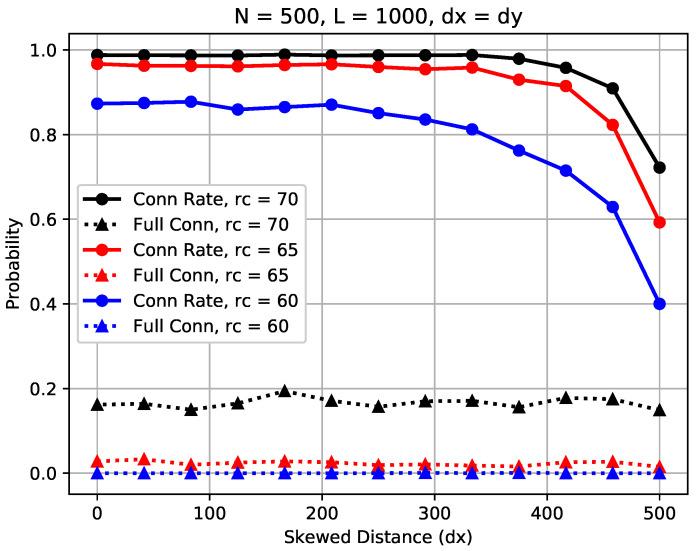

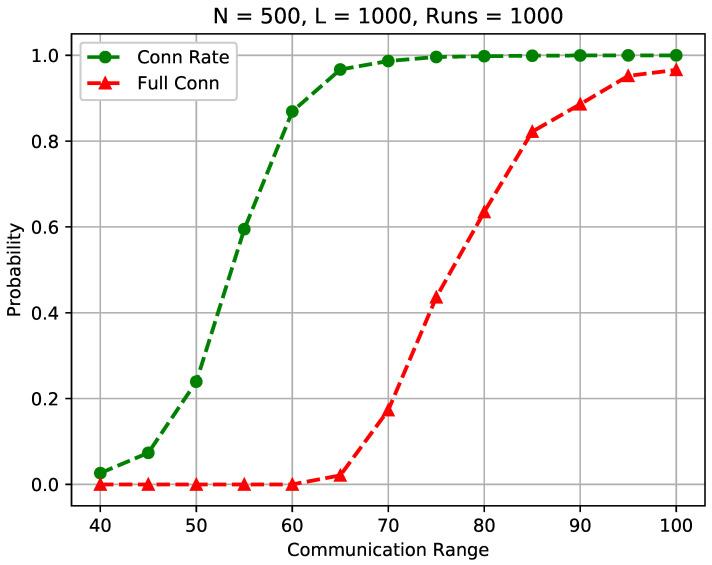

This research delves into the aspects of communication and connectivity problems within random Wireless Sensor Networks (WSNs). It takes into account the distinctive role of the sink node, its placement, and application-specific requirements for effective communication while conserving valuable network resources. Through mathematical modeling, theoretical analysis, and simulation evaluations, we derive, compare, and contrast the probabilities of partial and full connectivity within a random WSN, factoring in network parameters and the maximum allowable hop distance/count hmax. hmax captures the diverse range of delay-sensitive requirements encountered in practical scenarios. Our research underscores the significant impact of the sink node and its placement on network connectivity and the sensor connection rate. The results exemplify a noteworthy decline in the sensor connection rate, dropping from 98.8% to 72.5%, upon relocating the sink node from the network center to the periphery. Moreover, as compared with full connectivity, partial connectivity and the sensor connection rate are more suitable metrics for assessing the communication capability of random WSNs. The results illustrate that 1.367 times energy is required to connect less than 4% of the remote sensors, based on the examined network settings. Additionally, to increase the sensor connection rate slightly from 96% to 100%, an additional 538% more energy is required in multipath fading based on the widely adopted energy consumption model. This research and its outcomes contribute to establishing appropriate performance metrics and determining critical network parameters for the practical design and implementation of real-world wireless sensor networks.
本研究深入探讨了随机无线传感器网络(WSN)中的通信和连接问题。它考虑了汇聚节点的独特作用、其放置位置以及在有效通信同时节省宝贵网络资源的特定应用要求。通过数学建模、理论分析和仿真评估,我们推导、比较并对比了随机WSN中部分连接和完全连接的概率,同时考虑了网络参数和最大允许跳距/跳数hmax。hmax体现了实际场景中遇到的各种对延迟敏感的要求。我们的研究强调了汇聚节点及其放置位置对网络连接性和传感器连接率的重大影响。结果表明,将汇聚节点从网络中心移至边缘时,传感器连接率显著下降,从98.8%降至72.5%。此外,与完全连接相比,部分连接和传感器连接率是评估随机WSN通信能力更合适的指标。结果表明,根据所研究的网络设置,连接不到4%的远程传感器需要1.367倍的能量。此外,根据广泛采用的能耗模型,在多径衰落情况下,要将传感器连接率从96%略微提高到100%,需要额外538%的能量。本研究及其成果有助于为实际的无线传感器网络的设计和实施建立合适的性能指标并确定关键网络参数。
