Hexagonal Boron Nitride as Filler for Silica-Based Elastomer Nanocomposites.

作者信息

Magaletti Federica, Prioglio Gea, Giese Ulrich, Barbera Vincenzina, Galimberti Maurizio

机构信息

Department of Chemistry, Materials and Chemical Engineering "G. Natta", Politecnico di Milano, Via Mancinelli 7, 20131 Milano, Italy.

Deutsches Institut für Kautschuktechnologie e. V., Eupener Straße 33, 30519 Hannover, Germany.

出版信息

Nanomaterials (Basel). 2023 Dec 21;14(1):30. doi: 10.3390/nano14010030.


DOI:10.3390/nano14010030
PMID:38202486
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC10780802/
Abstract

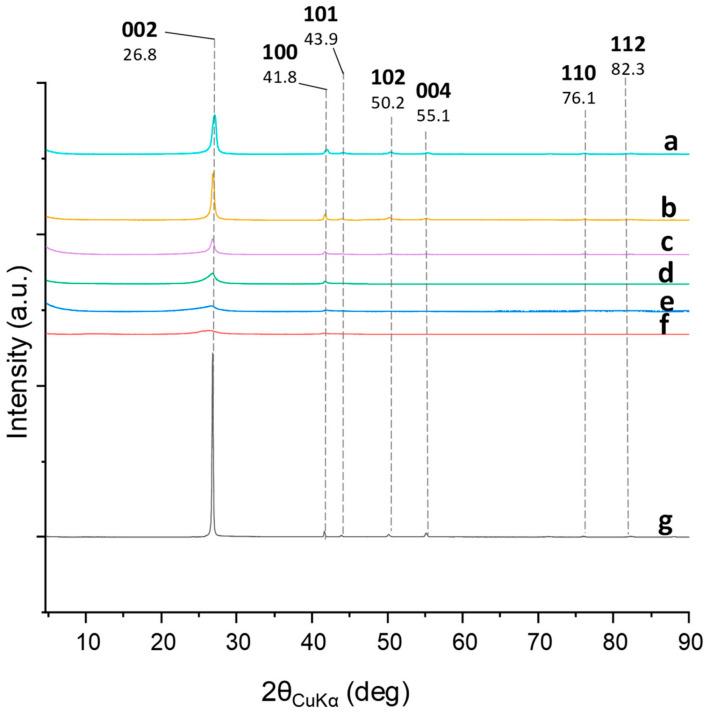

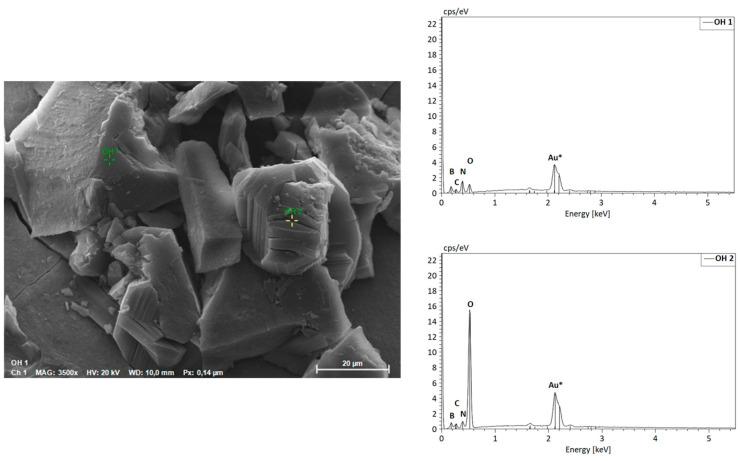

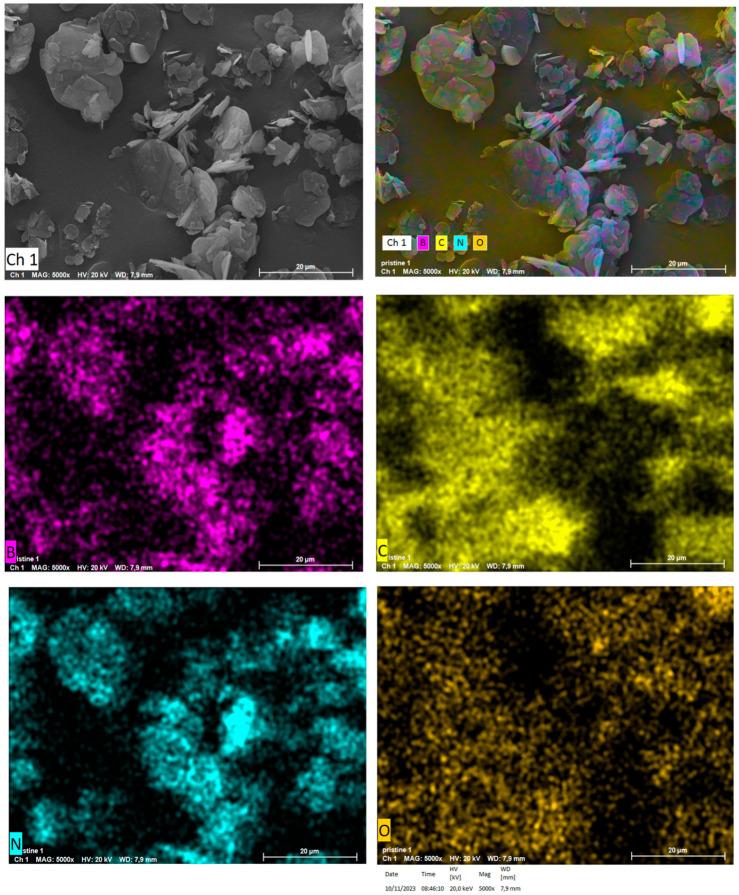

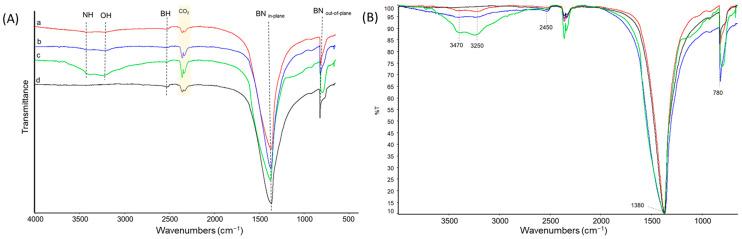

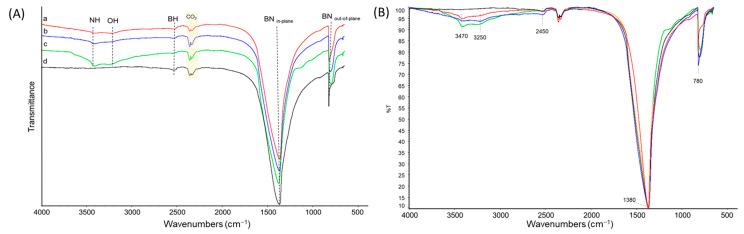

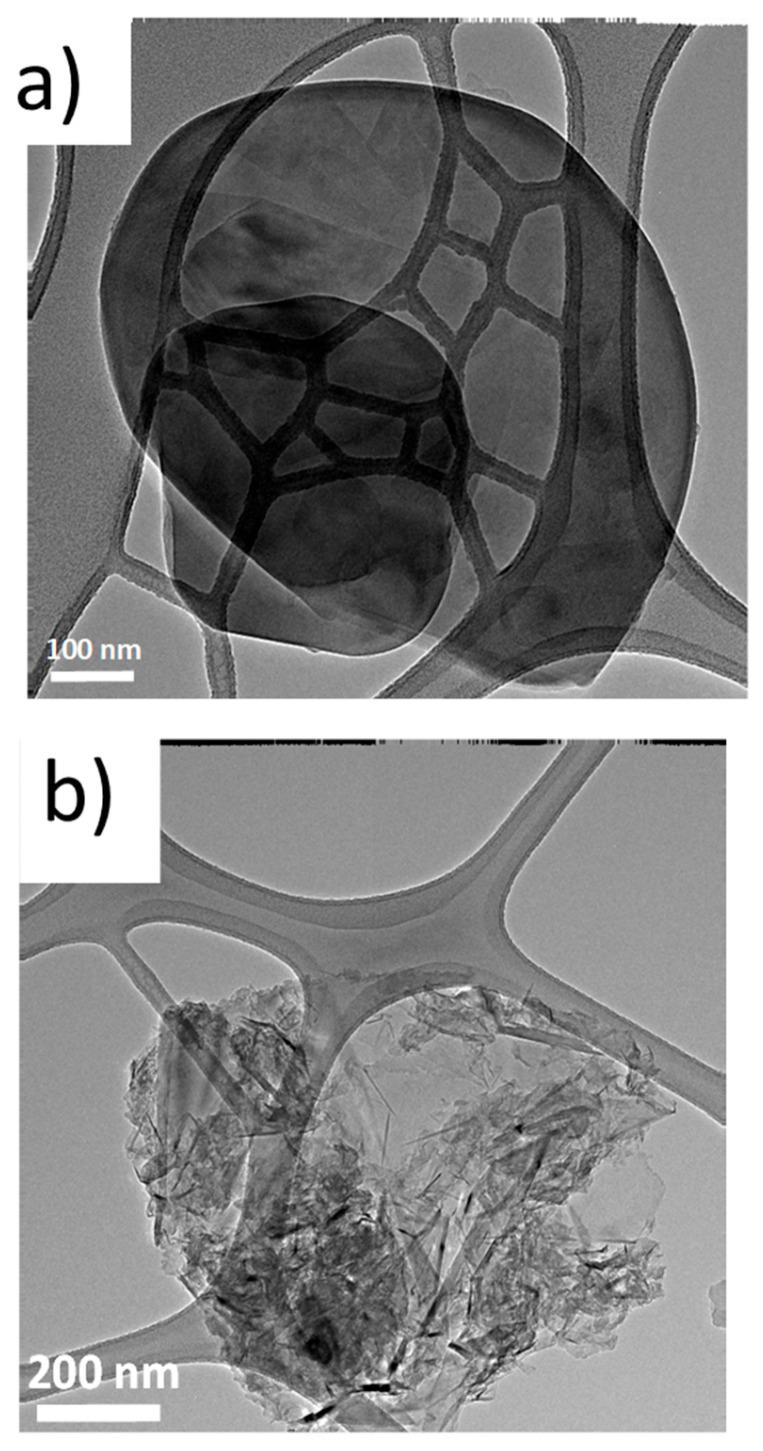

Two-dimensional hexagonal boron nitride (hBN) has attracted tremendous attention over the last few years, thanks to its stable structure and its outstanding properties, such as mechanical strength, thermal conductivity, electrical insulation, and lubricant behavior. This work demonstrates that hBN can also improve the rheological and mechanical properties of elastomer composites when used to partially replace silica. In this work, commercially available pristine hBN (hBN-p) was exfoliated and ball-mill treated in air for different durations (2.5, 5, and 10 h milling). Functionalization occurred with the -NH and -OH groups (hBN-OH). The functional groups were detected using Fourier-Transform Infrared pectroscopy (FT-IR) and were estimated to be up to about 7% through thermogravimetric analysis. The presence of an increased amount of oxygen in hBN-OH was confirmed using Scanning Electron Microscopy coupled with Energy-Dispersive X-ray Spectroscopy. (SEM-EDS). The number of stacked layers, estimated using WAXD analysis, decreased to 8-9 in hBN-OH (10 h milling) from about 130 in hBN-p. High-resolution transmission electron microscopy (HR-TEM) and SEM-EDS revealed the increase in disorder in hBN-OH. hBN-p and hBN-OH were used to partially replace silica by 15% and 30%, respectively, by volume, in elastomer composites based on poly(styrene-co-butadiene) from solution anionic polymerization (S-SBR) and poly(1,4-cis-isoprene) from (natural rubber, NR) as the elastomers (volume (mm) of composites released by the instrument). The use of both hBNs in substitution of 30% of silica led to a lower Payne effect, a higher dynamic rigidity, and an increase in E' of up to about 15% at 70 °C, with similar/lower hysteresis. Indeed, the composites with hBN-OH revealed a better balance of tan delta (higher at low temperatures and lower at high temperatures) and better ultimate properties. The functional groups reasonably promote the interaction of hBN with silica and with the silica's coupling agent, sulfur-based silane, and thus promoted the interaction with the elastomer chains. The volume of the composite, measured using a high-pressure capillary viscometer, increased by about 500% and 400% after one week of storage in the presence of hBN-p and hBN-OH. Hence, both hBNs improved the processability and the shelf life of the composites. Composites obtained using hBN-OH had even filler dispersion without the detachments of the filler from the elastomer matrix, as shown through TEM micrographs. These results pave the way for substantial improvements in the important properties of silica-based composites for tire compounds, used to reduce rolling resistance and thus the improve environmental impacts.

摘要
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/022a63bedbe0/nanomaterials-14-00030-g016a.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/0c61cbd53f28/nanomaterials-14-00030-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/2f8c0e0364e0/nanomaterials-14-00030-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/acaf870d1462/nanomaterials-14-00030-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/ee66b4986415/nanomaterials-14-00030-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/d5a29f835e56/nanomaterials-14-00030-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/a607c1045105/nanomaterials-14-00030-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/5e26e7ff0481/nanomaterials-14-00030-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/02c28621cb46/nanomaterials-14-00030-g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/69c371a529ab/nanomaterials-14-00030-g009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/131c346fc4f5/nanomaterials-14-00030-g010.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/9d4e971445d3/nanomaterials-14-00030-g011.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/67a394cfb69b/nanomaterials-14-00030-g012.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/bba4a45810c5/nanomaterials-14-00030-g013a.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/96b6ffa38ea6/nanomaterials-14-00030-g014.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/a6415979fb2e/nanomaterials-14-00030-g015.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/022a63bedbe0/nanomaterials-14-00030-g016a.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/0c61cbd53f28/nanomaterials-14-00030-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/2f8c0e0364e0/nanomaterials-14-00030-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/acaf870d1462/nanomaterials-14-00030-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/ee66b4986415/nanomaterials-14-00030-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/d5a29f835e56/nanomaterials-14-00030-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/a607c1045105/nanomaterials-14-00030-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/5e26e7ff0481/nanomaterials-14-00030-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/02c28621cb46/nanomaterials-14-00030-g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/69c371a529ab/nanomaterials-14-00030-g009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/131c346fc4f5/nanomaterials-14-00030-g010.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/9d4e971445d3/nanomaterials-14-00030-g011.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/67a394cfb69b/nanomaterials-14-00030-g012.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/bba4a45810c5/nanomaterials-14-00030-g013a.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/96b6ffa38ea6/nanomaterials-14-00030-g014.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/a6415979fb2e/nanomaterials-14-00030-g015.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/35b4/10780802/022a63bedbe0/nanomaterials-14-00030-g016a.jpg
