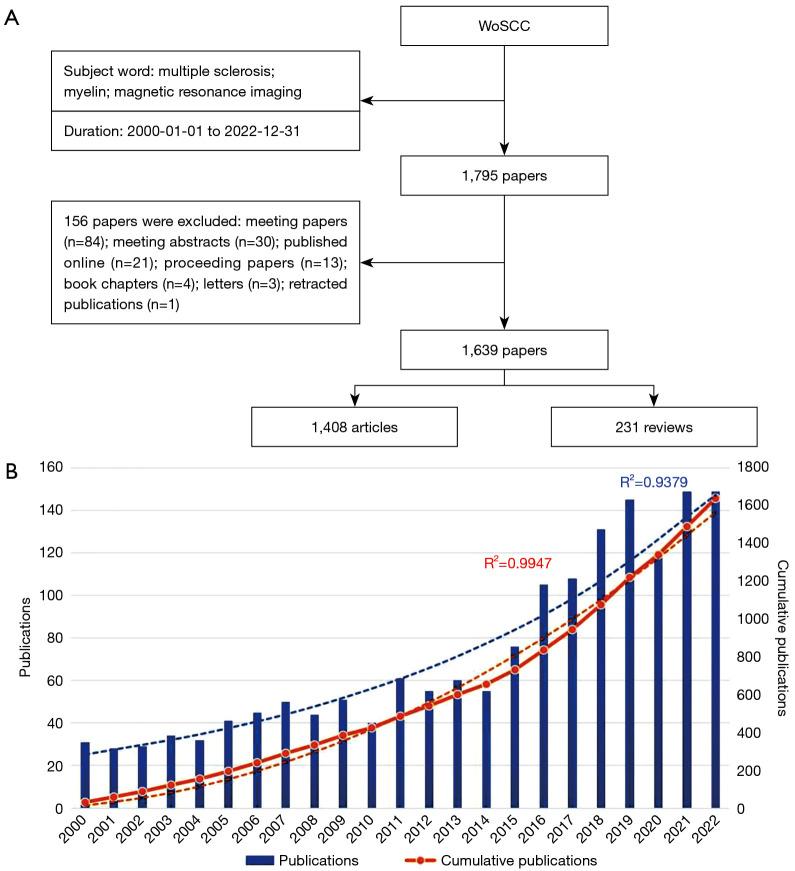

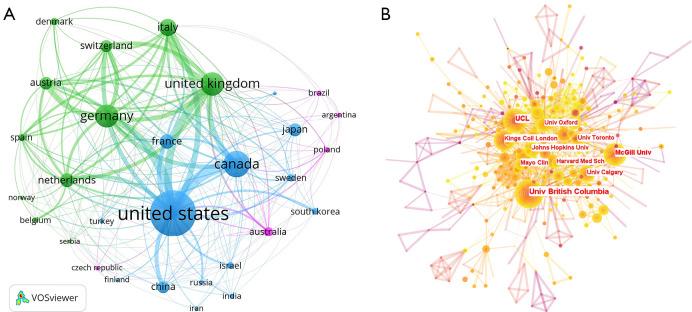

BACKGROUND: Multiple sclerosis (MS) is a condition that can impact the central nervous system (CNS) and cause damage to the myelin, which is responsible for facilitating the normal transmission of electrical impulses along the nerves. We performed a bibliometric analysis of the scientific publications on myelin imaging in MS to reveal the development trends in this field and to evaluate research trends in myelin imaging in MS. METHODS: The Web of Science Core Collection was searched for articles related to myelin imaging in MS published between January 2000 and December 2022. CiteSpace, VOSviewer, and R language were used to evaluate and visualize contributions by and co-occurrence relationships among countries and institutions, authors, journals, citations, keywords, and so on. RESULTS: A total of 1,639 articles addressed the topic of myelin imaging in MS. The United States had the largest number of annual publications. The University of London was the institution with the highest number of publications (n=118) and citations (n=9,885). The top 3 productive authors were all from the University of British Columbia in Canada. An article published by Mackay in 1994 had the most citations (n=272). [impact factor (IF) =7.40, Journal Citation Reports quartile 1 (Q1)] was the most productive journal in terms of the number of articles relating to myelin imaging in MS (n=149). In recent years, myelin water imaging, synthetic magnetic resonance imaging (SyMRI), inhomogeneous magnetization, positron emission tomography (PET) imaging, and aquaporin-4 (AQP4) have been researched hotspots of myelin imaging in MS. CONCLUSIONS: With advancements in the pathophysiological research on myelin changes in MS, myelin imaging is playing an important role in the diagnosis and treatment of MS. In addition, the use of new sequences of myelin imaging to distinguish MS from other inflammatory demyelinating diseases is a future development trend in this field.
