One Factor at a Time and factorial experimental design for formulation of l-carnitine microcapsules to improve its manufacturability.

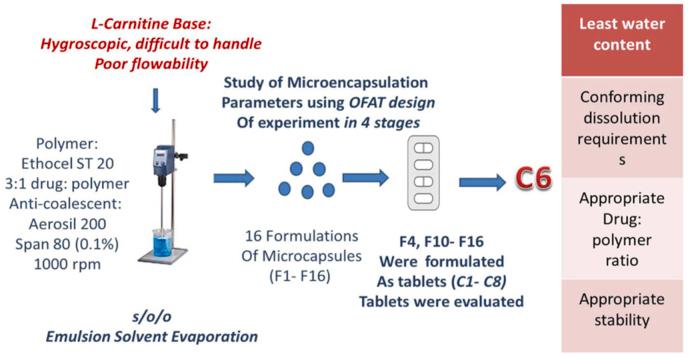

l-carnitine is an essential dietary supplement of physiological importance. Handling and manufacture of l-carnitine is difficult due to its hygroscopic nature, resulting in impairing its flow properties, as well as solid dosage form stability. The study aimed at reducing l-carnitine hygroscopicity through its encapsulation within a hydrophobic, pH-insensitive polymer. A solid in oil in oil (s/o/o) emulsion solvent evaporation technique for microencapsulation was adopted to exclude the possibility of water uptake. The polymers used were two ethyl cellulose (EC) grades with different viscosities. The chosen solvent for the polymer was acetone, and liquid paraffin was the dispersion medium in which both the drug and polymer were insoluble. Sixteen formulations were developed, and evaluated to study the formulation parameters as anti-coalescent type, mixing speed, surfactant type and polymer ratio, and viscosity grade. A "One Factor at A Time" (OFAT) design of experiment, and a factorial design were utilized. Study results revealed that successful microencapsulation occurred by using Aerosil 200 (0.1 %) as anti-coalescent, a mixing speed of 1000 rpm, and Ethocel Std 20 at a 3:1 drug-to-polymer ratio. Microcapsule formulation containing l-carnitine base, successfully compressed into tablets, showed acceptable water content, disintegration time, hardness, and dissolution. Moreover, it showed acceptable stability upon storage at 40 °C at 75 % RH for six months compared to l-carnitine tablets prepared by wet granulation.
