Pietkiewicz Paweł, Navarrete-Dechent Cristian, Togawa Yaei, Szlązak Piotr, Salwowska Natalia, Marghoob Ashfaq A, Leszczyńska-Pietkiewicz Agnieszka, Errichetti Enzo
Zwierzyniecka Medical Center, Zwierzyniecka 30/28, 60-814, Poznań, Poland.
Polish Dermatoscopy Group, Poznań, Poland.
Dermatol Ther (Heidelb). 2024 Feb;14(2):361-390. doi: 10.1007/s13555-024-01104-4. Epub 2024 Feb 15.

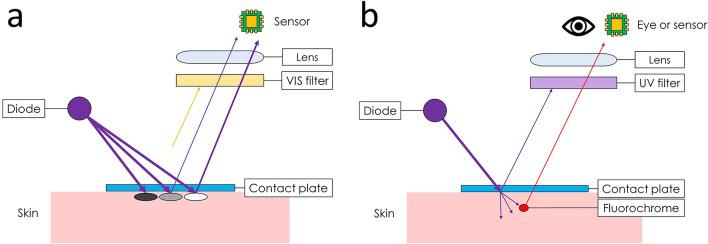

Dermatoscopy is a non-invasive and cost-efficient imaging technique augmenting clinical examination in neoplastic and non-neoplastic dermatoses. Recently, novel dermatoscopic techniques based on principles of reflectance/absorption and excited fluorescence have been developed. However, comprehensive data on their applications are sparse, and terminology is inconsistent. In this systematic review, we addressed the principles of ultraviolet (UV) imaging and proposed categorization based on spectral characteristics and signal acquisition, as well as discussed documented and potential clinical applications, safety measures during examination, and limitations associated with reflectance and fluorescence dermatoscopy. A literature search was conducted in the PubMed medical database until 2 December 2023 according to PRISMA guidelines, and 28 papers fit the scope of this review, whereas additional relevant articles were included to provide broader context regarding the chosen terminology, chromophores described, safety of sub-UV/UV, and regulations for light-emitting devices. UV and sub-UV dermatoscopy, categorized into different methods on the basis of the emitted wavelength and signal acquisition process (reflectance versus fluorescence), augment conventional dermatoscopy by optimizing safety margins in melanoma, facilitating early detection of tumor recurrence, and enhancing visualization in non-neoplastic conditions, including pigmentation disorders, intertrigo, papulo-desquamative dermatoses, and beyond. The review highlights the limitations of these techniques, including difficulty in differentiating melanin from hemoglobin, challenges in evaluating uneven surfaces, and artifacts. Although UV dermatoscopy complements conventional dermatoscopy, clinicians should be aware of their peculiarities, artifacts, limitations, and safety concerns to optimize their diagnostic accuracy and ensure patient's safety.
皮肤镜检查是一种非侵入性且经济高效的成像技术,可辅助对肿瘤性和非肿瘤性皮肤病进行临床检查。最近,基于反射/吸收原理和激发荧光原理的新型皮肤镜技术已被开发出来。然而,关于其应用的全面数据较为稀少,且术语也不一致。在本系统评价中,我们阐述了紫外线(UV)成像的原理,并基于光谱特征和信号采集提出了分类方法,还讨论了已记录的和潜在的临床应用、检查期间的安全措施以及与反射式和荧光式皮肤镜检查相关的局限性。根据PRISMA指南,在PubMed医学数据库中进行了文献检索,直至2023年12月2日,有28篇论文符合本评价的范围,同时纳入了其他相关文章,以提供关于所选术语、所描述的发色团、UV/UV以下波段的安全性以及发光设备法规的更广泛背景信息。UV和UV以下波段皮肤镜检查根据发射波长和信号采集过程(反射与荧光)分为不同方法,通过优化黑色素瘤的安全边界、促进肿瘤复发的早期检测以及增强在包括色素沉着障碍、擦烂、丘疹鳞屑性皮肤病等非肿瘤性疾病中的可视化,来补充传统皮肤镜检查。本评价强调了这些技术的局限性,包括难以区分黑色素和血红蛋白、评估不平整表面时的挑战以及伪像。尽管UV皮肤镜检查补充了传统皮肤镜检查,但临床医生应了解其特点、伪像、局限性和安全问题,以优化诊断准确性并确保患者安全。
