Effect of the addition of silver nanoparticles on the mechanical properties of an orthodontic adhesive.

OBJECTIVES

This study evaluated the effects of adding silver nanoparticles on the shear bond strength, microhardness, and surface roughness of orthodontic adhesives.

MATERIAL AND METHODS

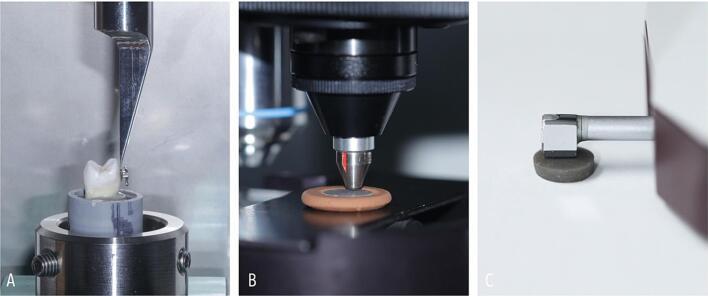

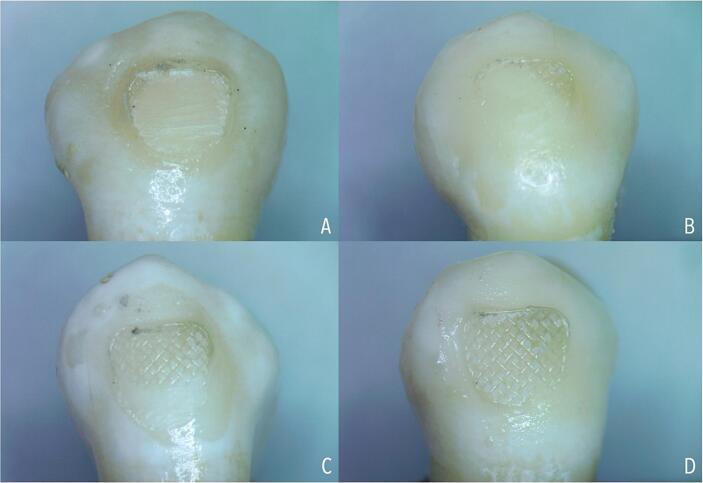

Fifty upper premolars were randomly allocated to five groups (n = 10). Orthodontic brackets were bonded with silver nanoparticle (AgNP)-modified adhesives (1 %, 0.5 %, 0.1 %, 0.05 %), and conventional adhesive was used as a control. The shear bond strength was recorded using a universal testing machine, and the adhesive remnant index was evaluated using a stereomicroscope. Ten discs of each adhesive were subjected to the microhardness and surface roughness tests. The Vickers microhardness values were measured under a constant load of 100 g for 30 s using a microhardness tester. The samples were analyzed using a surface profilometer, and the arithmetic average roughness was used as the measurement parameter. Data were analyzed using one-way analysis of variance and chi-square tests. A significance level of 5 % was considered significant.

RESULTS

AgNP concentration > 0.1 % significantly reduced the shear bond strength (p < 0.05). At higher AgNP concentration, the bonding failure pattern occurred mainly at the bracket-resin interface. The Vickers microhardness increased with increasing concentration, and significant differences were observed between the group with 1 % AgNP and the other groups (p < 0.05). The average roughness values were similar between the groups with AgNP concentrations > 0.1 % (p > 0.05).

CONCLUSION

The incorporation of AgNP into an orthodontic adhesive has the potential to decrease the shear bond strength while increasing the microhardness and surface roughness.
