State Key Laboratory of Radiation Medicine and Protection, School for Radiological and Interdisciplinary Sciences (RAD-X), Collaborative Innovation Center of Radiation Medicine of Jiangsu Higher Education Institutions, Soochow University, Suzhou, 215123, China.
School of Nuclear Science and Technology, University of Science and Technology of China, Hefei, 230026, China.
Nat Commun. 2024 Mar 8;15(1):2124. doi: 10.1038/s41467-024-46436-z.

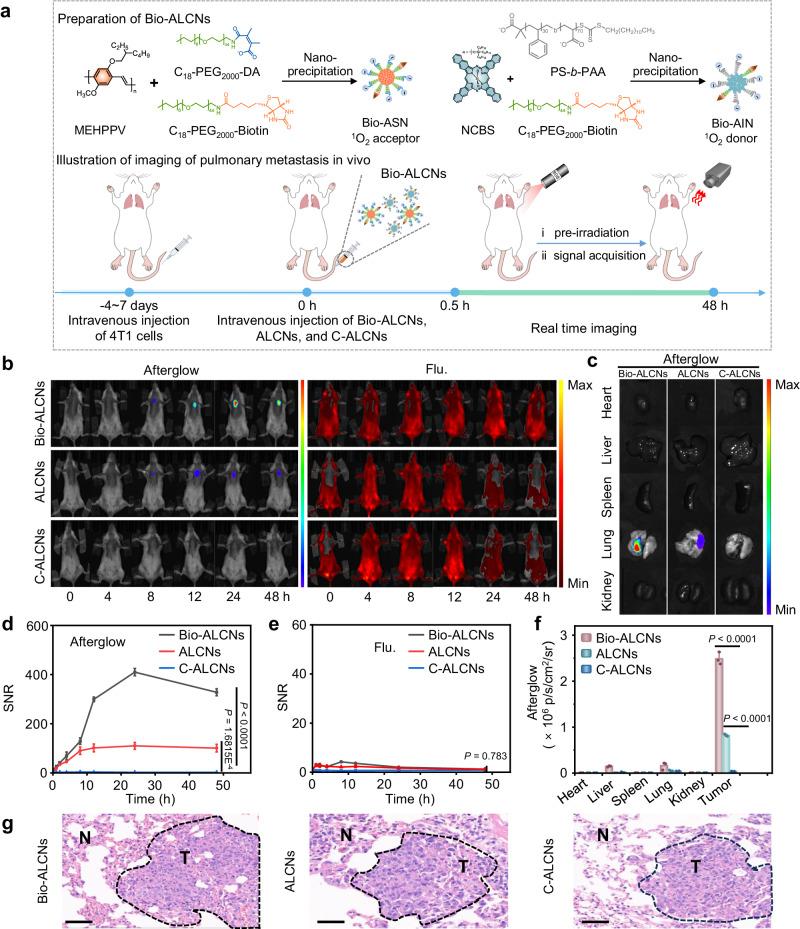

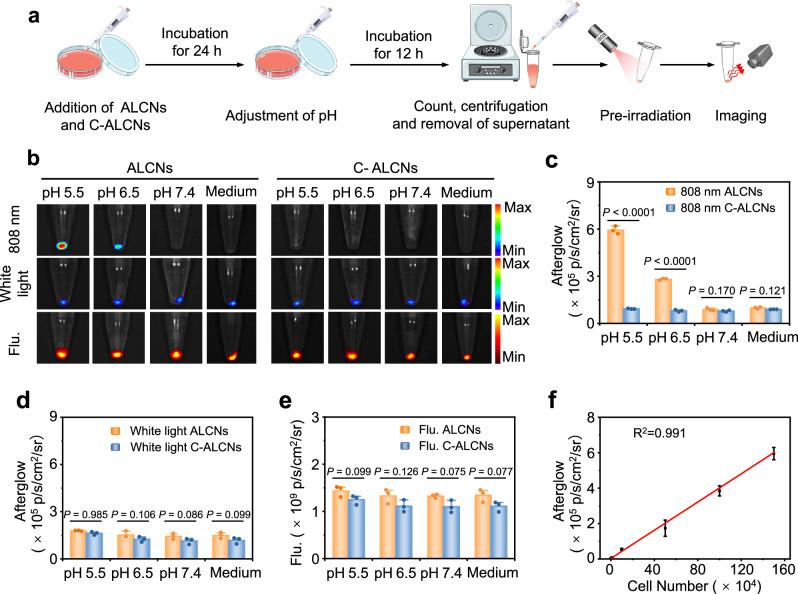

Activatable afterglow luminescence nanoprobes enabling switched "off-on" signals in response to biomarkers have recently emerged to achieve reduced unspecific signals and improved imaging fidelity. However, such nanoprobes always use a biomarker-interrupted energy transfer to obtain an activatable signal, which necessitates a strict distance requisition between a donor and an acceptor moiety (<10 nm) and hence induces low efficiency and non-feasibility. Herein, we report organic upconversion afterglow luminescence cocktail nanoparticles (ALCNs) that instead utilize acidity-manipulated singlet oxygen (O) transfer between a donor and an acceptor moiety with enlarged distance and thus possess more efficiency and flexibility to achieve an activatable afterglow signal. After in vitro validation of acidity-activated afterglow luminescence, ALCNs achieve in vivo imaging of 4T1-xenograft subcutaneous tumors in female mice and orthotopic liver tumors in male mice with a high signal-to-noise ratio (SNR). As a representative targeting trial, Bio-ALCNs with biotin modification prove the enhanced targeting ability, sensitivity, and specificity for pulmonary metastasis and subcutaneous tumor imaging via systemic administration of nanoparticles in female mice, which also implies the potential broad utility of ALCNs for tumor imaging with diverse design flexibility. Therefore, this study provides an innovative and general approach for activatable afterglow imaging with better imaging performance than fluorescence imaging.
近年来,出现了可对生物标志物产生响应的激活后发光纳米探针,以实现减少非特异性信号并提高成像保真度。然而,此类纳米探针总是利用生物标志物中断的能量转移来获得可激活的信号,这需要供体和受体部分之间严格的距离要求(<10nm),因此导致效率低下和不可行。在此,我们报告了有机上转换后发光鸡尾酒纳米颗粒(ALCNs),其利用酸度控制的供体和受体部分之间的单线态氧(O)转移,从而具有更大的距离,因此具有更高的效率和灵活性,以实现可激活的后发光信号。在体外验证了酸度激活的后发光之后,ALCNs 实现了雌性小鼠皮下 4T1 异种移植肿瘤和雄性小鼠原位肝肿瘤的体内成像,具有高信噪比(SNR)。作为代表性的靶向试验,带有生物素修饰的 Bio-ALCNs 证明了通过在雌性小鼠中全身给药的纳米颗粒,对肺转移和皮下肿瘤成像具有增强的靶向能力、灵敏度和特异性,这也意味着 ALCNs 在具有多种设计灵活性的肿瘤成像方面具有潜在的广泛应用。因此,本研究提供了一种创新的、通用的激活后发光成像方法,比荧光成像具有更好的成像性能。
