A new variant of the inherent strain method for the prediction of distortion in powder bed fusion additive manufacturing processes.

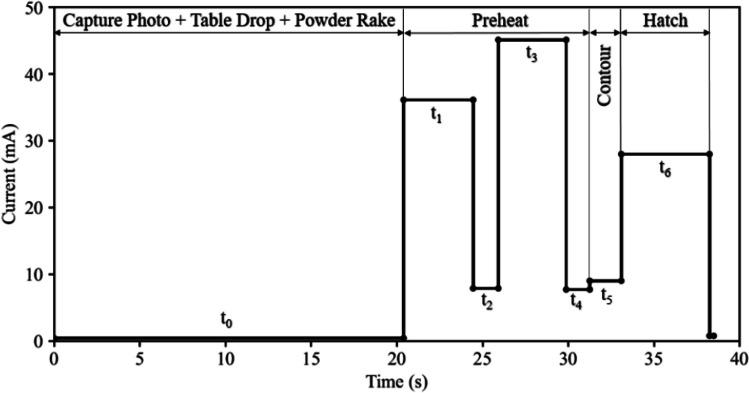

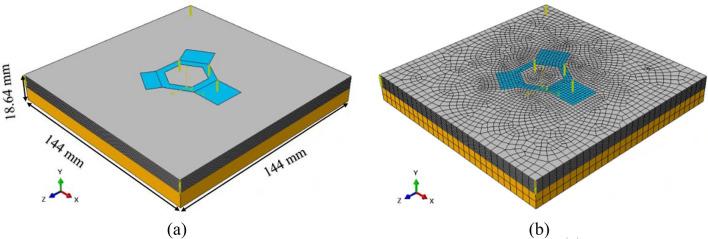

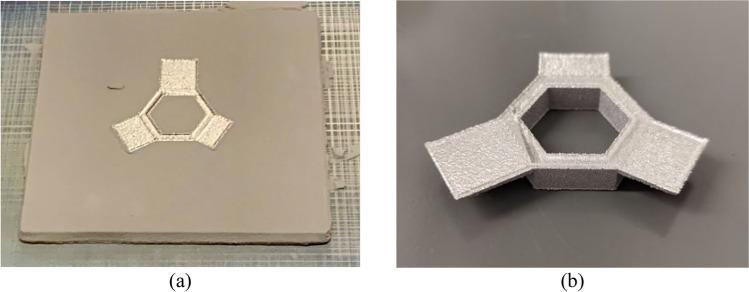

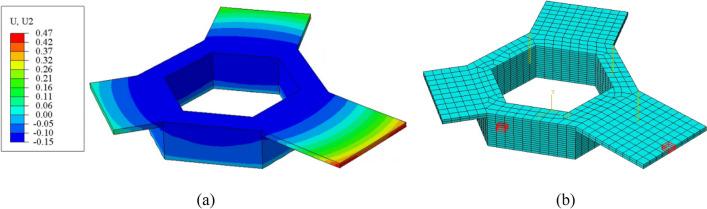

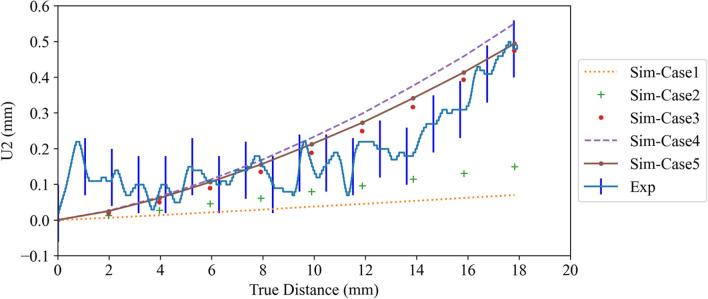

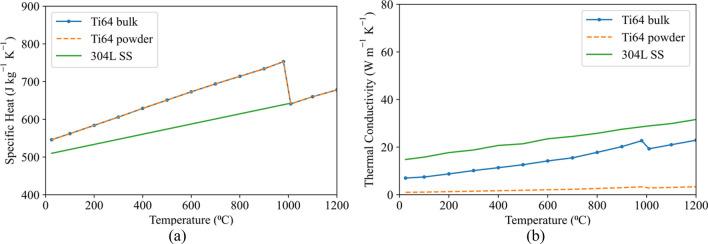

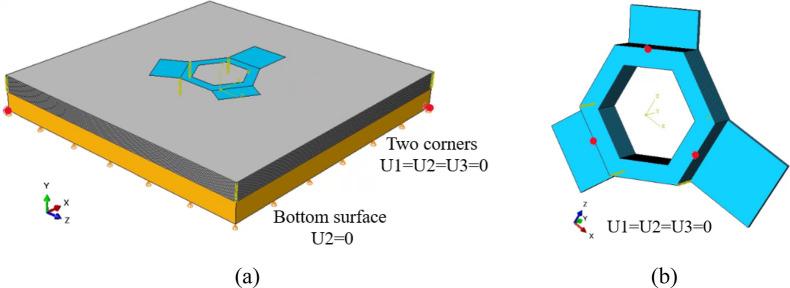

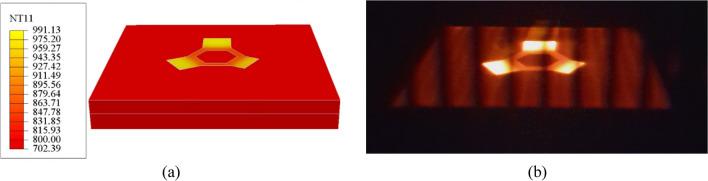

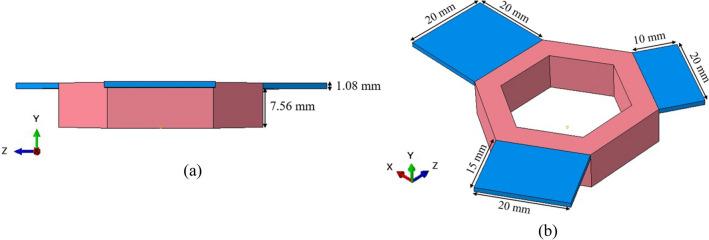

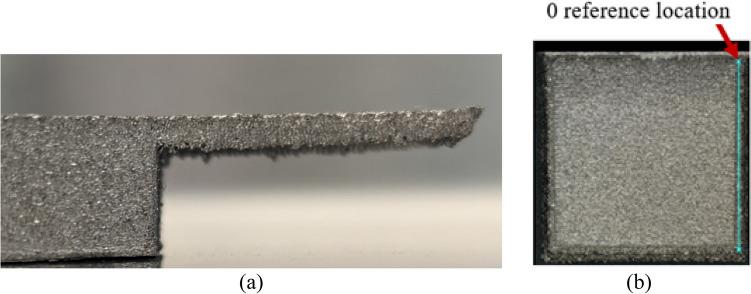

A new variant of the inherent strain (IS) method is proposed to predict component distortion in powder bed fusion additive manufacturing (AM) that addresses some of the shortcomings of the previous work by accounting for both the compressive plastic strain formed adjacent to the melt pool and the thermal strain associated with the changing macroscale thermal field in the component during fabrication. A 3D thermomechanical finite element (FE) model using the new approach is presented and applied to predict the distortion of a component fabricated in an electron beam powder bed fusion (EB-PBF) machine. To improve computational efficiency, each computational layer is comprised of six powder layers. A time-averaged volumetric heat input based on beam voltage and current data obtained from the EB-PBF system was calculated and applied to each computational layer, consistent with the process timing. The inherent strains were applied per computational layer as an initial anisotropic contribution to the thermal strain at the time of activation of each computational layer, resulting in the sequential establishment of static equilibrium during component fabrication, which accounts for the variation in the local macroscale thermal field. The thermal field and distortion predicted by the thermomechanical model were verified using experimentally derived data. The model predicts in-plane compressive strains in the order of 10. Differences in the inherent strain were found at different locations in the component, consistent with differences in the macroscale thermal field. The proposed method is general and may also be applied to the laser powder bed fusion (L-PBF) process.
