Department of Cardiology, Amsterdam UMC, Vrije Universiteit Amsterdam, Amsterdam Cardiovascular Sciences, De Boelelaan 1118, 1081 HV, Amsterdam, The Netherlands.
1st Department of Cardiology, Medical University of Warsaw, Banacha 1a Str., 02-097, Warsaw, Poland.
Sci Rep. 2024 Apr 26;14(1):9665. doi: 10.1038/s41598-024-60503-x.

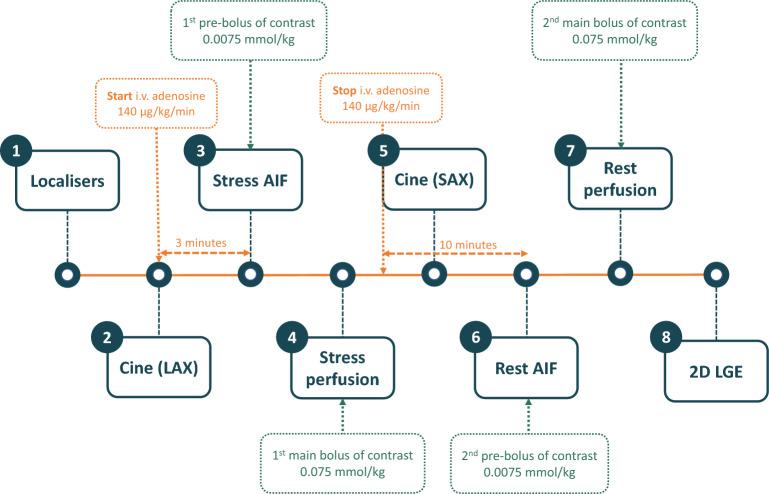

This study clinically implemented a ready-to-use quantitative perfusion (QP) cardiovascular magnetic resonance (QP CMR) workflow, encompassing a simplified dual-bolus gadolinium-based contrast agent (GBCA) administration scheme and fully automated QP image post-processing. Twenty-five patients with suspected obstructive coronary artery disease (CAD) underwent both adenosine stress perfusion CMR and an invasive coronary angiography or coronary computed tomography angiography. The dual-bolus protocol consisted of a pre-bolus (0.0075 mmol/kg GBCA at 0.5 mmol/ml concentration + 20 ml saline) and a main bolus (0.075 mmol/kg GBCA at 0.5 mmol/ml concentration + 20 ml saline) at an infusion rate of 3 ml/s. The arterial input function curves showed excellent quality. Stress MBF ≤ 1.84 ml/g/min accurately detected obstructive CAD (area under the curve 0.79; 95% Confidence Interval: 0.66 to 0.89). Combined visual assessment of color pixel QP maps and conventional perfusion images yielded a diagnostic accuracy of 84%, sensitivity of 70% and specificity of 93%. The proposed easy-to-use dual-bolus QP CMR workflow provides good image quality and holds promise for high accuracy in diagnosis of obstructive CAD. Implementation of this approach has the potential to serve as an alternative to current methods thus increasing the accessibility to offer high-quality QP CMR imaging by a wide range of CMR laboratories.
本研究临床实施了一种即用型定量灌注(QP)心血管磁共振(QP CMR)工作流程,包含简化的双脉冲钆基对比剂(GBCA)给药方案和全自动 QP 图像后处理。25 名疑似阻塞性冠状动脉疾病(CAD)患者接受腺苷负荷灌注 CMR 检查和有创冠状动脉造影或冠状动脉计算机断层血管造影。双脉冲方案包括预脉冲(0.0075mmol/kg GBCA,浓度为 0.5mmol/ml+20ml 生理盐水)和主脉冲(0.075mmol/kg GBCA,浓度为 0.5mmol/ml+20ml 生理盐水),以 3ml/s 的速度输注。动脉输入函数曲线质量良好。应激 MBF≤1.84ml/g/min 准确检测出阻塞性 CAD(曲线下面积 0.79;95%置信区间:0.66 至 0.89)。彩色像素 QP 图和常规灌注图像的联合视觉评估得出的诊断准确性为 84%,灵敏度为 70%,特异性为 93%。所提出的易于使用的双脉冲 QP CMR 工作流程提供了良好的图像质量,并有望在诊断阻塞性 CAD 方面具有高准确性。该方法的实施有可能替代当前方法,从而提高广泛的 CMR 实验室提供高质量 QP CMR 成像的可及性。
