Oliveira Matilde, Neves Vitor, Banea Mariana D
DEMaC-Department of Materials and Ceramic Engineering, University of Aveiro, 3810-193 Aveiro, Portugal.
NewStamp-Estampagem de Componentes Metalicos, Lda., Rua da Paz, nº 113-115, Cacia, 3800-587 Aveiro, Portugal.
Materials (Basel). 2024 Apr 12;17(8):1777. doi: 10.3390/ma17081777.

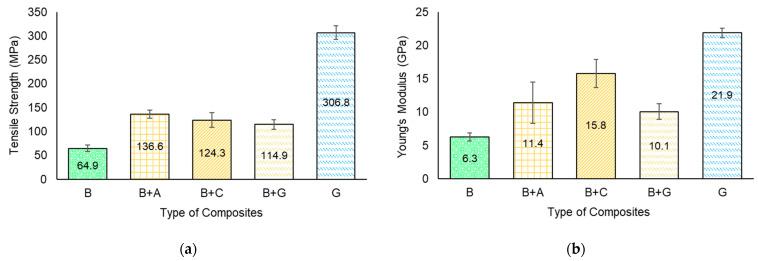

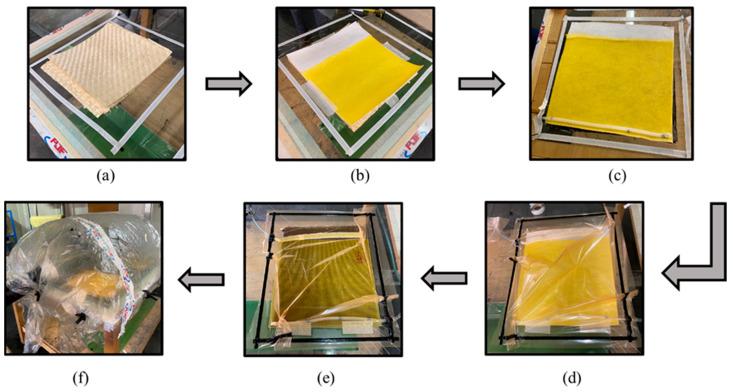

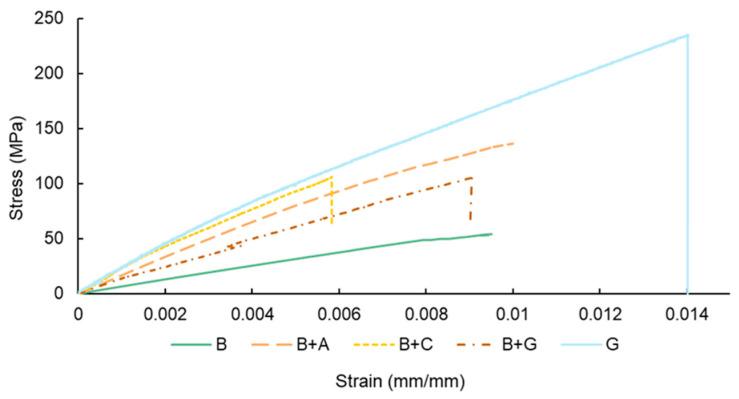

The main objective of this study was to investigate the mechanical and thermal properties of bamboo, as well as interlaminar hybrid composites reinforced with both bamboo and synthetic fibres in an epoxy matrix. Bamboo and glass, aramid, and carbon bidirectional fabrics were used with a bi-component epoxy matrix to fabricate the composite materials using the vacuum bagging process. The synthetic fabrics were placed on the outer layers, while the bamboo fabrics were used as the core of the hybrid composites. The developed composites were characterized and compared in terms of morphological, physical, and mechanical properties. Further, thermogravimetric (TGA) analysis was used to measure and compare the degradation temperature of the composites studied. Finally, a Scanning Electron Microscopy (SEM) analysis was performed in order to examine the fracture surfaces of the specimens tested. It was found that the fibre hybridization technique significantly improved the general mechanical properties. TGA analysis showed an increase in the thermal stability of the composites obtained by incorporating the synthetic fibres, confirming the effect of hybridization and efficient fibre matrix interfacial adhesion. The results from this work showed that the use of synthetic fibre reinforcements can help to significantly improve the mechanical and thermal properties of bamboo fibre-reinforced composites.
本研究的主要目的是研究竹子的力学和热性能,以及在环氧基质中用竹子和合成纤维增强的层间混杂复合材料。竹子与玻璃、芳纶和碳双向织物与双组分环氧基质一起使用,通过真空袋压工艺制造复合材料。合成织物置于外层,而竹织物用作混杂复合材料的芯层。对所开发的复合材料进行了形态、物理和力学性能方面的表征和比较。此外,采用热重分析(TGA)来测量和比较所研究复合材料的降解温度。最后,进行扫描电子显微镜(SEM)分析,以检查测试样品的断裂表面。结果发现,纤维混杂技术显著改善了总体力学性能。TGA分析表明,通过加入合成纤维获得的复合材料的热稳定性有所提高,证实了混杂效应和有效的纤维-基质界面粘结。这项工作的结果表明,使用合成纤维增强材料有助于显著改善竹纤维增强复合材料的力学和热性能。
