Aguilar-de-Leyva Ángela, Casas Marta, Ferrero Carmen, Linares Vicente, Caraballo Isidoro
Department of Pharmacy and Pharmaceutical Technology, Faculty of Pharmacy, Universidad de Sevilla, 41012 Sevilla, Spain.
Pharmaceutics. 2024 Mar 22;16(4):437. doi: 10.3390/pharmaceutics16040437.

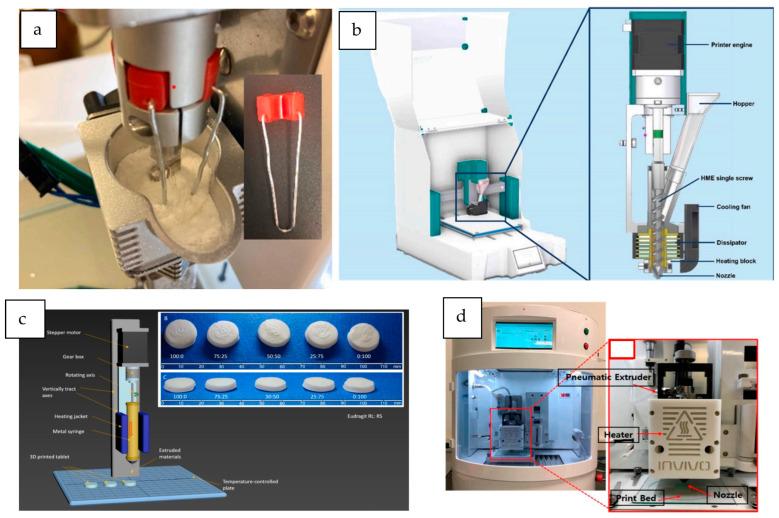

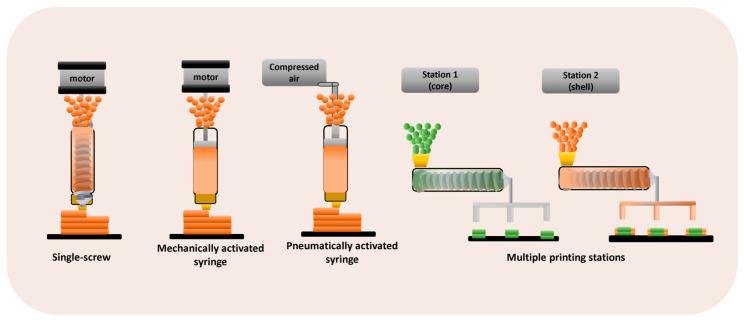

The production of tailored, on-demand drug delivery systems has gained attention in pharmaceutical development over the last few years, thanks to the application of 3D printing technology in the pharmaceutical field. Recently, direct powder extrusion (DPE) has emerged among the extrusion-based additive manufacturing techniques. It is a one-step procedure that allows the direct processing of powdered formulations. The aim of this systematic literature review is to analyze the production of drug delivery systems using DPE. A total of 27 articles have been identified through scientific databases (Scopus, PubMed, and ScienceDirect). The main characteristics of the three types of 3D printers based on DPE have been discussed. The selection of polymers and auxiliary excipients, as well as the flowability of the powder mixture, the rheological properties of the molten material, and the printing temperatures have been identified as the main critical parameters for successful printing. A wide range of drug delivery systems with varied geometries and different drug release profiles intended for oral, buccal, parenteral, and transdermal routes have been produced. The ability of this technique to manufacture personalized, on-demand drug delivery systems has been proven. For all these reasons, its implementation in hospital settings in the near future seems promising.
在过去几年中,由于3D打印技术在制药领域的应用,定制化、按需给药系统的生产在药物研发中受到了关注。最近,直接粉末挤出(DPE)在基于挤出的增材制造技术中崭露头角。它是一种一步法工艺,可直接对粉末制剂进行加工。本系统文献综述的目的是分析使用DPE生产给药系统的情况。通过科学数据库(Scopus、PubMed和ScienceDirect)共检索到27篇文章。讨论了基于DPE的三种3D打印机的主要特点。聚合物和辅助赋形剂的选择、粉末混合物的流动性、熔融材料的流变学性质以及打印温度已被确定为成功打印的主要关键参数。已经生产出了各种具有不同几何形状和不同药物释放曲线的给药系统,用于口服、口腔、肠胃外和透皮给药途径。该技术制造个性化、按需给药系统的能力已得到证实。基于所有这些原因,在不久的将来将其应用于医院环境似乎很有前景。
