胫骨后倾角度影响全膝关节置换术后的关节力学及软组织负荷。

Posterior tibial slope influences joint mechanics and soft tissue loading after total knee arthroplasty.

作者信息

Guo Ning, Smith Colin R, Schütz Pascal, Trepczynski Adam, Moewis Philippe, Damm Philipp, Maas Allan, Grupp Thomas M, Taylor William R, Hosseini Nasab Seyyed Hamed

机构信息

Institute for Biomechanics, Department of Health Sciences and Technology, ETH Zürich, Zürich, Switzerland.

Department of Biomedical Engineering, Steadman Philippon Research Institute, Vail, CO, United States.

出版信息

Front Bioeng Biotechnol. 2024 Apr 15;12:1352794. doi: 10.3389/fbioe.2024.1352794. eCollection 2024.

Abstract

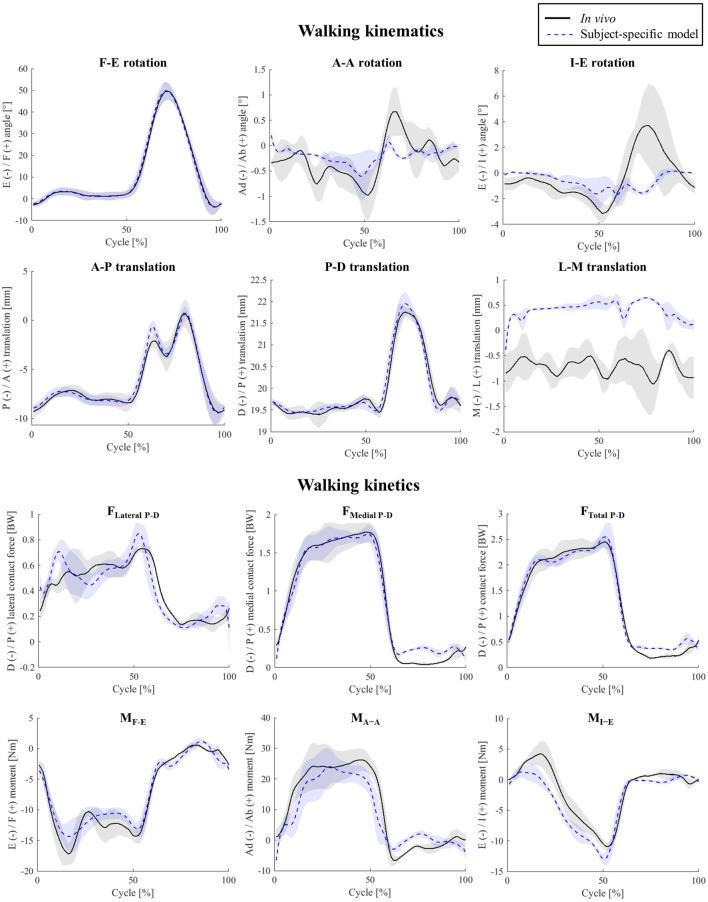

As a solution to restore knee function and reduce pain, the demand for Total Knee Arthroplasty (TKA) has dramatically increased in recent decades. The high rates of dissatisfaction and revision makes it crucially important to understand the relationships between surgical factors and post-surgery knee performance. Tibial implant alignment in the sagittal plane (i.e., posterior tibia slope, PTS) is thought to play a key role in quadriceps muscle forces and contact conditions of the joint, but the underlying mechanisms and potential consequences are poorly understood. To address this biomechanical challenge, we developed a subject-specific musculoskeletal model based on the bone anatomy and precise implantation data provided within the CAMS-Knee datasets. Using the novel COMAK algorithm that concurrently optimizes joint kinematics, together with contact mechanics, and muscle and ligament forces, enabled highly accurate estimations of the knee joint biomechanics (RMSE <0.16 BW of joint contact force) throughout level walking and squatting. Once confirmed for accuracy, this baseline modelling framework was then used to systematically explore the influence of PTS on knee joint biomechanics. Our results indicate that PTS can greatly influence tibio-femoral translations (mainly in the anterior-posterior direction), while also suggesting an elevated risk of patellar mal-tracking and instability. Importantly, however, an increased PTS was found to reduce the maximum tibio-femoral contact force and improve efficiency of the quadriceps muscles, while also reducing the patellofemoral contact force (by approximately 1.5% for each additional degree of PTS during walking). This study presents valuable findings regarding the impact of PTS variations on the biomechanics of the TKA joint and thereby provides potential guidance for surgically optimizing implant alignment in the sagittal plane, tailored to the implant design and the individual deficits of each patient.

摘要

作为恢复膝关节功能和减轻疼痛的一种解决方案,近几十年来,全膝关节置换术(TKA)的需求急剧增加。高比例的患者不满和翻修情况使得了解手术因素与术后膝关节性能之间的关系至关重要。胫骨假体在矢状面的对线(即胫骨后倾坡度,PTS)被认为在股四头肌力量和关节接触条件中起关键作用,但其潜在机制和潜在后果却知之甚少。为应对这一生物力学挑战,我们基于CAMS - Knee数据集中提供的骨骼解剖结构和精确植入数据,开发了一个针对个体的肌肉骨骼模型。使用同时优化关节运动学、接触力学以及肌肉和韧带力量的新型COMAK算法,能够在整个平地行走和下蹲过程中对膝关节生物力学进行高度准确的估计(关节接触力的均方根误差<0.16体重)。一旦确认了准确性,这个基线建模框架随后被用于系统地探究PTS对膝关节生物力学的影响。我们的结果表明,PTS可极大地影响胫股关节的平移(主要是前后方向),同时也提示髌股关节轨迹不良和不稳定的风险增加。然而,重要的是,发现增加PTS可降低最大胫股关节接触力,提高股四头肌的效率,同时也降低髌股关节接触力(行走过程中PTS每增加一度,髌股关节接触力降低约1.5%)。本研究提供了关于PTS变化对TKA关节生物力学影响的有价值的发现,从而为根据植入物设计和每个患者的个体缺陷在矢状面手术优化植入物对线提供了潜在指导。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/cd86/11056792/3a6302dfa0c8/fbioe-12-1352794-g001.jpg
