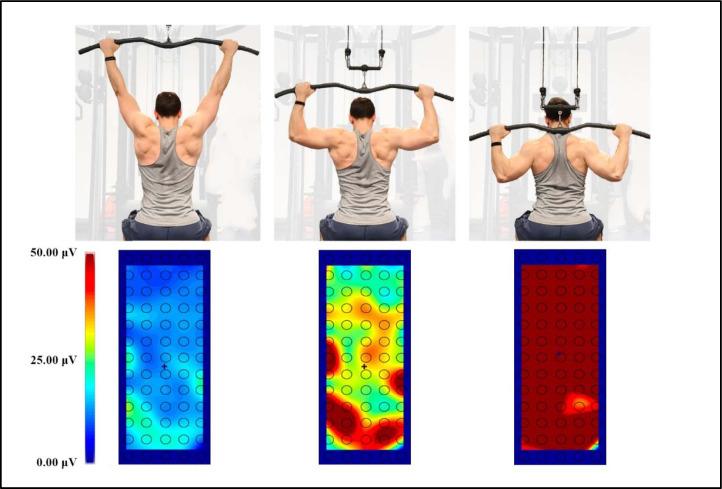

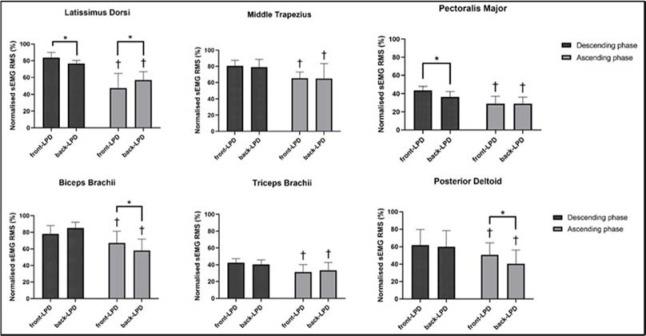

The current study compared the spatial excitation of the primary muscles during the lat pull-down exercise with the bar passing in front (front-LPD) or behind the neck (back-LPD) using high-density electromyography. Fourteen resistance trained men performed a front-LPD or a back-LPD within a non-fatiguing set with 8-RM as the external load. The muscle excitation centroid of latissimus dorsi, middle trapezius, pectoralis major, biceps brachii, triceps brachii and posterior deltoid muscles were recorded during the ascending and the descending phase. During the descending phase, the front-LPD showed superior excitation of the latissimus dorsi (ES = 0.97) and the pectoralis major (ES = 1.17), while in the ascending phase, the back-LPD exhibited superior excitation of the latissimus dorsi (ES = 0.63), and the front-LPD showed superior excitation of the biceps brachii (ES = 0.41) and the posterior deltoid (ES = 1.77). During the descending phase, the front-LPD showed a more lateral centroid of the latissimus dorsi (ES = 0.60), the biceps brachii (ES = 0.63) and the triceps brachii (ES = 0.98), while the centroid was more medial for the middle trapezius (ES = 0.58). The centroid of the middle trapezius was also more medial in the front-LPD during the ascending phase (ES = 0.85). The pectoralis major centroid was more cranial in the front-LPD for both the descending (ES = 1.58) and the ascending phase (ES = 0.88). The front-LPD appears to provide overall greater excitation in the prime movers. However, distinct spatial excitation patterns were observed, making exercise suitable for the training routine.
