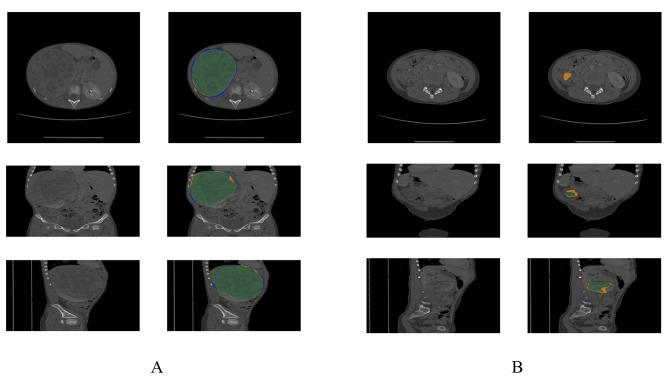

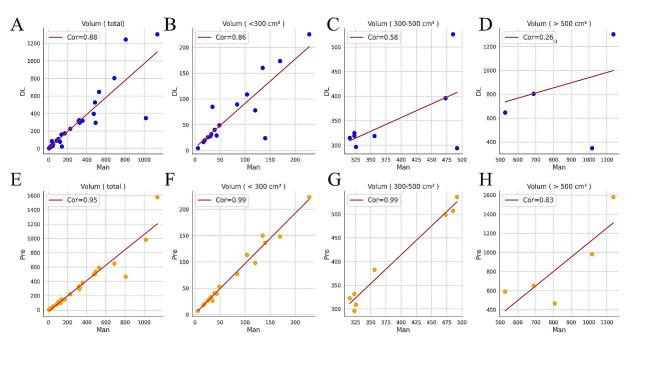

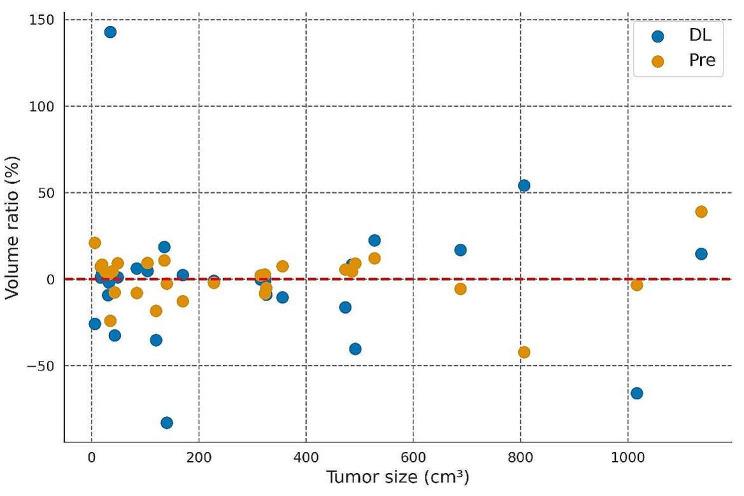

BACKGROUND: Radiologic volumetric evaluation of Wilms' tumor (WT) is an important indicator to guide treatment decisions. However, due to the heterogeneity of the tumors, radiologists have main-guard differences in diagnosis that can lead to misdiagnosis and poor treatment. The aim of this study was to explore whether CT-based outlining of WT foci can be automated using deep learning. METHODS: We included CT intravenous phase images of 105 patients with WT and double-blind outlining of lesions by two radiologists. Then, we trained an automatic segmentation model using nnUnet. The Dice similarity coefficient (DSC) and 95th percentile Hausdorff distance (HD) were used to assess the performance. Next, we optimized the automatic segmentation results based on the ratio of the three-dimensional diameter of the lesion to improve the performance of volumetric assessment. RESULTS: The DSC and HD was 0.83 ± 0.22 and 10.50 ± 8.98 mm. The absolute difference and percentage difference in tumor size was 72.27 ± 134.84 cm and 21.08% ± 30.46%. After optimization according to our method, it decreased to 40.22 ± 96.06 cm and 10.16% ± 9.70%. CONCLUSION: We introduce a novel method that enhances the accuracy of predicting WT volume by integrating AI automated outlining and 3D tumor diameters. This approach surpasses the accuracy of using AI outcomes alone and has the potential to enhance the clinical evaluation of pediatric patients with WT. By intertwining AI outcomes with clinical data, this method becomes more interpretive and offers promising applications beyond Wilms tumor, extending to other pediatric diseases.
