基于电容器技术的红细胞膜力学特性研究

Mechanical Characterization of the Erythrocyte Membrane Using a Capacitor-Based Technique.

作者信息

Dorta Doriana, Plazaola Carlos, Carrasco Jafeth, Alves-Rosa Maria F, Coronado Lorena M, Correa Ricardo, Zambrano Maytee, Gutiérrez-Medina Braulio, Sarmiento-Gómez Erick, Spadafora Carmenza, Gonzalez Guadalupe

机构信息

Facultad de Ciencias Naturales, Exactas y Tecnología, Universidad de Panamá, Panama City 06001-01103, Panama.

Centro de Biología Celular y Molecular de Enfermedades, Instituto de Investigaciones Científicas y Servicios de Alta Tecnología (INDICASAT AIP), Ciudad del Saber, Panama City 1843-01103, Panama.

出版信息

Micromachines (Basel). 2024 Apr 28;15(5):590. doi: 10.3390/mi15050590.


DOI:10.3390/mi15050590
PMID:38793163
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC11122917/
Abstract

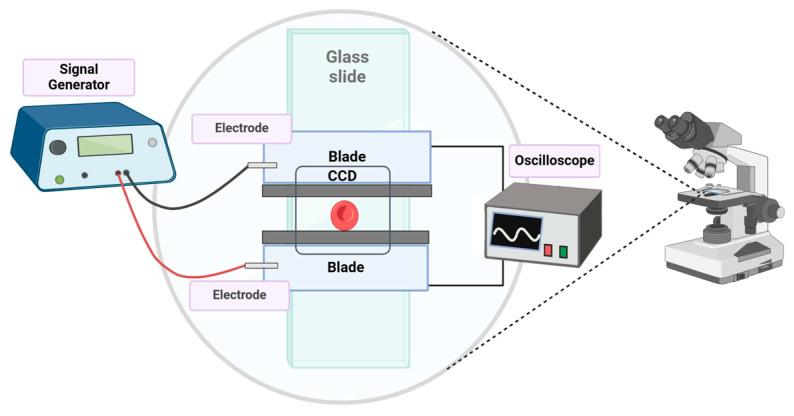

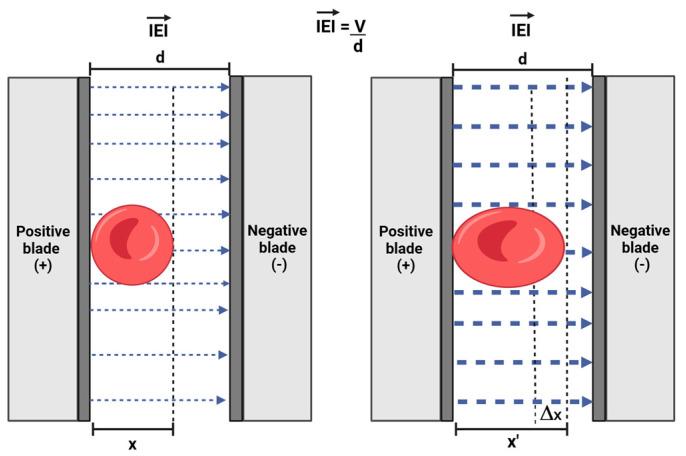

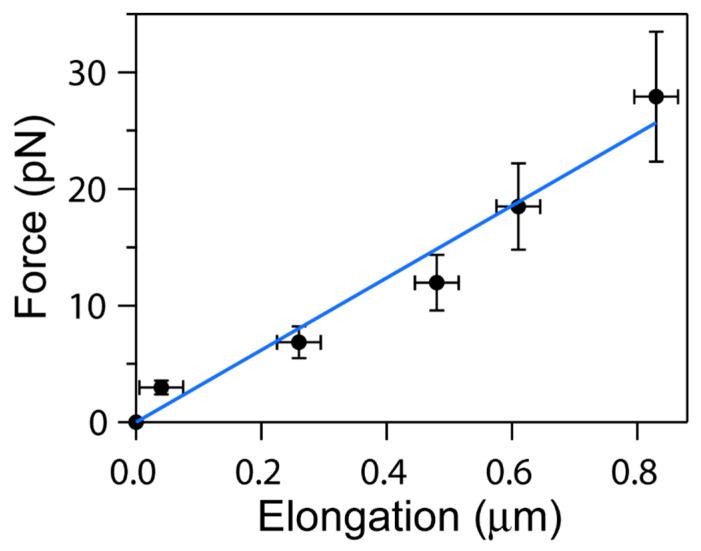

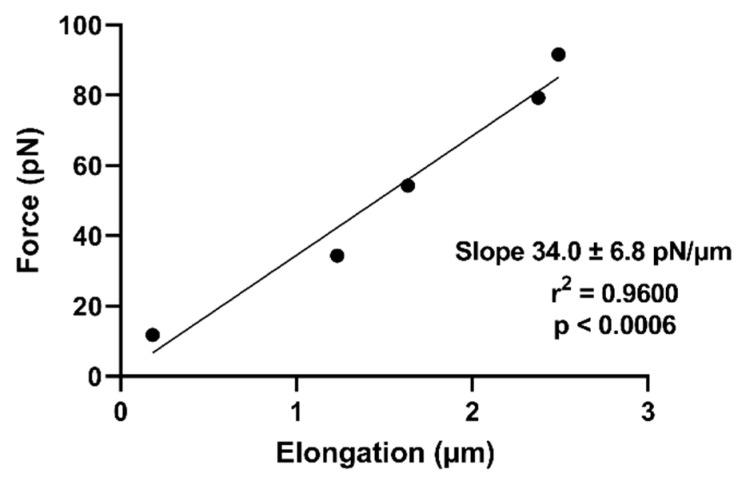

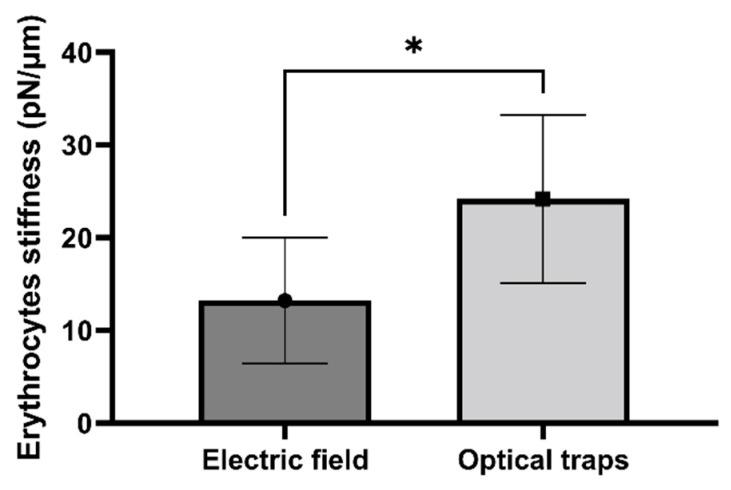

Pathological processes often change the mechanical properties of cells. Increased rigidity could be a marker of cellular malfunction. Erythrocytes are a type of cell that deforms to squeeze through tiny capillaries; changes in their rigidity can dramatically affect their functionality. Furthermore, differences in the homeostatic elasticity of the cell can be used as a tool for diagnosis and even for choosing the adequate treatment for some illnesses. More accurate types of equipment needed to study biomechanical phenomena at the single-cell level are very costly and thus out of reach for many laboratories around the world. This study presents a simple and low-cost technique to study the rigidity of red blood cells (RBCs) through the application of electric fields in a hand-made microfluidic chamber that uses a capacitor principle. As RBCs are deformed with the application of voltage, cells are observed under a light microscope. From mechanical force vs. deformation data, the elastic constant of the cells is determined. The results obtained with the capacitor-based method were compared with those obtained using optical tweezers, finding good agreement. In addition, -infected erythrocytes were tested with the electric field applicator. Our technique provides a simple means of testing the mechanical properties of individual cells.

摘要

病理过程常常会改变细胞的力学特性。硬度增加可能是细胞功能异常的一个标志。红细胞是一种会发生变形以挤过微小毛细血管的细胞类型;其硬度的变化会极大地影响其功能。此外,细胞稳态弹性的差异可作为一种诊断工具,甚至可用于为某些疾病选择合适的治疗方法。在单细胞水平研究生物力学现象所需的更精确类型的设备非常昂贵,因此世界上许多实验室都无法获得。本研究提出了一种简单且低成本的技术,通过在基于电容器原理的手工制作的微流控腔室中施加电场来研究红细胞(RBC)的硬度。随着电压的施加红细胞发生变形,在光学显微镜下观察细胞。根据机械力与变形数据,确定细胞的弹性常数。将基于电容器的方法所获得的结果与使用光镊获得的结果进行比较,发现二者吻合度良好。此外,用该电场施加器对受感染的红细胞进行了测试。我们的技术提供了一种测试单个细胞力学特性的简单方法。
