Light-Mediated Contact Printing of Phosphorus Species onto Silicon Using Carbene-Based Molecular Layers.

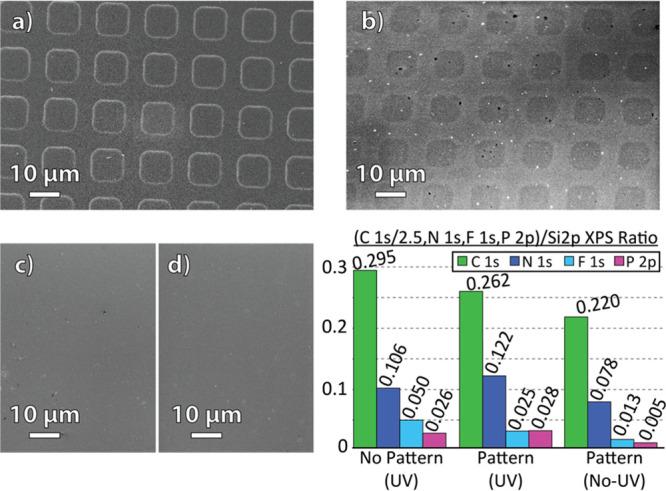

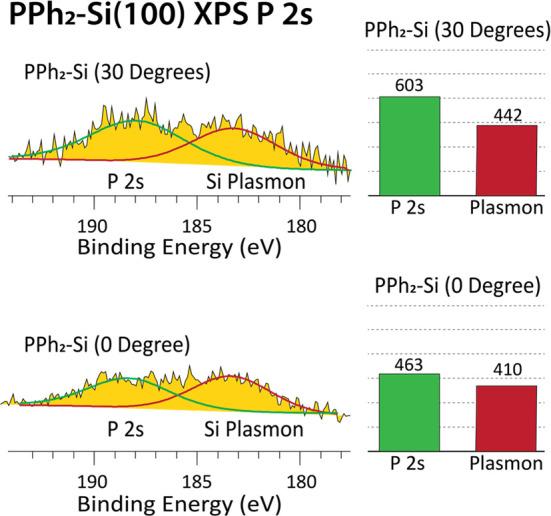

The ability to deposit pattern-specific molecular layers onto silicon with either regional p-/n-doping properties or that act as chemoselective resists for area-selective deposition is highly sought after in the bottom-up manufacturing of microelectronics. In this study, we demonstrate a simple protocol for the covalent attachment and patterning of a phosphorus-based dopant precursor onto silicon(100) functionalized with reactive carbene species. This method relies on selective surface reactions, which provide terminal functionalities that can be photochemically modified via ultraviolet-assisted contact printing between the carbene-functionalized substrate and an elastomeric stamp inked with the inorganic dopant precursor. X-ray photoelectron spectroscopy (XPS) analysis combined with scanning electron microscopy (SEM) imaging was used to characterize the molecule attachment and patterning ability of this technique. XPS spectra are indicative of the covalent bonding between phosphorus-containing molecules and the functionalized surface after both bulk solution-phase reaction and photochemical printing. SEM analysis of the corresponding printed features demonstrates the effective transfer of the phosphorus species in a patterned orientation matching that of the stamp pattern. This simple approach to patterning dopant precursors has the potential to inform the continued refinement of thin-film electronic, photonic, and quantum device manufacturing.
