Multimodal PA/US imaging in Rheumatoid Arthritis: Enhanced correlation with clinical scores.

BACKGROUND

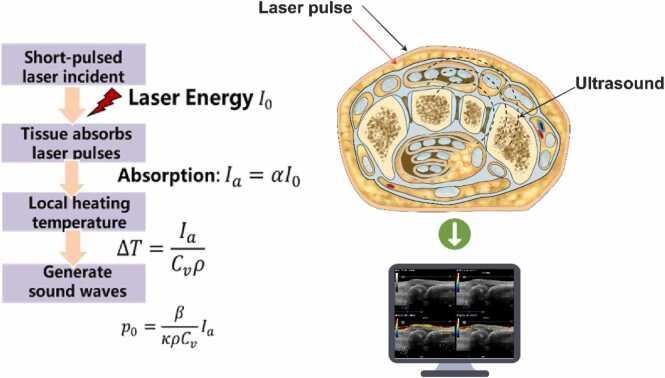

Accurate assessment of Rheumatoid Arthritis (RA) activity remains a challenge. Multimodal photoacoustic/ultrasound (PA/US) joint imaging emerges as a novel imaging modality capable of depicting microvascularization and oxygenation levels in inflamed joints associated with RA. However, the scarcity of large-scale studies limits the exploration of correlating joint oxygenation status with disease activity.

OBJECTIVE

This study aimed to explore the correlation between multimodal PA/US imaging scores and RA disease activity, assessing its clinical applicability in managing RA.

METHODS

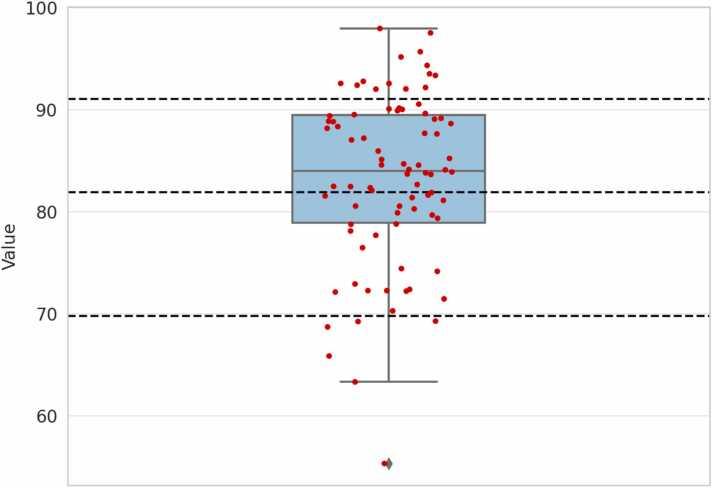

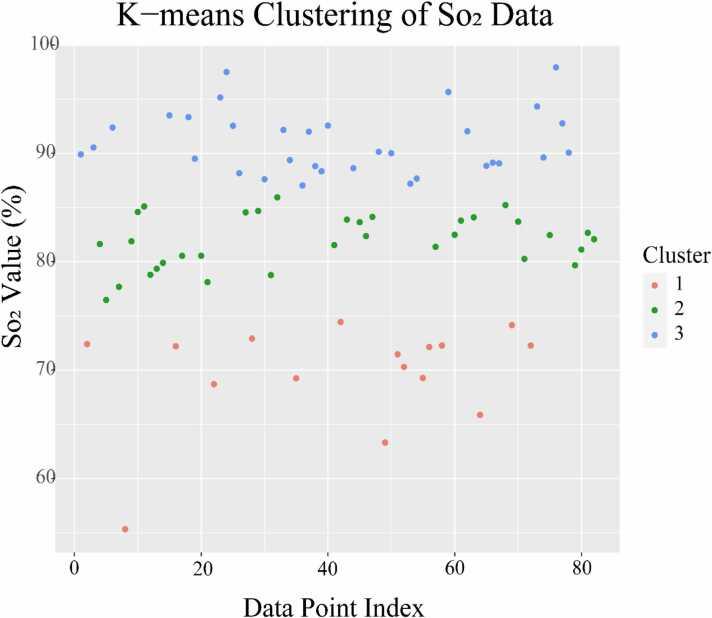

In this study, we recruited 111 patients diagnosed with RA and conducted examinations of seven small joints on their clinically dominant side using a PA/US imaging system. The PA and power Doppler ultrasound (PDUS) signals were semi-quantitatively assessed using a 0-3 grading system. The cumulative scores for PA and PDUS across these seven joints (PA-sum and PDUS-sum) were calculated. Relative oxygen saturation (So) values of inflamed joints on the clinically dominant side were measured, and categorized into four distinct PA+So patterns. The correlation between PA/US imaging scores and disease activity indices was systematically evaluated.

RESULTS

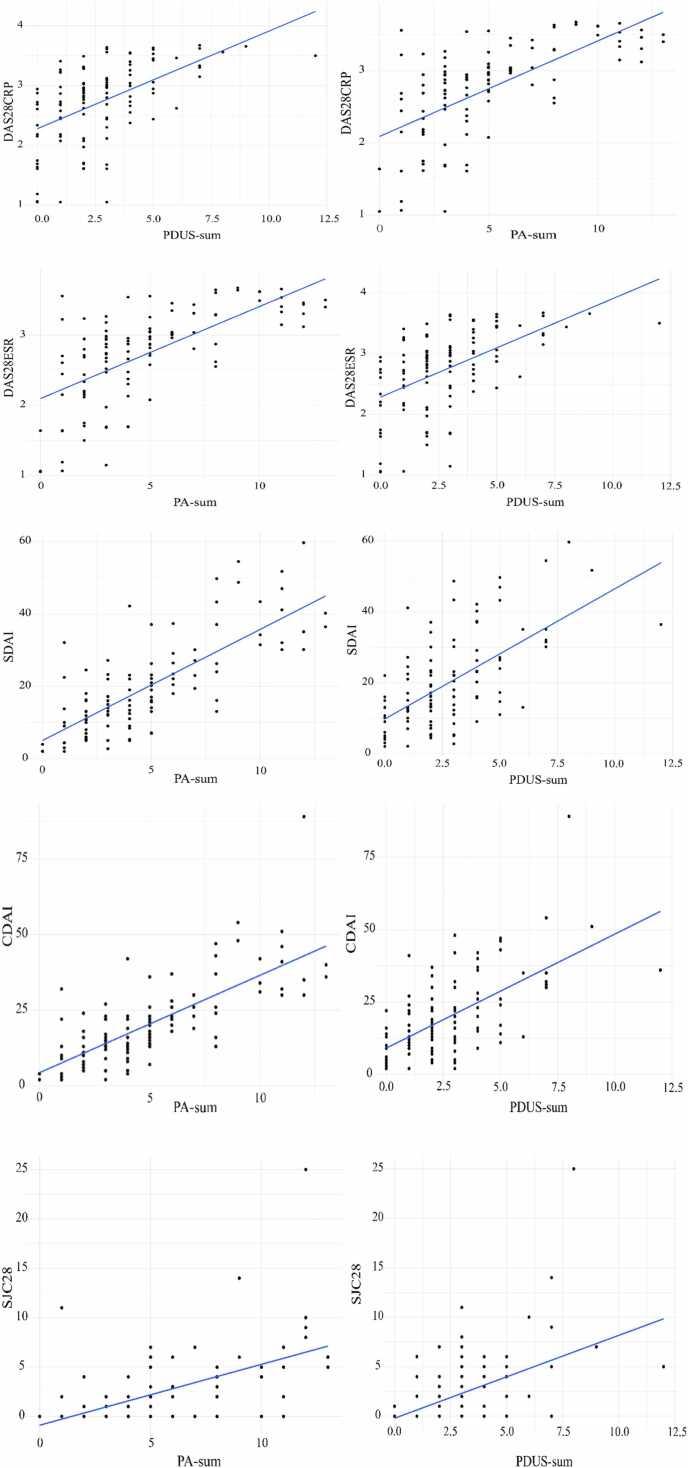

Analysis of 777 small joints in 111 patients revealed that the PA-sum scores exhibited a strong positive correlation with standard clinical scores for RA, including DAS28 [ESR] (ρ = 0.682), DAS28 [CRP] (ρ = 0.683), CDAI (ρ = 0.738), and SDAI (ρ = 0.739), all with p < 0.001. These correlations were superior to those of the PDUS-sum scores (DAS28 [ESR] ρ = 0.559, DAS28 [CRP] ρ = 0.555, CDAI ρ = 0.575, SDAI ρ = 0.581, p < 0.001). Significantly, in patients with higher PA-sum scores, notable differences were observed in the erythrocyte sedimentation rate (ESR) (p < 0.01) and swollen joint count 28 (SJC28) (p < 0.01) between hypoxia and intermediate groups. Notably, RA patients in the hypoxia group exhibited higher clinical scores in certain clinical indices.

CONCLUSION

Multi-modal PA/US imaging introduces potential advancements in RA assessment, especially regarding So evaluations in synovial tissues and associated PA scores. However, further studies are warranted, particularly with more substantial sample sizes and in multi-center settings.

SUMMARY

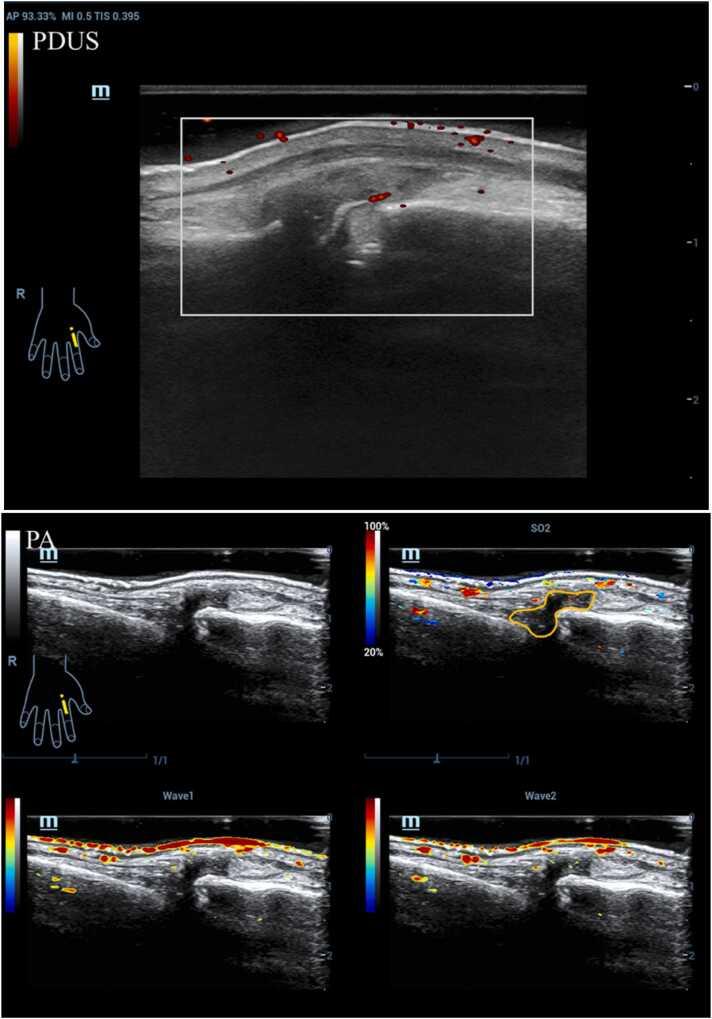

This study utilized multi-modal PA/US imaging to analyze Rheumatoid Arthritis (RA) patients' synovial tissues and affected joints. When juxtaposed with traditional PDUS imaging, the PA approach demonstrated enhanced sensitivity, especially concerning detecting small vessels in thickened synovium and inflamed tendon sheaths. Furthermore, correlations between the derived PA scores, PA+So patterns, and standard clinical RA scores were observed. These findings suggest that multi-modal PA/US imaging could be a valuable tool in the comprehensive assessment of RA, offering insights not only into disease activity but also into the oxygenation status of synovial tissues. However, as promising as these results are, further investigations, especially in larger and diverse patient populations, are imperative.

KEY POINTS

⸸ Multi-modal PA/US Imaging in RA: This novel technique was used to assess the So values in synovial tissues and determine PA scores of affected RA joints.⸸ Correlation significantly with Clinical RA Scores: Correlations significantly were noted between PA scores, PA+So patterns, and standard clinical RA metrics, hinting at the potential clinical applicability of the technique.
