Sensorless Based Haptic Feedback Integration In Robot-assisted Pedicle Screw Insertion For Lumbar Spine Surgery: A preliminary cadaveric study.

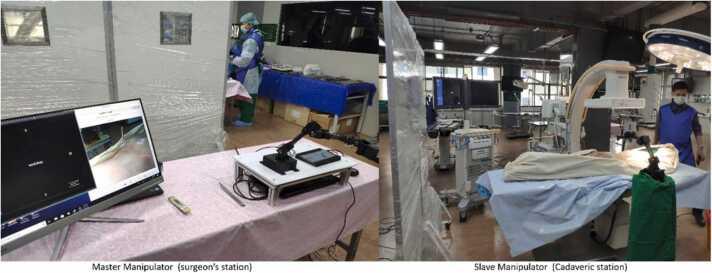

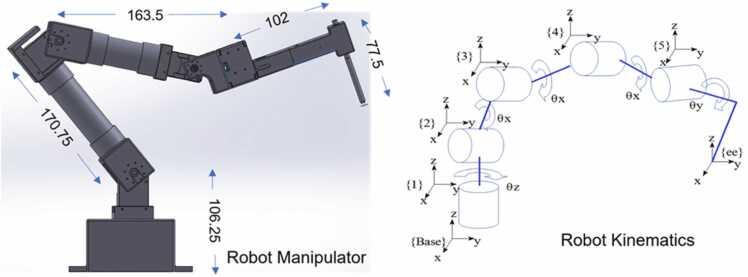

Pedicle screw fixation is an essential surgical technique for addressing various spinal pathologies, including degenerative diseases, trauma, tumors, neoplasms, and infections. Despite its efficacy, the procedure poses significant challenges, notably the limited visibility of spinal anatomical landmarks and the consequent reliance on surgeon's hand-eye coordination. These challenges often result in inaccuracies and high radiation exposure due to the frequent use of fluoroscopy X-ray guidance. Addressing these concerns, this study introduces a novel approach to pedicle screw insertion by utilizing a robot-assisted system that incorporates sensorless based haptics incorporated 5-DOF surgical manipulation. This innovative system aims to minimize radiation exposure and reduce operating time while improving the surgeon's hand posture capabilities. The developed prototype, expected to be implemented using bilateral control, was tested through preliminary cadaveric experiments focused on the insertion of both percutaneous and open pedicle screws at the L4-L5 level of the lumbar spine. Validation of the Sensorless Haptic Feedback feature was an integral part of this study, aiming to enhance precision and safety. The results, confirmed by fluoroscopic x-ray images, demonstrated the successful placement of two percutaneous and two open pedicle screws, with average position and torque errors of 0.011 radians and 0.054 Nm for percutaneous screws, and 0.0116 radians and 0.0057 Nm for open screws, respectively. These findings underscore the potential of the sensorless haptic feedback in a robot-assisted pedicle screw insertion system to significantly reduce radiation exposure and improve surgical outcomes, marking a significant advancement in spinal surgery technology.
