Xiang Yuanhang, Han Fengxia, Liu Qing
School of Architectural Engineering, Xinjiang University, Urumqi 830046, China.
Key Laboratory of Building Structure and Seismic Resistance of Xinjiang, Urumqi 830017, China.
Materials (Basel). 2024 May 22;17(11):2498. doi: 10.3390/ma17112498.

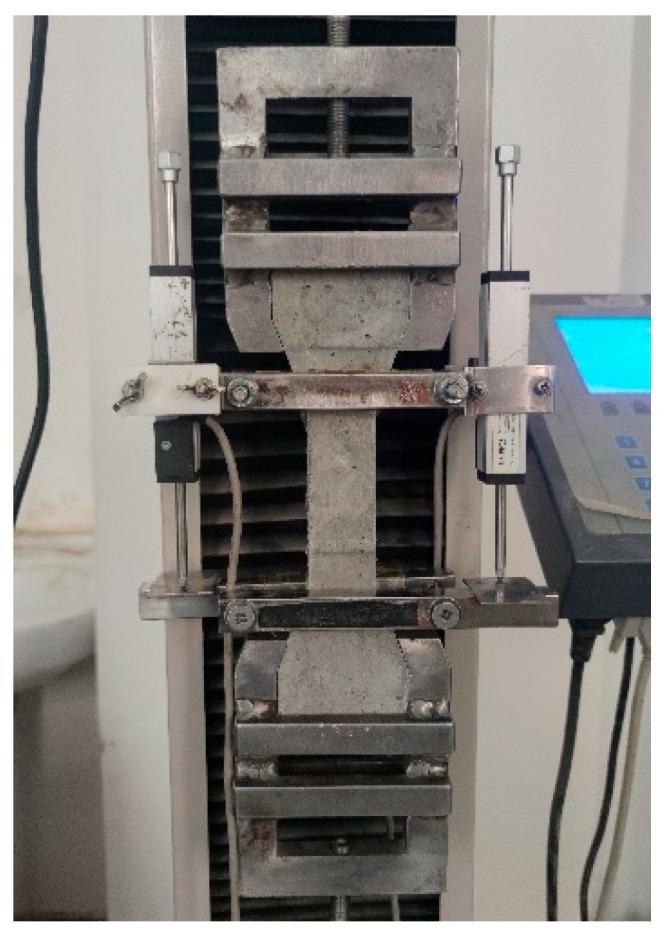

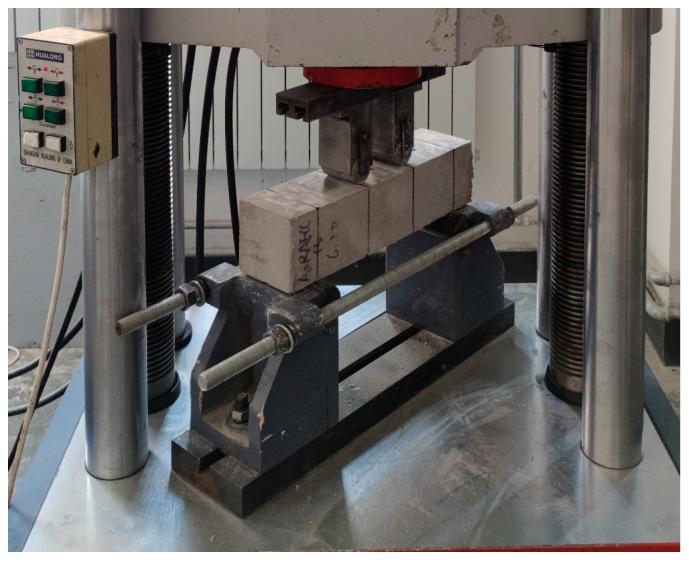

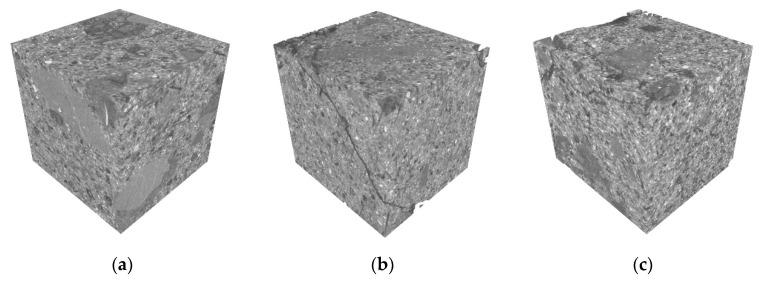

This study examined the impact of sulfate and sulfate-chloride dry-wet cyclic erosion on the mechanical properties and microscopic pore structure of engineered cementitious composite (ECC) with recycled fine aggregate (RA). Uniaxial tensile tests and four-point bending tests were conducted to evaluate the mechanical properties of RAECC, while the resonance frequency ratio was used to assess the integrity of the specimens. Finally, X-ray computed tomography (X-CT) reconstruction was employed to analyze the erosion effects on the microscopic pore structure. The results showed that the uniaxial tensile strength and flexural strength of the RAECC specimens in corrosive solution first increased and then decreased, and the 5% NaSO solution caused the most serious erosion of the specimens. The resonance frequency ratio of the specimens reached the peak value when they were subjected to dry-wet cycles 15 times in the 5% NaSO solution. During the erosion process, the pore space of the specimen first decreased and then increased, and the number of pores increased. The erosion process is the result of the erosion products continuously filling and eventually destroying the pores, and the erosion damage produces a large number of new pores and poor sphericity, leading to a decline in mechanical properties.
本研究考察了硫酸盐和硫酸盐 - 氯化物干湿循环侵蚀对含有再生细骨料(RA)的工程水泥基复合材料(ECC)力学性能和微观孔隙结构的影响。进行了单轴拉伸试验和四点弯曲试验以评估再生骨料ECC(RAECC)的力学性能,同时使用共振频率比来评估试件的完整性。最后,采用X射线计算机断层扫描(X - CT)重建技术分析侵蚀对微观孔隙结构的影响。结果表明,腐蚀溶液中RAECC试件的单轴抗拉强度和抗弯强度先增加后降低,5%的NaSO溶液对试件造成的侵蚀最严重。试件在5%的NaSO溶液中进行15次干湿循环时,共振频率比达到峰值。在侵蚀过程中,试件的孔隙空间先减小后增大,孔隙数量增加。侵蚀过程是侵蚀产物不断填充并最终破坏孔隙的结果,侵蚀损伤产生大量新的孔隙且球形度差,导致力学性能下降。
