A nanoscale photonic thermal transistor for sub-second heat flow switching.

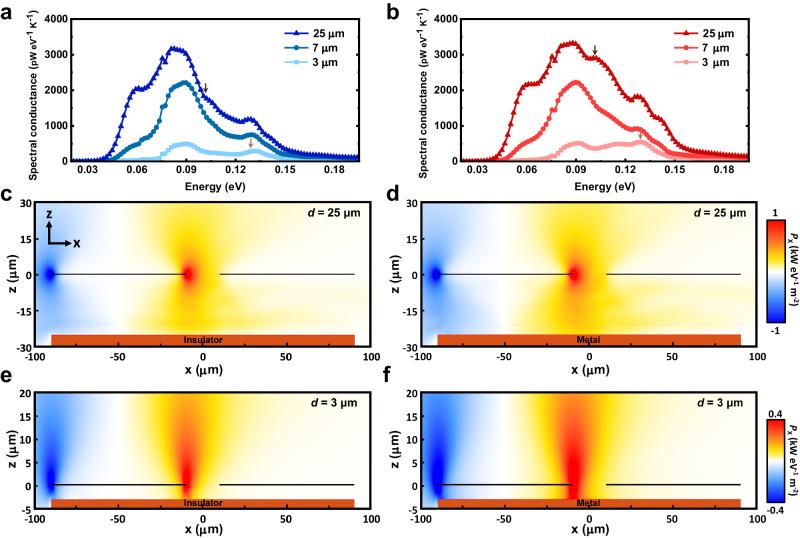

Control of heat flow is critical for thermal logic devices and thermal management and has been explored theoretically. However, experimental progress on active control of heat flow has been limited. Here, we describe a nanoscale radiative thermal transistor that comprises of a hot source and a cold drain (both are ~250 nm-thick silicon nitride membranes), which are analogous to the source and drain electrodes of a transistor. The source and drain are in close proximity to a vanadium oxide (VO)-based planar gate electrode, whose dielectric properties can be adjusted by changing its temperature. We demonstrate that when the gate is located close ( < ~1 µm) to the source-drain device and undergoes a metal-insulator transition, the radiative heat transfer between the source and drain can be changed by a factor of three. More importantly, our nanomembrane-based thermal transistor features fast switching times ( ~ 500 ms as opposed to minutes for past three-terminal thermal transistors) due to its small thermal mass. Our experiments are supported by detailed calculations that highlight the mechanism of thermal modulation. We anticipate that the advances reported here will open new opportunities for designing thermal circuits or thermal logic devices for advanced thermal management.
