BEATS：SESAME的用于同步加速器X射线显微断层扫描的光束线

BEATS: BEAmline for synchrotron X-ray microTomography at SESAME.

作者信息

Iori Gianluca, Alzu'bi Mustafa, Abbadi Anas, Al Momani Yazeed, Hasoneh Abdel Rahman, Van Vaerenbergh Pierre, Cudin Ivan, Marcos Jordi, Ahmad Abdalla, Mohammad Anas, Matalgah Salman, Foudeh Ibrahim, Al Najdawi Mohammad, Amro Adel, Ur Rehman Abid, Abugharbiyeh Mohammad, Khrais Rami, Aljadaa Amro, Nour Mohammad, Al Mohammad Hussam, Al Omari Farouq, Salama Majeda, García Fusté María José, Reyes-Herrera Juan, Morawe Christian, Attal Maher, Kasaei Samira, Chrysostomou Charalambos, Kołodziej Tomasz, Boruchowski Mateusz, Nowak Paweł, Wiechecki Jarosław, Fatima Anis, Ghigo Andrea, Wawrzyniak Adriana I, Lorentz Kirsi, Paolucci Giorgio, Lehner Frank, Krisch Michael, Stampanoni Marco, Rack Alexander, Kaprolat Axel, Lausi Andrea

机构信息

SESAME - Synchrotron-light for Experimental Science and Applications in the Middle East, Allan, Jordan.

ESRF - The European Synchrotron, Grenoble, France.

出版信息

J Synchrotron Radiat. 2024 Sep 1;31(Pt 5):1358-1372. doi: 10.1107/S1600577524005277. Epub 2024 Jul 15.

DOI:10.1107/S1600577524005277
PMID:39007825
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC11371053/
Abstract

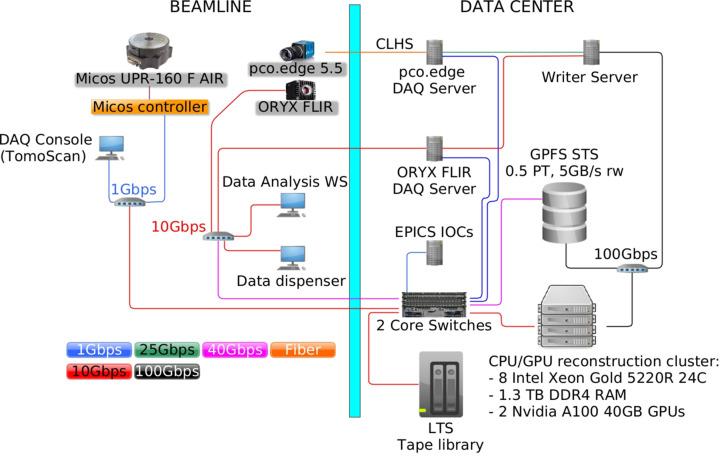

The ID10 beamline of the SESAME (Synchrotron-light for Experimental Science and Applications in the Middle East) synchrotron light source in Jordan was inaugurated in June 2023 and is now open to scientific users. The beamline, which was designed and installed within the European Horizon 2020 project BEAmline for Tomography at SESAME (BEATS), provides full-field X-ray radiography and microtomography imaging with monochromatic or polychromatic X-rays up to photon energies of 100 keV. The photon source generated by a 2.9 T wavelength shifter with variable gap, and a double-multilayer monochromator system allow versatile application for experiments requiring either an X-ray beam with high intensity and flux, and/or a partially spatial coherent beam for phase-contrast applications. Sample manipulation and X-ray detection systems are designed to allow scanning samples with different size, weight and material, providing image voxel sizes from 13 µm down to 0.33 µm. A state-of-the-art computing infrastructure for data collection, three-dimensional (3D) image reconstruction and data analysis allows the visualization and exploration of results online within a few seconds from the completion of a scan. Insights from 3D X-ray imaging are key to the investigation of specimens from archaeology and cultural heritage, biology and health sciences, materials science and engineering, earth, environmental sciences and more. Microtomography scans and preliminary results obtained at the beamline demonstrate that the new beamline ID10-BEATS expands significantly the range of scientific applications that can be targeted at SESAME.

摘要

位于约旦的中东同步辐射光实验科学与应用（SESAME）同步辐射光源的ID10光束线于2023年6月落成启用，现已向科研用户开放。该光束线是在欧洲地平线2020项目“SESAME的断层扫描光束线（BEATS）”中设计并安装的，可利用能量高达100 keV的单色或多色X射线进行全场X射线成像和显微断层扫描成像。由具有可变间隙的2.9 T波长移相器产生的光子源以及双多层单色仪系统，使该光束线能够广泛应用于需要高强度和高通量X射线束，和/或用于相衬应用的部分空间相干光束的实验。样品操纵和X射线检测系统的设计允许对不同尺寸、重量和材料的样品进行扫描，提供从13 µm到0.33 µm的图像体素尺寸。用于数据采集、三维（3D）图像重建和数据分析的先进计算基础设施，使扫描完成后几秒钟内即可在线可视化和探索结果。3D X射线成像的见解对于考古学和文化遗产、生物学和健康科学、材料科学与工程、地球与环境科学等领域的标本研究至关重要。在该光束线上获得的显微断层扫描图像和初步结果表明，新的ID10 - BEATS光束线显著扩展了SESAME能够开展的科学应用范围。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/d3fdc988eb6c/s-31-01358-fig15.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/afe565a7bef8/s-31-01358-fig1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/47bc8a9628b0/s-31-01358-fig2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/234f6d502b88/s-31-01358-fig3.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/8a05f540c9e9/s-31-01358-fig4.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/d192b1f99030/s-31-01358-fig5.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/e83c89b419d1/s-31-01358-fig6.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/415b9bd9bfdf/s-31-01358-fig7.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/f122c217ca2b/s-31-01358-fig8.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/dd91e3587d34/s-31-01358-fig9.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/4eba04766a13/s-31-01358-fig10.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/377ac2babccf/s-31-01358-fig11.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/1c646643af65/s-31-01358-fig12.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/4c77527abe03/s-31-01358-fig13.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/e9382d20ea4e/s-31-01358-fig14.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/d3fdc988eb6c/s-31-01358-fig15.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/afe565a7bef8/s-31-01358-fig1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/47bc8a9628b0/s-31-01358-fig2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/234f6d502b88/s-31-01358-fig3.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/8a05f540c9e9/s-31-01358-fig4.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/d192b1f99030/s-31-01358-fig5.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/e83c89b419d1/s-31-01358-fig6.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/415b9bd9bfdf/s-31-01358-fig7.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/f122c217ca2b/s-31-01358-fig8.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/dd91e3587d34/s-31-01358-fig9.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/4eba04766a13/s-31-01358-fig10.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/377ac2babccf/s-31-01358-fig11.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/1c646643af65/s-31-01358-fig12.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/4c77527abe03/s-31-01358-fig13.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/e9382d20ea4e/s-31-01358-fig14.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/40bc/11371053/d3fdc988eb6c/s-31-01358-fig15.jpg
