在AlGaN/GaN高电子迁移率晶体管中构建环绕漏极的双栅结构以提高击穿电压。

Constructing drain surrounded double gate structure in AlGaN/GaN HEMT for boosting breakdown voltage.

作者信息

Peng Zehui, Liu Huangbai, Yu Hao, Li Lei, Chang Kuan-Chang

机构信息

School of Electronic and Computer Engineering, Peking University Shenzhen 518055 China

出版信息

RSC Adv. 2024 Jul 15;14(31):22238-22243. doi: 10.1039/d4ra03508a. eCollection 2024 Jul 12.

Abstract

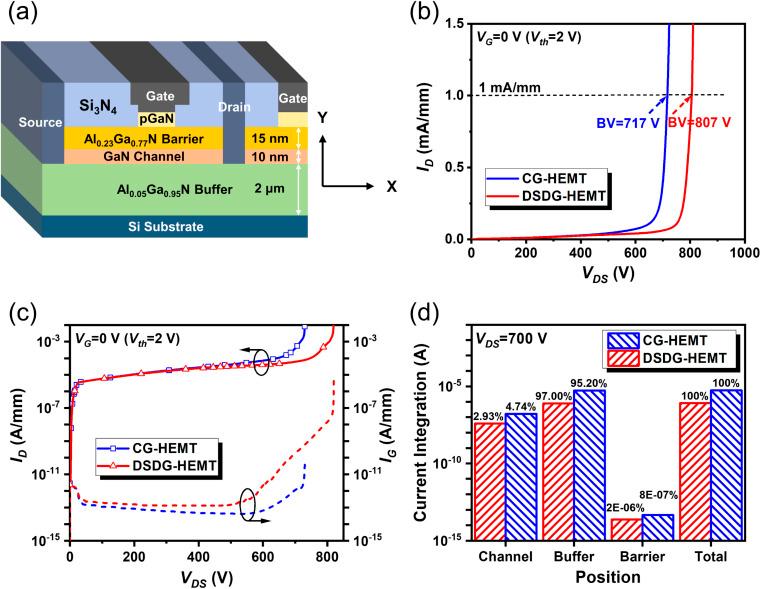

AlGaN/GaN high electron mobility transistors (HEMTs) play an important role in the field of high-voltage and high-frequency power devices. However, the current collapse effect of the HEMTs under high voltage greatly limits the development of AlGaN/GaN HEMTs. In this work, a breakdown performance enhanced drain surrounded double gate (DSDG) AlGaN/GaN HEMT is investigated. This structure has two separate gates located on the right and the left of the drain. The optimized off-state characteristics are analyzed by the Sentaurus TCAD simulation tool. The additional gate contributes to restraining the movement of electrons injected by the source therefore reducing the source-to-drain punch-through current. Moreover, the energy band pulled up by the relatively low voltage of the right gate helps to alleviate the drain induced barrier lower (DIBL) effect. As a result, DSDG-HEMT could postpone the breakdown by approximately 100 V through suppressing buffer leakage.

摘要

氮化铝镓/氮化镓高电子迁移率晶体管(HEMT)在高压和高频功率器件领域发挥着重要作用。然而,HEMT在高压下的电流崩塌效应极大地限制了氮化铝镓/氮化镓HEMT的发展。在这项工作中,研究了一种击穿性能增强的漏极包围双栅(DSDG)氮化铝镓/氮化镓HEMT。这种结构在漏极的左右两侧有两个独立的栅极。通过Sentaurus TCAD模拟工具分析了优化后的关态特性。额外的栅极有助于抑制源极注入电子的移动,从而降低源漏穿通电流。此外,右侧栅极相对较低的电压所引起的能带提升有助于减轻漏极感应势垒降低(DIBL)效应。结果,DSDG-HEMT通过抑制缓冲层泄漏可将击穿电压推迟约100V。
