用于脑血流恢复的大源探测器间距时域扩散相关光谱学

Time-domain diffuse correlation spectroscopy at large source detector separation for cerebral blood flow recovery.

作者信息

Mogharari Neda, Wojtkiewicz Stanisław, Borycki Dawid, Liebert Adam, Kacprzak Michał

机构信息

Nalecz Institute of Biocybernetics and Biomedical Engineering, Polish Academy of Sciences, Poland.

Institute of Physical Chemistry, Polish Academy of Sciences, Kasprzaka 44/52, Poland.

出版信息

Biomed Opt Express. 2024 Jun 26;15(7):4330-4344. doi: 10.1364/BOE.523514. eCollection 2024 Jul 1.

Abstract

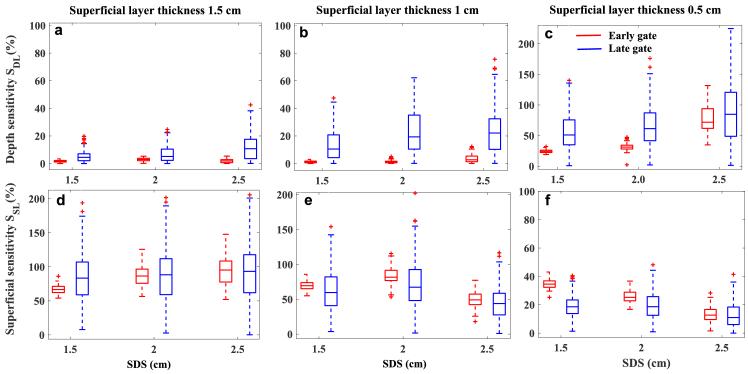

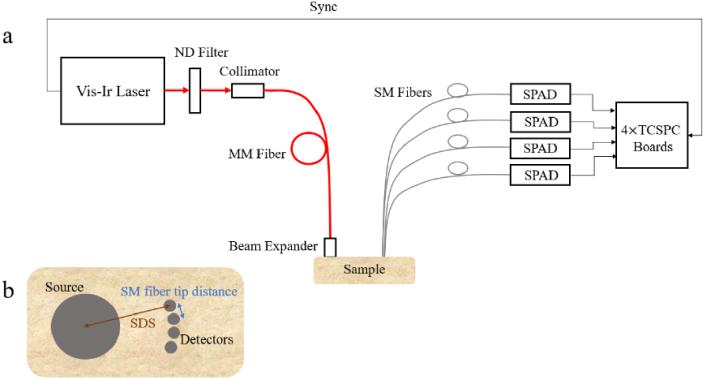

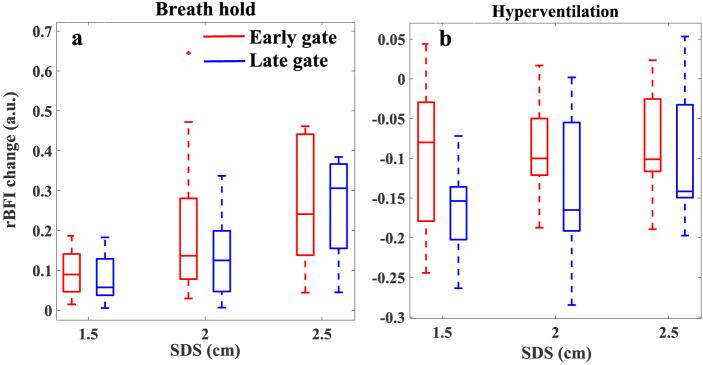

Time-domain diffuse correlation spectroscopy (td-DCS) enables the depth discrimination in tissue's blood flow recovery, considering the fraction of photons detected with higher time of flight (TOF) and longer pathlength through the tissue. However, the recovery result depends on factors such as the instrument response function (IRF), analyzed TOF gate start time, gate width and the source-detector separation (SDS). In this research we evaluate the performance of the td-DCS technique at three SDSs of 1.5, 2 and 2.5 cm to recover cerebral blood flow (CBF). To do that we presented comprehensive characterization of the td-DCS system through a series of phantom experiments. First by quality metrices such as coefficient of variation and contrast-to-noise ratios, we identified optimal time gate(s) of the TOF to extract dynamics of particles. Then using sensitivity metrices, each SDS ability to detect dynamics of particles in superficial and deeper layer was evaluated. Finally, td-DCS at each SDS was tested on healthy volunteers during cuff occlusion test and breathing tasks. According to phantom measurements, the sensitivity to estimate perfusion within the deep layer located at depth of 1.5 cm from the surface can be increased more than two times when the SDS increases from 1.5 cm to 2.5 cm.

摘要

时域扩散相关光谱技术(td-DCS)能够在组织的血流恢复过程中实现深度分辨,这是通过考虑具有较长飞行时间(TOF)和更长组织穿透路径长度的光子比例来实现的。然而,恢复结果取决于诸如仪器响应函数(IRF)、分析的TOF门起始时间、门宽度以及源探测器间距(SDS)等因素。在本研究中,我们评估了td-DCS技术在1.5、2和2.5 cm这三个SDS值下恢复脑血流(CBF)的性能。为此,我们通过一系列体模实验对td-DCS系统进行了全面表征。首先,通过诸如变异系数和对比噪声比等质量指标,我们确定了TOF的最佳时间门,以提取粒子的动态信息。然后,使用灵敏度指标,评估了每个SDS在检测浅层和深层粒子动态方面的能力。最后,在健康志愿者身上进行袖带阻断试验和呼吸任务时,对每个SDS下的td-DCS进行了测试。根据体模测量结果,当SDS从1.5 cm增加到2.5 cm时,对位于距表面1.5 cm深度处深层灌注的估计灵敏度可提高两倍以上。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/727b/11249683/3b755c5e3a77/boe-15-7-4330-g001.jpg
