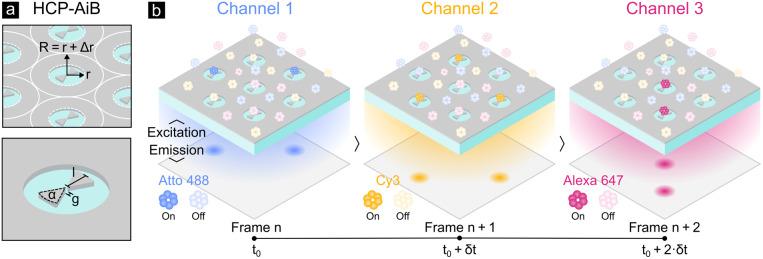

Nanophotonic biosensors offer exceptional sensitivity in the presence of strong background signals by enhancing and confining light in subwavelength volumes. In the field of nanophotonic biosensors, antenna-in-box (AiB) designs consisting of a nanoantenna within a nanoaperture have demonstrated remarkable single-molecule fluorescence detection sensitivities under physiologically relevant conditions. However, their full potential has not yet been exploited as current designs prohibit insightful correlative multicolor single-molecule studies and are limited in terms of throughput. Here, we overcome these constraints by introducing aluminum-based hexagonal close-packed AiB (HCP-AiB) arrays. Our approach enables the parallel readout of over 1000 HCP-AiBs with multicolor single-molecule sensitivity up to micromolar concentrations using an alternating three-color excitation scheme and epi-fluorescence detection. Notably, the high-density HCP-AiB arrays not only enable high-throughput studies at micromolar concentrations but also offer high single-molecule detection probabilities in the nanomolar range. We demonstrate that robust and alignment-free correlative multicolor studies are possible using optical fiducial markers even when imaging in the low millisecond range. These advancements pave the way for the use of HCP-AiB arrays as biosensor architectures for high-throughput multicolor studies on single-molecule dynamics.
