High-resolution oblique coronal MRI at optimal flexed-knee angle: a novel imaging method for enhanced anterior cruciate ligament tear diagnosis.

BACKGROUND

The accuracy of traditional knee MR imaging in diagnosing anterior cruciate ligament tears, especially partial tears, is relatively low, which may lead to misdiagnosis and missed diagnosis. This study aimed to assess the diagnostic performance of a novel imaging method, high-resolution oblique coronal MRI at an optimal flexed-knee Angle, for ACL tears.

METHODS

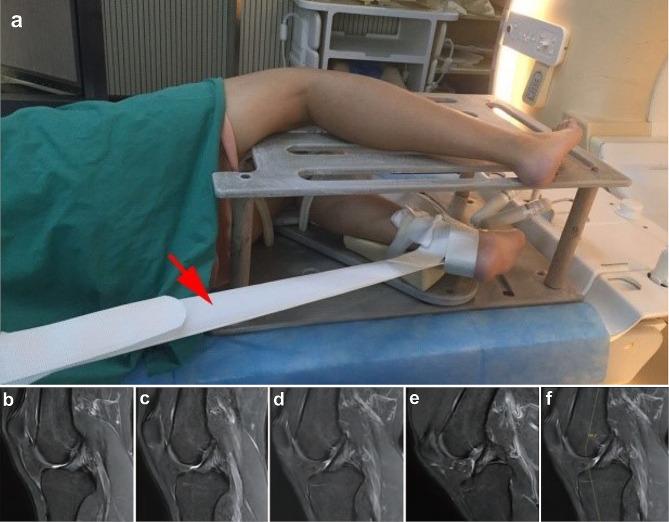

50 healthy volunteers were scanned with a scan-assisted device for the optimal flexion angle of ACL. For 92 knee trauma patients selected strictly according to inclusion and exclusion criteria, conventional extended-knee scans (control group) and high-resolution oblique coronal scans based on the optimal flexed-knee angle (experimental group) were conducted. Two observers rated ACL visibility blindly on a 5-point scale. Arthroscopy-defined outcomes determined diagnostic metrics for each method and sensitivity, specificity, positive predictive value, negative predictive value and accuracy were calculated.

RESULTS

The average optimal flexion angle for healthy volunteers was approximately 30° (30.3° ± 5.0°). Imaging demonstrated complete visualization of the ACL in 96.7% of images in the experimental group versus 12.0% in the control group. The diagnostic indicators of the experimental group surpassed those of the control group: sensitivity (94.9% vs. 76.3%), specificity (97.0% vs. 81.8%), positive predictive value (98.2% vs. 88.2%), negative predictive value(91.4% vs. 65.9%), and accuracy (95.7% vs. 78.3%). ROC analysis indicated superior diagnostic performance in the experimental group, with an AUC of 0.945 compared with 0.776 for the control group (p < 0.0001).

CONCLUSIONS

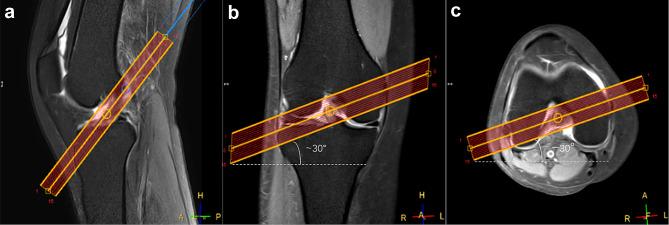

High-resolution oblique coronal imaging at the optimal 30° flexed-knee angle improved ACL visualization and diagnostic performance compared with conventional techniques.
