腰椎融合手术后使用棒插入钳(说服器)减少内固定失败的技术要点:德国的一项生物力学尸体研究

Technical aspects of rod-insertion forceps (persuader) application in reducing construct failure after lumbar spine fusion surgery: a biomechanical cadaveric study in Germany.

作者信息

Kernich Nikolaus, Heck Vincent J, Ott Nadine, Prescher Andreas, Eysel Peer, Vinas-Rios Juan Manuel

机构信息

Department of Orthopaedics and Traumatology, University of Cologne Faculty of Medicine, Cologne, Germany.

Department of Spine Surgery, Sana Klinikum Offenbach, Offenbach am Main, Germany.

出版信息

Asian Spine J. 2024 Aug;18(4):493-499. doi: 10.31616/asj.2024.0073. Epub 2024 Aug 8.

Abstract

STUDY DESIGN

A prospective experimental study.

PURPOSE

This biomechanical in vitro study aimed to examine the extent to which the use of a rod persuader (RP) leads to additional mechanical stress on the screw-rod system and determine its influence on the bony anchoring of primary pedicle screws.

OVERVIEW OF LITERATURE

Degenerative spine diseases and deformities are the most common indications for the stabilization and fusion of spinal segments. The pedicle screw-rod system is considered the gold standard for dorsal stabilization, and an RP is also increasingly being considered to fit the spondylodesis material.

METHODS

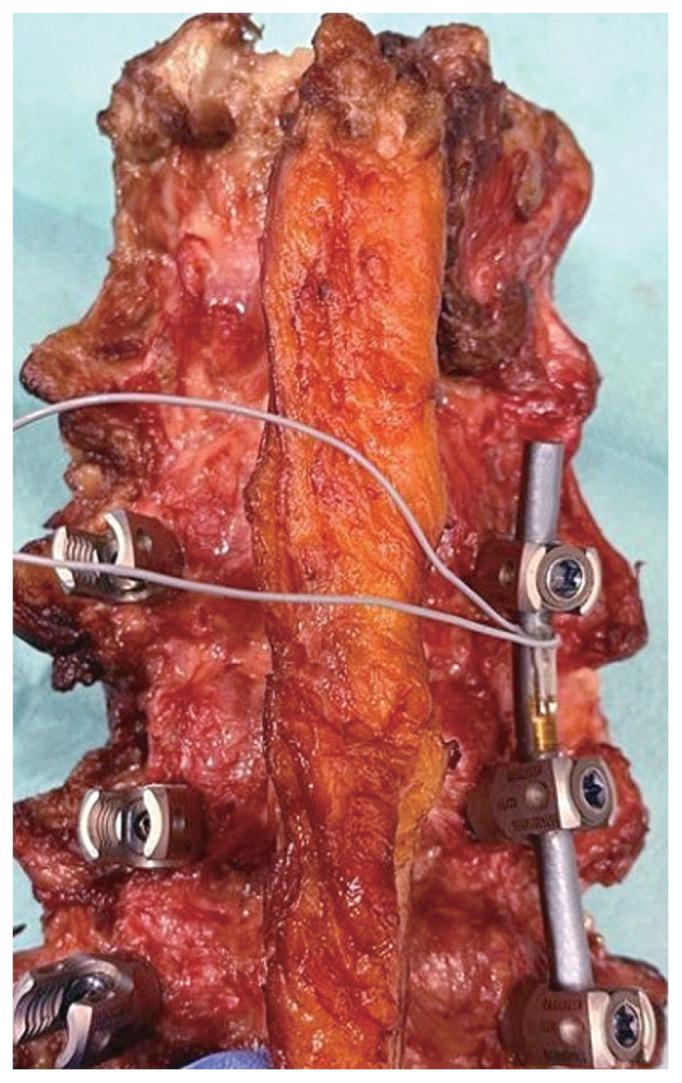

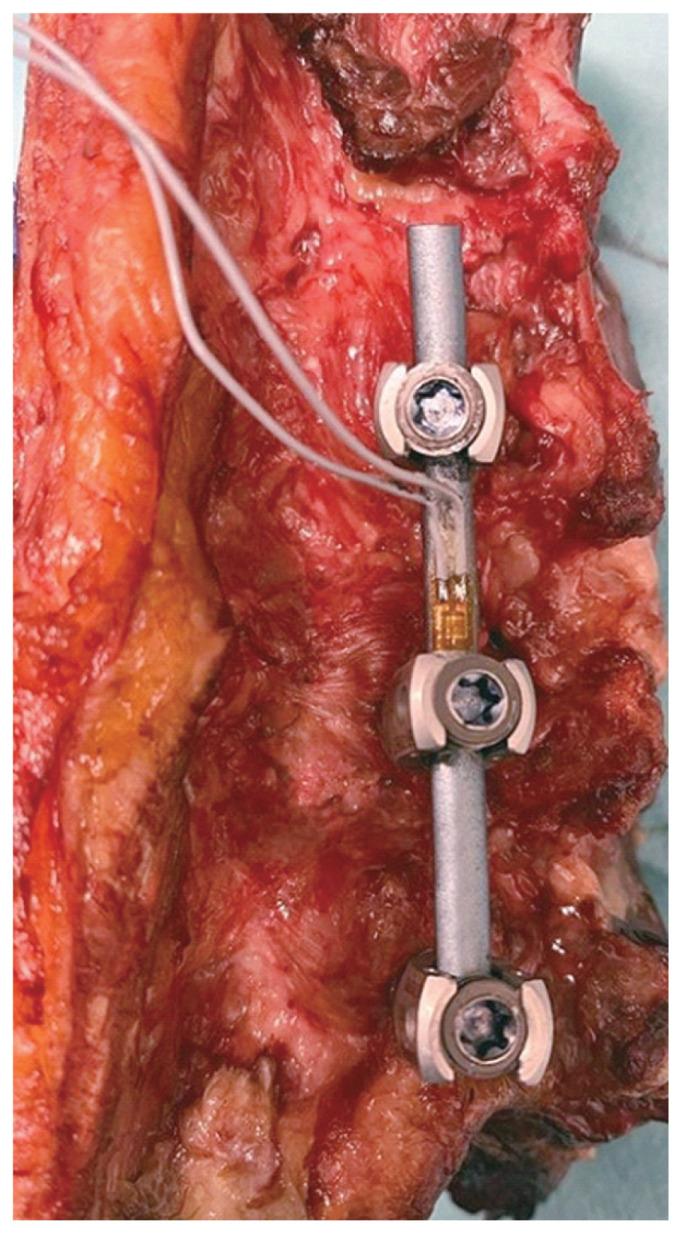

Ten lumbar spines from body donors were examined. Bisegmental dorsal spinal lumbar interbody fusion of the L3-L5 segments was performed using a pedicle screw-rod system (ROCCIA Multi-LIF Cage; Silony Medical, Germany). In group 1, the titanium rod was inserted without tension, whereas in group 2, the rod was attached to the pedicle screws at the L4 and L5 levels, creating a 5-mm gap. To attach the rod, the RP was used to press the rod into the pedicle screw. The rod was left in place for 30 minutes and then removed.

RESULTS

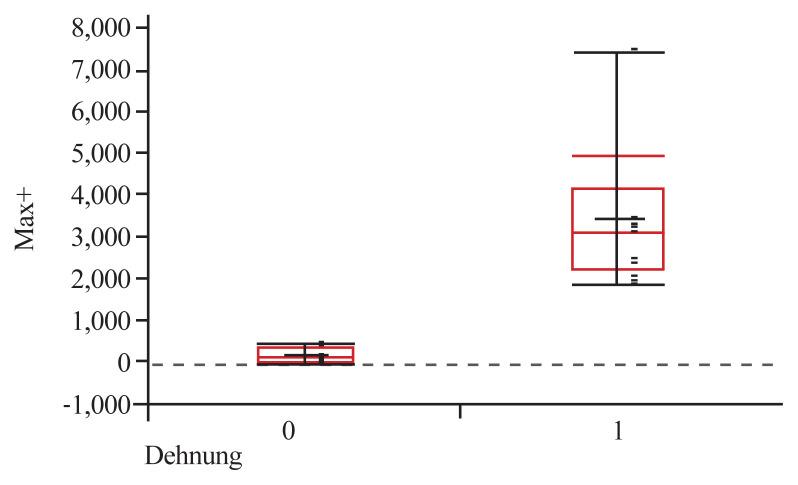

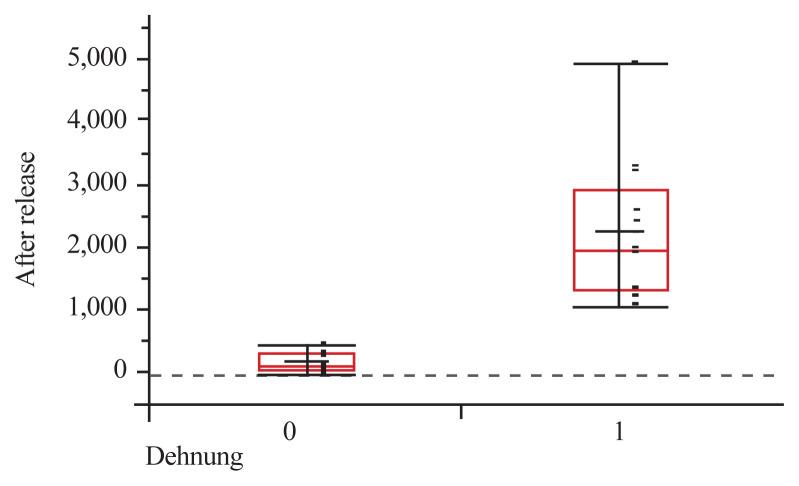

The rod reduction technique significantly increased the mechanical load on the overall construct measured by strain gauges (p<0.05) and resulted in outright implant failure with pedicle screw pullout in 88.9%.

CONCLUSIONS

In cases where the spondylodesis material is not fully attached within the pedicle screw, an RP can be used with extreme caution, particularly in osteoporotic bones, to avoid pedicle screw avulsion and screw anchor failure.

摘要

研究设计

前瞻性实验研究。

目的

本体外生物力学研究旨在探讨使用棒推进器(RP)会在多大程度上给螺钉-棒系统带来额外的机械应力,并确定其对初次椎弓根螺钉骨锚固的影响。

文献综述

退行性脊柱疾病和畸形是脊柱节段稳定与融合最常见的适应证。椎弓根螺钉-棒系统被认为是后路稳定的金标准,并且RP也越来越多地被考虑用于适配脊柱融合材料。

方法

对来自尸体供体的10个腰椎进行检查。使用椎弓根螺钉-棒系统(ROCCIA多节段腰椎椎间融合器;德国Silony Medical公司)对L3-L5节段进行双节段后路腰椎椎间融合术。在第1组中,钛棒无张力插入,而在第2组中,在L4和L5水平将棒连接到椎弓根螺钉上,形成5毫米的间隙。为了连接棒,使用RP将棒压入椎弓根螺钉。棒留置30分钟后取出。

结果

棒复位技术显著增加了用应变片测量的整个结构上的机械负荷(p<0.05),并导致88.9%的病例出现椎弓根螺钉拔出导致的植入物完全失败。

结论

在脊柱融合材料未完全固定在椎弓根螺钉内的情况下,使用RP时应极其谨慎,尤其是在骨质疏松性骨中,以避免椎弓根螺钉撕脱和螺钉锚固失败。
