PURPOSE

Segmentation of ovarian/adnexal masses from surrounding tissue on ultrasound images is a challenging task. The separation of masses into different components may also be important for radiomic feature extraction. Our study aimed to develop an artificial intelligence-based automatic segmentation method for transvaginal ultrasound images that (1) outlines the exterior boundary of adnexal masses and (2) separates internal components.

APPROACH

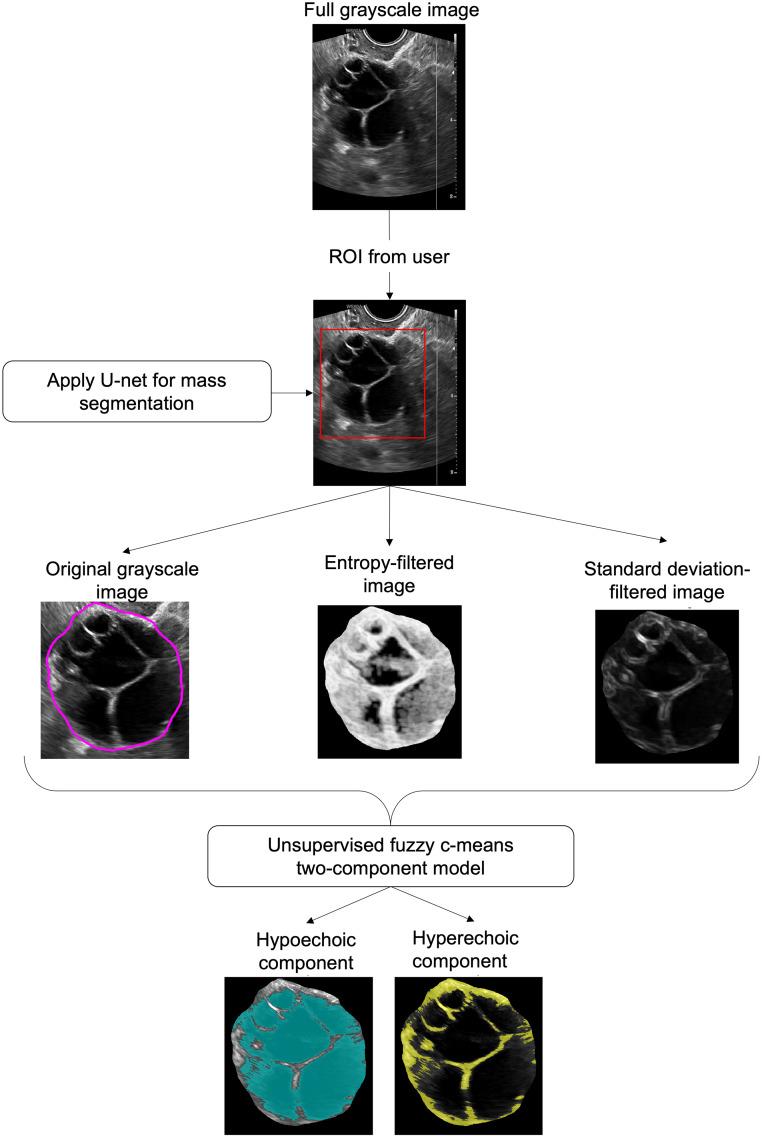

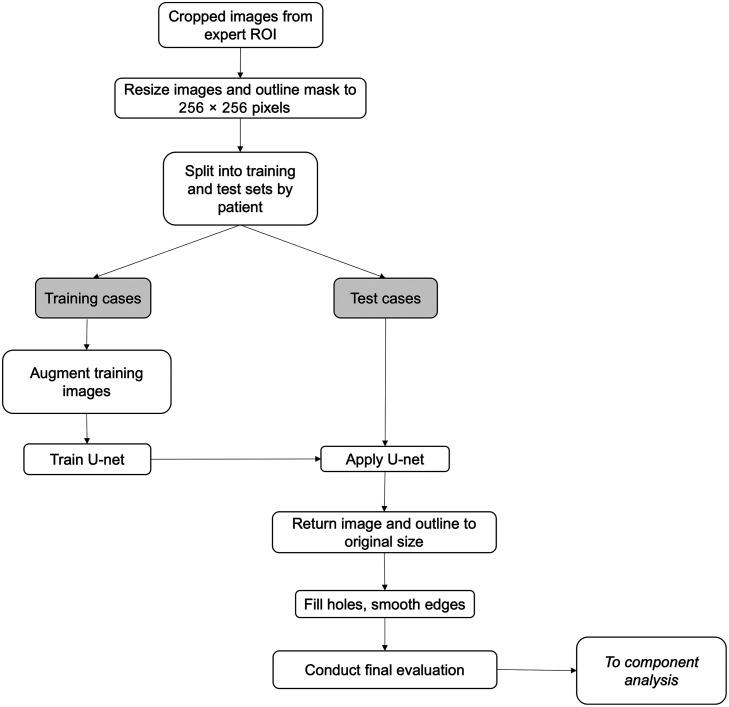

A retrospective ultrasound imaging database of adnexal masses was reviewed for exclusion criteria at the patient, mass, and image levels, with one image per mass. The resulting 54 adnexal masses (36 benign/18 malignant) from 53 patients were separated by patient into training (26 benign/12 malignant) and independent test (10 benign/6 malignant) sets. U-net segmentation performance on test images compared to expert detailed outlines was measured using the Dice similarity coefficient (DSC) and the ratio of the Hausdorff distance to the effective diameter of the outline ( ) for each mass. Subsequently, in discovery mode, a two-level fuzzy c-means (FCM) unsupervised clustering approach was used to separate the pixels within masses belonging to hypoechoic or hyperechoic components.

RESULTS

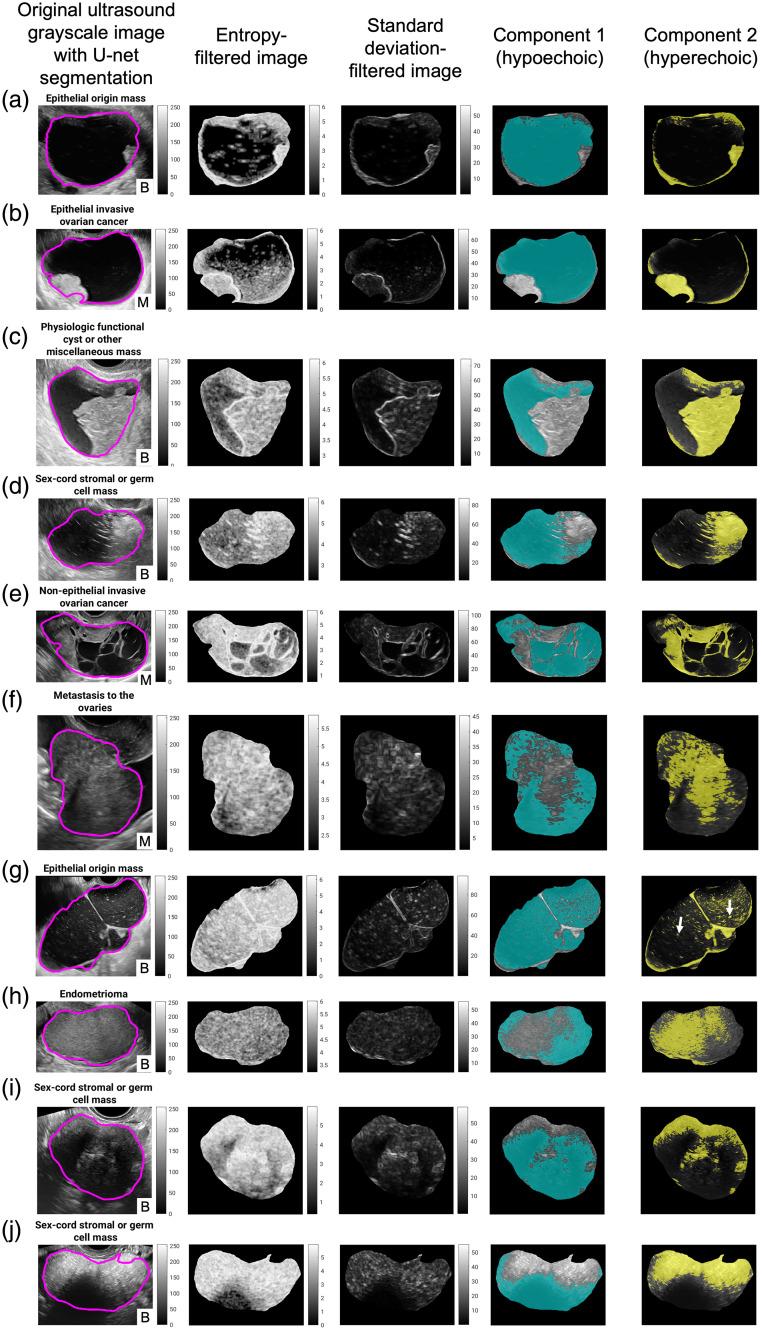

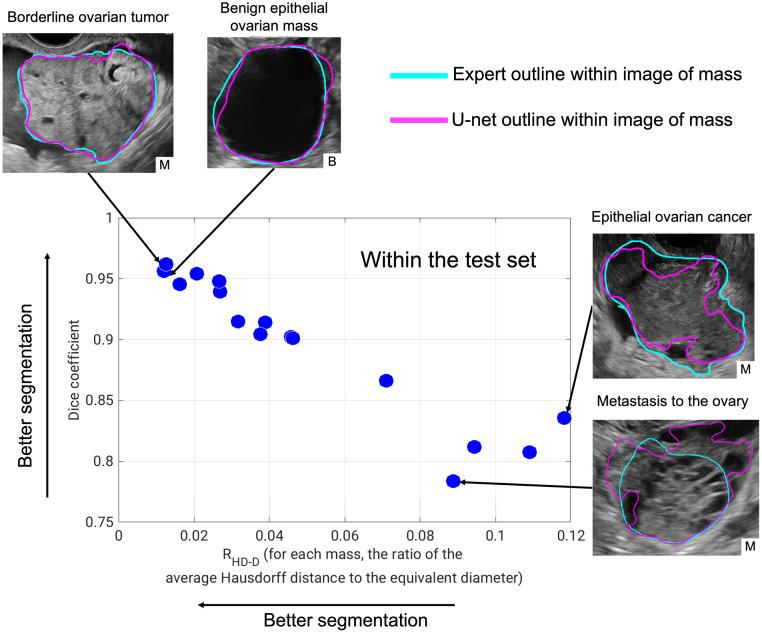

The DSC (median [95% confidence interval]) was 0.91 [0.78, 0.96], and was 0.04 [0.01, 0.12], indicating strong agreement with expert outlines. Clinical review of the internal separation of masses into echogenic components demonstrated a strong association with mass characteristics.

CONCLUSION

A combined U-net and FCM algorithm for automatic segmentation of adnexal masses and their internal components achieved excellent results compared with expert outlines and review, supporting future radiomic feature-based classification of the masses by components.
