用于骨科植入应用的在不锈钢基底上电泳沉积聚乙烯醇、碳氢纳米棒以及辣木。

Electrophoretic deposition of polyvinyl alcohol, C-H NRs along with moringa on an SS substrate for orthopedic implant applications.

作者信息

Ghazanfar Esha, Marwat Mohsin Ali, Batool Syeda Ammara, Anwar Areeb, Abdullah Syed Muhammad, Din Zia Ud, Humayun Muhammad, Bououdina Mohamed, Abo-Elnasr Al-Badrawy, Ali Hafiz Tauqeer

机构信息

Department of Materials Science and Engineering, Ghulam Ishaq Khan (GIK) Institute of Engineering Sciences and Technology Topi 23640 Pakistan

Materials Engineering Research Institute, Sheffield Hallam University Sheffield UK.

出版信息

RSC Adv. 2024 Aug 23;14(37):26775-26787. doi: 10.1039/d4ra03931a. eCollection 2024 Aug 22.

Abstract

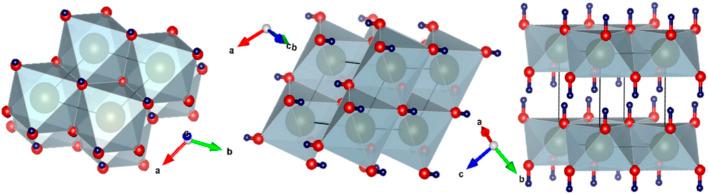

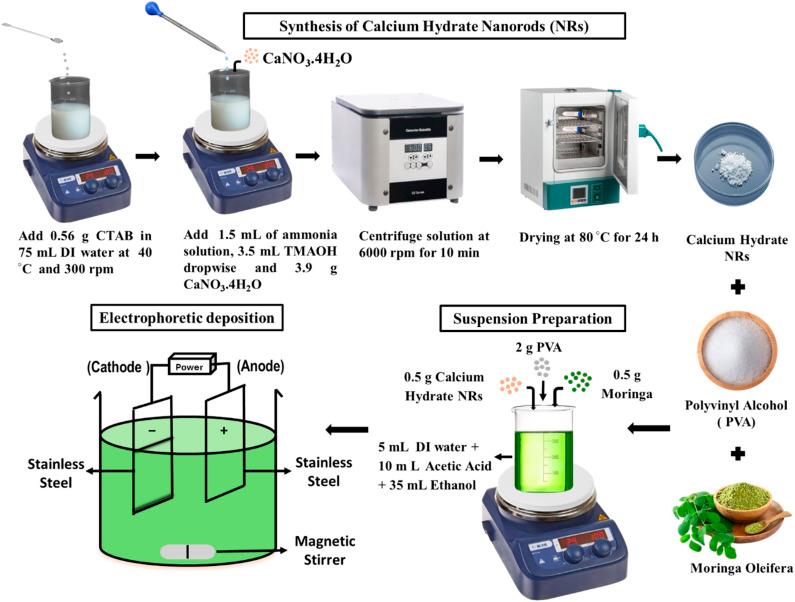

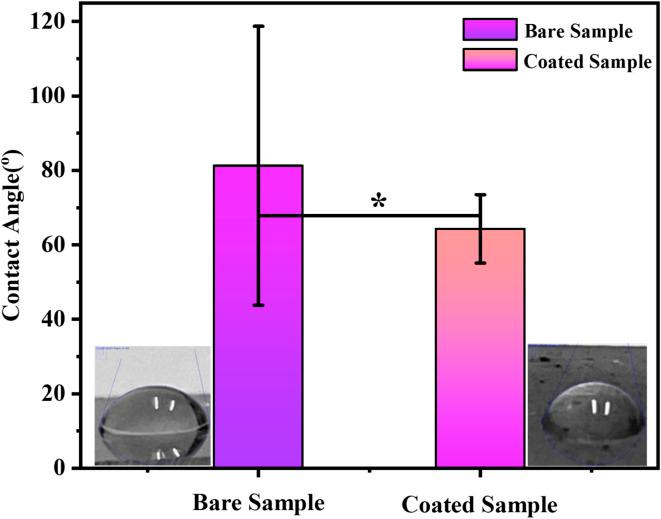

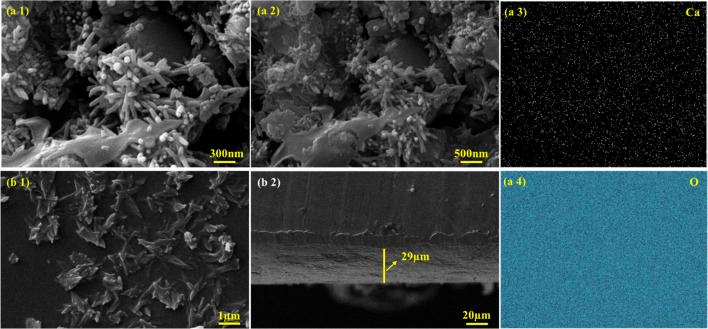

Metals are commonly used in bone implants due to their durability and load-bearing capabilities, yet they often suffer from biofilm growth and corrosion. To overcome these challenges, implants with enhanced biocompatibility, bioactivity, and antimicrobial properties are preferred. Stainless steel (SS) implants are widely favored in orthopedics for their mechanical strength and cost-effectiveness. To address the issues related to SS implants, we developed composite coatings using synthetic biopolymer polyvinyl alcohol (PVA), calcium hydrate (C-H) nanorods for improved bioactivity and antibacterial properties, and to enhance osteogenic induction. These coatings were deposited on 316L SS through electrophoretic deposition (EPD), providing protection against body fluids and enhancing the corrosion resistance of the SS. X-ray diffraction (XRD) confirmed the presence of the desired tobermorite crystal structure, while scanning electron microscopy (SEM) revealed nanorod-like C-H structures, a film thickness of 29 microns, and a hedgehog-like morphology in the composite particles. The coated sample demonstrated a contact angle of 64°, optimal for protein attachment and cellular uptake. Additionally, the coating exhibited strong adhesion with less than 5% damage observed in cross-cut hatch testing and appropriate surface roughness for protein attachment. Differential Scanning Calorimetry (DSC) and thermogravimetric analysis (TGA) assessed the thermal response of the materials. The coating also showed antibacterial activity against both Gram-negative and Gram-positive bacteria. Furthermore, the sample exhibited rapid bioactivity by forming a hydroxyapatite (HA) layer within 24 hours, with 35.4% degradability within 24 hours and 44.5% within 48 hours. These findings confirm that the composite film enhances the biocompatibility, bioactivity, and antibacterial properties of SS orthopedic implants in a cost-effective manner.

摘要

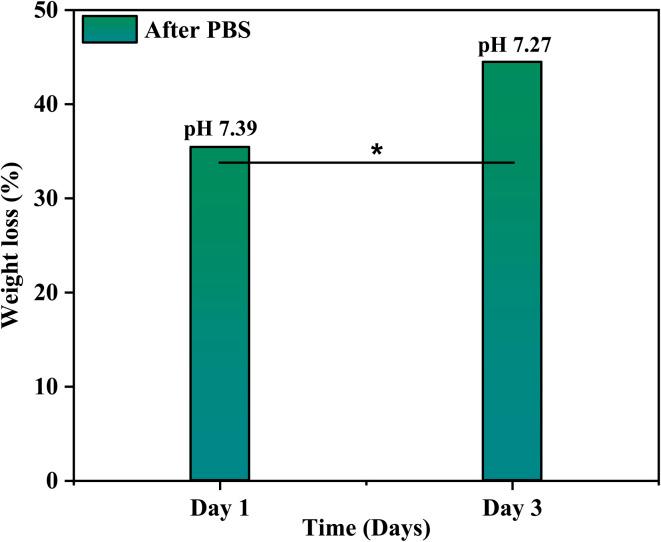

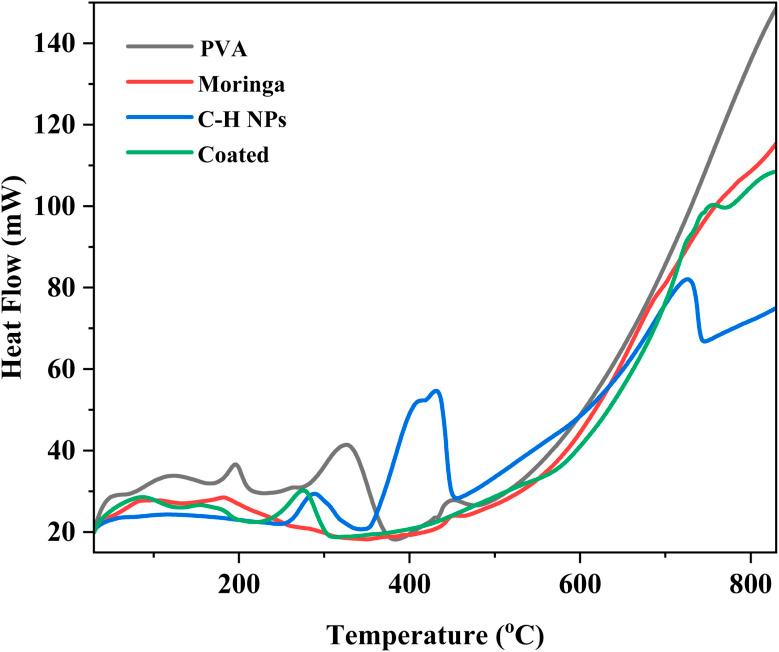

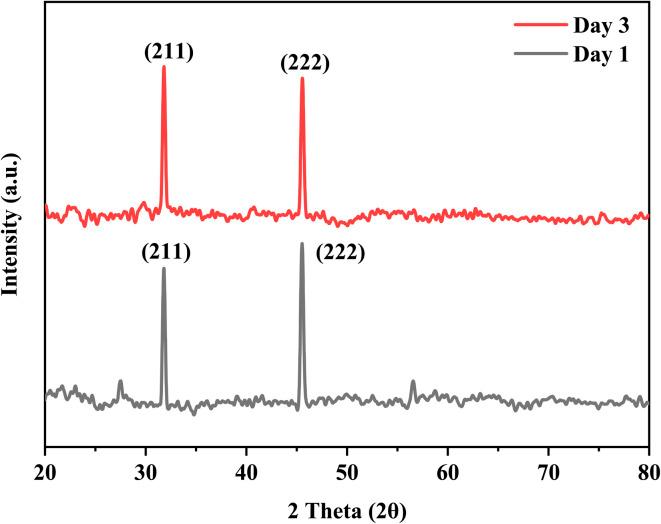

由于金属具有耐久性和承重能力,因此常用于骨植入物,但它们常常会出现生物膜生长和腐蚀问题。为了克服这些挑战,具有增强的生物相容性、生物活性和抗菌性能的植入物更受青睐。不锈钢(SS)植入物因其机械强度和成本效益而在骨科领域广受青睐。为了解决与SS植入物相关的问题,我们开发了复合涂层,使用合成生物聚合物聚乙烯醇(PVA)、水合钙(C-H)纳米棒来提高生物活性和抗菌性能,并增强成骨诱导作用。这些涂层通过电泳沉积(EPD)沉积在316L SS上,可防止体液侵蚀并提高SS的耐腐蚀性。X射线衍射(XRD)证实了所需的雪硅钙石晶体结构的存在,而扫描电子显微镜(SEM)则揭示了纳米棒状的C-H结构、29微米的膜厚度以及复合颗粒中类似刺猬的形态。涂层样品的接触角为64°,最适合蛋白质附着和细胞摄取。此外,该涂层表现出很强的附着力,在划格试验中观察到的损伤小于5%,并且具有适合蛋白质附着的表面粗糙度。差示扫描量热法(DSC)和热重分析(TGA)评估了材料的热响应。该涂层还对革兰氏阴性菌和革兰氏阳性菌均表现出抗菌活性。此外,样品通过在24小时内形成羟基磷灰石(HA)层而表现出快速的生物活性,在24小时内降解率为35.4%,在48小时内降解率为44.5%。这些发现证实,复合膜以具有成本效益的方式提高了SS骨科植入物的生物相容性、生物活性和抗菌性能。
