University of Michigan-Shanghai Jiao Tong University Joint Institute, Shanghai Jiao Tong University, Shanghai 200240, China.
Engineering Research Center of Cell & Therapeutic Antibody, Ministry of Education, and School of Pharmacy, Shanghai Jiao Tong University, Shanghai 200240, China.
ACS Appl Mater Interfaces. 2024 Nov 6;16(44):59752-59764. doi: 10.1021/acsami.4c10800. Epub 2024 Oct 24.

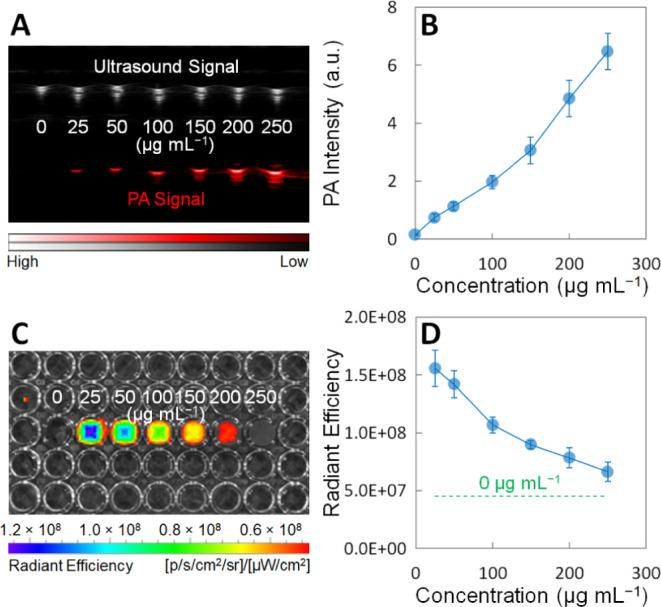

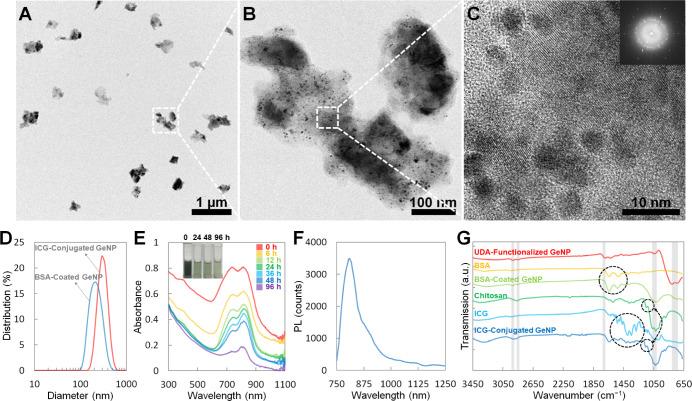

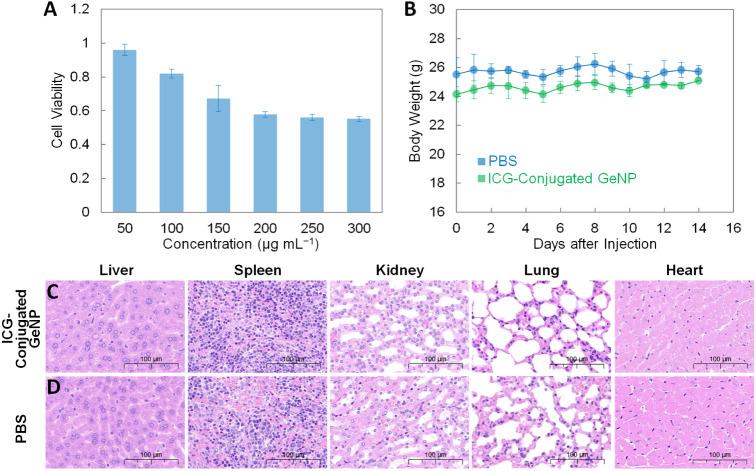

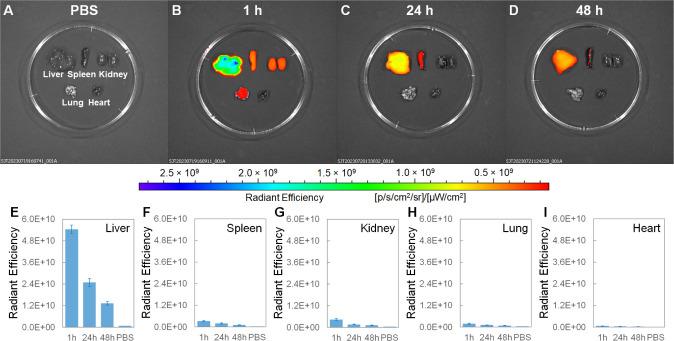

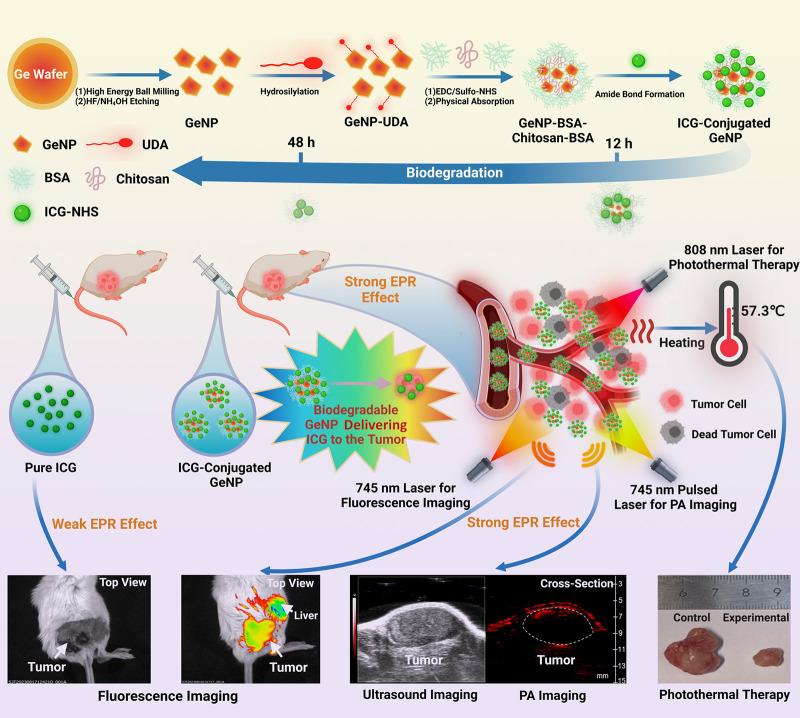

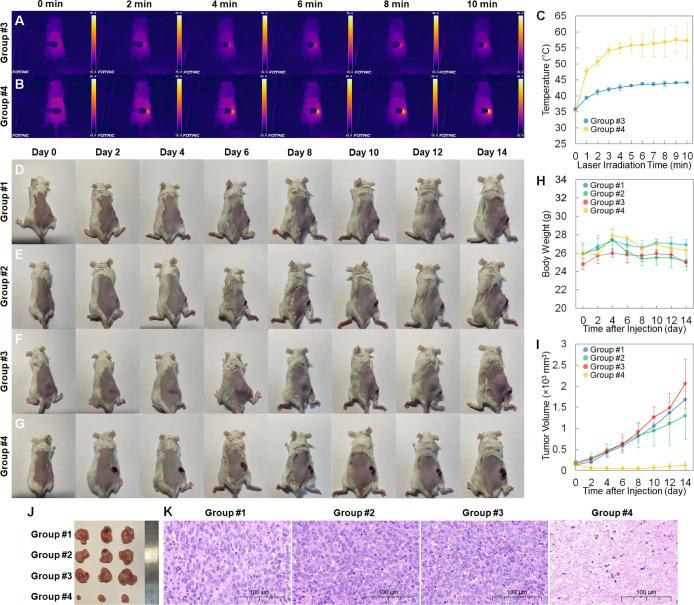

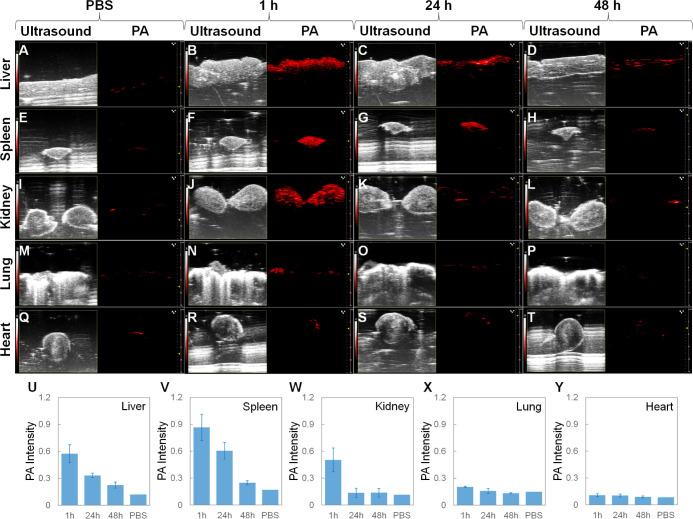

Theranostics, by integrating diagnosis and therapy on a single platform, enables real-time monitoring of tumors during treatment. To improve the accuracy of tumor diagnosis, the fluorescence and photoacoustic imaging modalities can complement each other to achieve high resolution and a deep penetration depth. Despite the superior performance, the biodegradability of theranostic agents plays a critical role in enhancing nanoparticle excretion and reducing chronic toxicity, which is essential for clinical applications. Herein, we synthesize biocompatible and biodegradable indocyanine green (ICG)-conjugated germanium nanoparticles (GeNPs) and investigate their biodistributions in nude mice and 4T1 tumor models after intravenous injections using near-infrared (NIR) dual-modality fluorescence and photoacoustic imaging. The ICG-conjugated GeNPs have strong NIR absorption due to the NIR-absorbing ICG and Ge in combination, emit strong NIR fluorescence due to the multilayered ICG coatings, and exhibit very low and toxicity. After tail vein injections, the ICG-conjugated GeNPs mainly accumulate in the liver and spleen as well as the tumor with the help of the enhanced permeability and retention effect. The tumor's fluorescence signal is much stronger than that of the control group injected with pure ICG solution, as the GeNPs can function as biodegradable carriers for efficiently delivering the ICG molecules to the tumor. Lastly, the ICG-conjugated GeNPs accumulated in the tumor can also be utilized for photothermal treatment under NIR laser irradiation, after which the tumor volume almost diminishes after 14 days. The experimental findings in this work demonstrate that the ICG-conjugated GeNPs are promising theranostic agents with exceptional biodegradability for NIR dual-modality imaging and photothermal therapy.
治疗诊断一体化的诊疗平台能够在治疗过程中实时监测肿瘤。为了提高肿瘤诊断的准确性,荧光和光声成像模式可以互补,以实现高分辨率和深穿透深度。尽管性能优越,但治疗剂的生物降解性对于增强纳米颗粒的排泄和减少慢性毒性至关重要,这对于临床应用至关重要。在此,我们合成了具有生物相容性和可生物降解性的吲哚菁绿(ICG)偶联的锗纳米颗粒(GeNPs),并通过近红外(NIR)双模态荧光和光声成像研究了它们在静脉注射后在裸鼠和 4T1 肿瘤模型中的生物分布。由于 NIR 吸收的 ICG 和 Ge 的结合,ICG 偶联的 GeNPs 具有很强的 NIR 吸收,由于多层 ICG 涂层,它们发出很强的 NIR 荧光,并且表现出非常低的 和 毒性。尾静脉注射后,ICG 偶联的 GeNPs 主要在肝脏和脾脏以及肿瘤中积累,这得益于增强的通透性和保留效应。肿瘤的荧光信号比注射纯 ICG 溶液的对照组强得多,因为 GeNPs 可以作为有效的生物降解载体,将 ICG 分子高效递送到肿瘤中。最后,在 NIR 激光照射下,积聚在肿瘤中的 ICG 偶联的 GeNPs 也可用于光热治疗,之后肿瘤体积在 14 天后几乎消失。这项工作的实验结果表明,ICG 偶联的 GeNPs 是一种很有前途的治疗诊断一体化试剂,具有出色的生物降解性,可用于 NIR 双模态成像和光热治疗。
